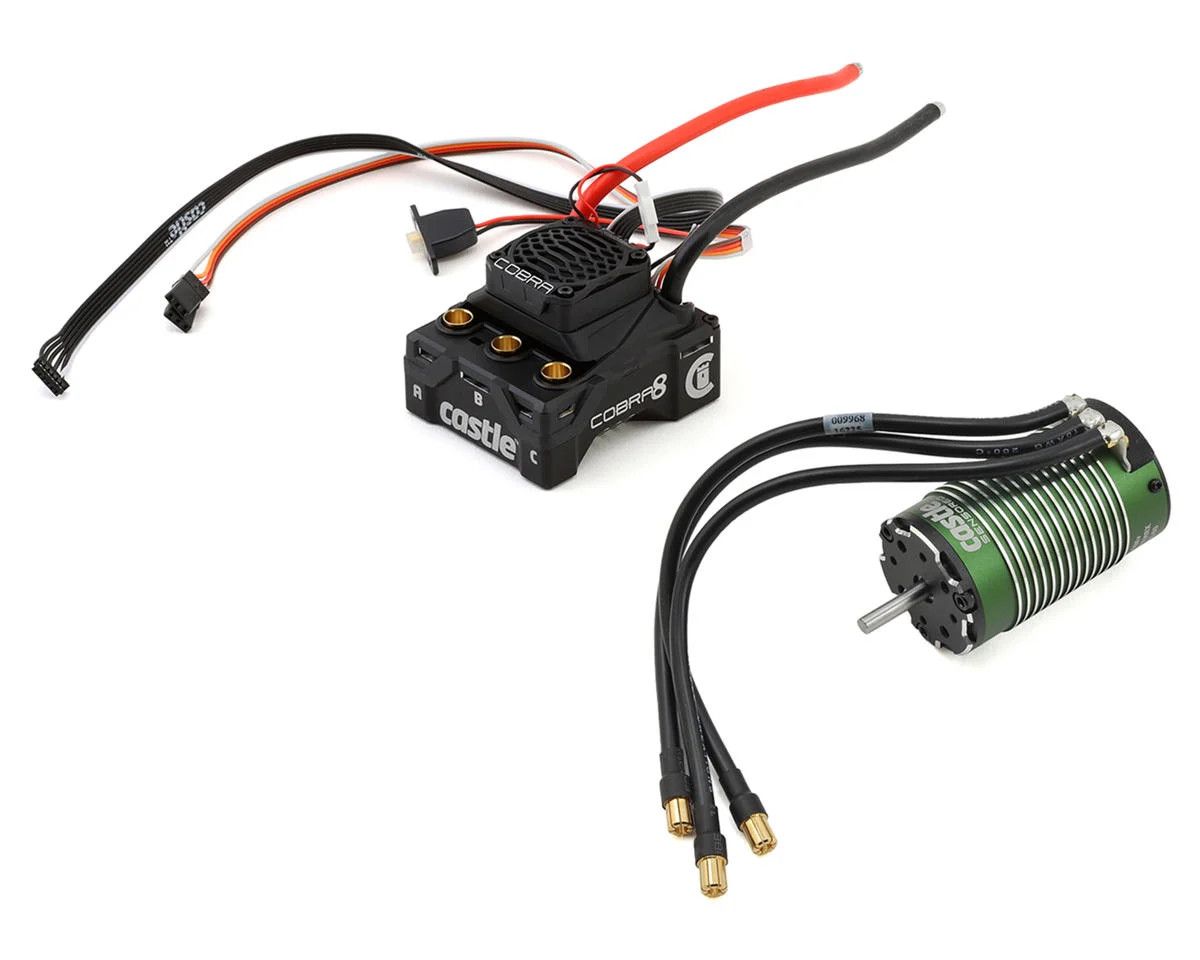

Castle Creations Cobra 8 25.2V ESC with 1512-1800Kv Sensored Motor Combo

Part Number: CSE010-0172-01

Upgrade your high-performance RC with the Castle Creations Cobra 8 ESC and 1512-1800Kv Sensored Motor Combo.

Designed for 1/8 scale off-road and on-road vehicles as well as 1/10 scale 4WD short course trucks up to 9 lbs, this combo combines Castle's Cobra 8 ESC technology with the smooth, precise power delivery of the 1512-1800Kv sensored brushless motor.

⚠️ Important Battery Voltage Information

The Cobra 8 ESC itself is capable of up to 6S LiPo; however, when used with the included 1512-1800Kv motor, this combo is limited to a MAXIMUM of 4S LiPo.

DO NOT operate the included 1512-1800Kv motor on 6S.

The included motor is designed for 3S–4S LiPo operation.

Features

• Cobra 8 waterproof 25.2V ESC
• 1512-1800Kv Sensored Brushless Motor
• SmartSense™ sensored operation
• CRYO-DRIVE™ technology
• 32-bit processing
• Enhanced onboard data logging
• Adjustable 5.0V–8.0V BEC
• 8A peak BEC output
• Temperature-controlled 30mm cooling fan
• Auxiliary wire functionality for transmitter-controlled adjustments
• Castle Link compatible for advanced tuning and firmware updates
• Castle Link V4 USB programmer included
• Optional B-LINK 2 Bluetooth programming compatibility

Includes

• (1) Castle Creations Cobra 8 ESC
• (1) Castle Creations 1512-1800Kv Sensored Brushless Motor
• (1) Castle Link V4 USB Adapter
• (1) 300mm Direct Connect Sensor Wire
• Cobra Decals
• ESC Quick Start Guide

⚠️ Battery Connector – Soldering Required

A battery connector is NOT included or pre-installed on the ESC.

The Cobra 8 is supplied with battery leads that require the installation of your preferred compatible high-current battery connector.

SOLDERING IS REQUIRED BEFORE USE.

Castle specifies a high-current connector rated for 120 amps or higher, such as Castle 6.5mm Bullet, 8.0mm Bullet, or 6.5mm Polarized connectors.

ESC Specifications

• Input Voltage: 2S–6S LiPo
• Maximum with Included Motor: 4S LiPo
• BEC Voltage: 5.0V–8.0V Adjustable
• BEC Current: 8A Peak
• Running Modes: SmartSense Brushless, Sensored Only & Brushed
• Motor Connectors: 6.5mm Female Bullets
• Dimensions: 2.36 × 2.04 × 1.69 in (60 × 52 × 43mm)
• Weight: 5.84 oz (165.6g) without battery connector
• Cooling Fan: 30mm Temperature-Controlled
• Programmable: Yes
• Data Logging: Yes

Motor Specifications

• Motor: Castle 1512 Sensored Brushless
• Kv: 1800Kv
• Input Voltage: 3S–4S LiPo
• Maximum RPM: 60,000
• Motor Connectors: 6.5mm Male Bullets
• Wire: 10-Gauge
• Shaft Diameter: 5mm
• Shaft Length: 20mm
• Motor Length: 67.7mm
• Motor Diameter: 40mm (41.4mm with cooling fins)
• Motor Weight: 13.6 oz (385g) with wires

Recommended Applications

Castle recommends this combo for:

• 1/8 Scale Off-Road Vehicles
• 1/8 Scale On-Road Vehicles
• 1/10 Scale 4WD Short Course Trucks
• Vehicles up to approximately 9 lbs
• Maximum 4S LiPo with the included motor

Always verify vehicle weight, gearing, battery voltage, drivetrain capabilities, and installation requirements before use.

Warranty Claims

Any warranty-related issues or claims must be handled directly through Castle Creations.

GOAT Hobbies does not process warranty claims for this product. Warranty eligibility, coverage, approval, replacement, or repair is determined solely by Castle Creations in accordance with their current policies and terms.

Please retain your proof of purchase, as it may be required by the manufacturer.
