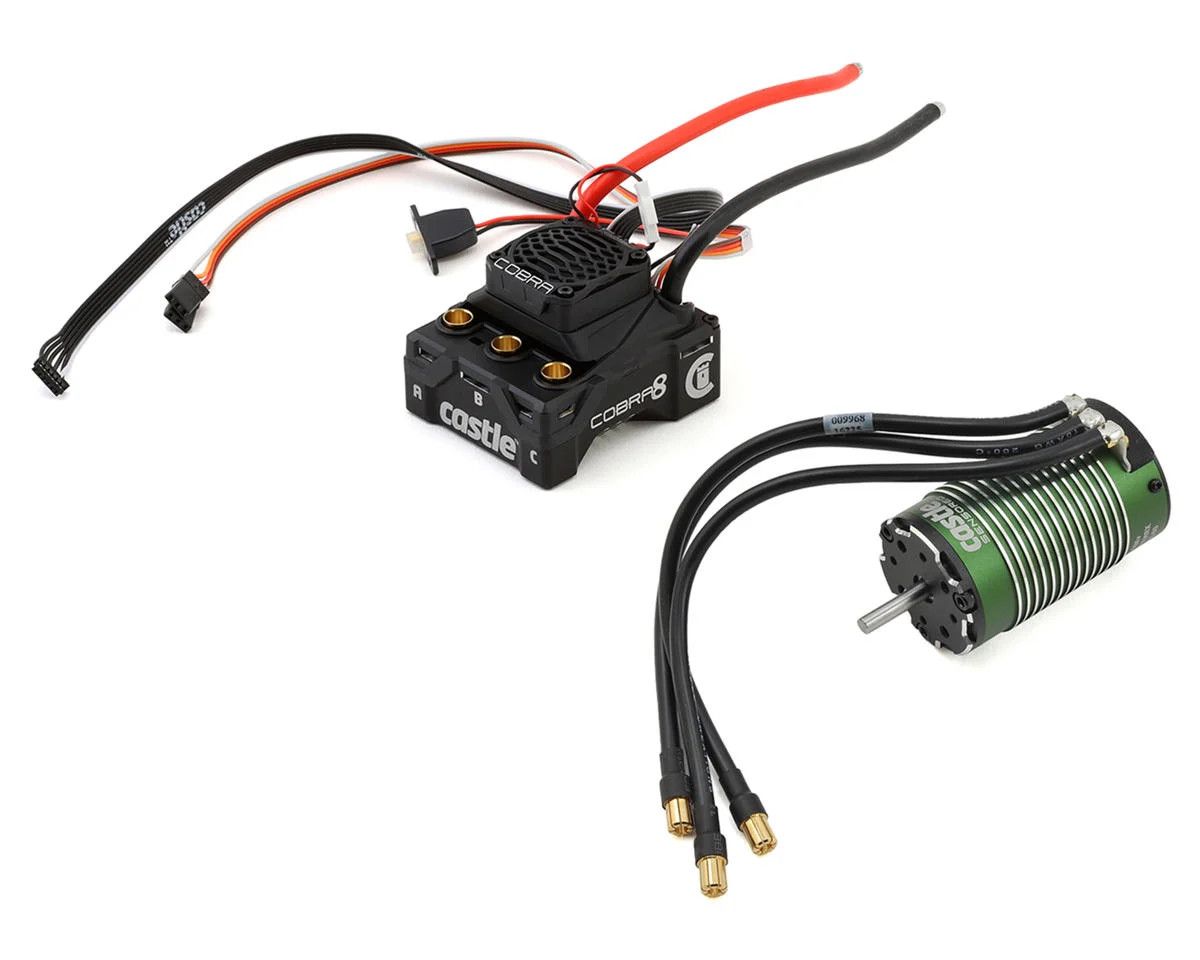

Castle Creations Cobra 8 25.2V ESC with 1512-2650Kv Sensored Motor Combo

Part Number: CSE010-0172-02

Take your high-performance RC setup to the next level with the Castle Creations Cobra 8 ESC and 1512-2650Kv Sensored Motor Combo.

Designed for high-performance 1/8 scale buggies and on-road vehicles, as well as compatible 1/10 scale monster trucks, this system combines Castle's powerful Cobra 8 ESC with the smooth and responsive performance of the 1512-2650Kv sensored brushless motor.

⚠️ Important Battery Voltage Information

The Cobra 8 ESC itself is capable of up to 6S LiPo; however, when used with the included 1512-2650Kv motor, this combo is limited to a MAXIMUM of 4S LiPo.

DO NOT operate the included 1512-2650Kv motor on 6S.

Features

• Cobra 8 25.2V ESC
• 1512-2650Kv Sensored Brushless Motor
• SmartSense™ sensored operation
• CRYO-DRIVE™ technology
• 32-bit processing
• Enhanced onboard data logging
• Adjustable 5.0V–8.0V BEC
• 8A peak BEC output
• Temperature-controlled 30mm cooling fan
• Auxiliary wire functionality
• Castle Link compatible for advanced tuning and firmware updates
• Castle Link V4 USB Adapter included

Includes

• (1) Castle Creations Cobra 8 ESC
• (1) Castle Creations 1512-2650Kv Sensored Brushless Motor
• (1) Castle Link V4 USB Adapter
• (1) 300mm Direct Connect Sensor Wire
• Cobra Decals
• ESC Quick Start Guide

⚠️ Battery Connector – Soldering Required

A battery connector is NOT included or pre-installed on the ESC.

The Cobra 8 is supplied with battery leads that require installation of your preferred compatible high-current battery connector.

SOLDERING IS REQUIRED BEFORE USE.

Castle specifies a high-current connector designed for high-powered electric systems and rated for 120 amps or higher.

ESC Specifications

• ESC Input Voltage: 2S–6S LiPo
• Maximum with Included Motor: 4S LiPo
• BEC Voltage: 5.0V–8.0V Adjustable
• BEC Current: 8A Peak
• Running Modes: SmartSense Brushless, Sensored Only & Brushed
• Motor Connectors: 6.5mm Female Bullets
• Dimensions: 2.36 × 2.04 × 1.69 in (60 × 52 × 43mm)
• Weight: 5.84 oz (165.6g) without battery connector
• Cooling Fan: 30mm Temperature-Controlled
• Programmable: Yes
• Data Logging: Yes

Motor Specifications

• Motor: Castle 1512 Sensored Brushless
• Kv: 2650Kv
• Input Voltage: 2S–4S LiPo
• Maximum RPM: 60,000
• Motor Connectors: 6.5mm Male Bullets
• Shaft Diameter: 5mm
• Motor Length: 67.7mm
• Motor Diameter: 40mm
• Motor Weight: Approx. 13.6 oz with wires

Recommended Applications

Ideal for:

• 1/8 Scale Buggies
• 1/8 Scale On-Road Vehicles
• Compatible 1/10 Scale Monster Trucks
• Vehicles up to approximately 9 lbs
• Maximum 4S LiPo with the included motor

Always verify vehicle weight, gearing, battery voltage, drivetrain capabilities, and installation requirements before use.

Warranty Claims

Any warranty-related issues or claims must be handled directly through Castle Creations.

GOAT Hobbies does not process warranty claims for this product. Warranty eligibility, coverage, approval, replacement, or repair is determined solely by Castle Creations in accordance with their current policies and terms.

Please retain your proof of purchase, as it may be required by the manufacturer.

Shipping Information

• Estimated Shipping Weight: 2.0 lb
• Estimated Shipping Dimensions: 8 × 6 × 4 in
