Traxxas Velineon VXL-3s Brushless Power System – ESC & 3500Kv Motor

Brand: Traxxas
Part Number: 3350R
System: Velineon VXL-3s
Motor: Velineon 3500Kv Brushless
ESC: VXL-3s Waterproof Electronic Speed Control
Battery Compatibility: 2S–3S LiPo / NiMH
Application: Traxxas 1/10 Performance Upgrade

Upgrade compatible Traxxas vehicles to serious brushless power with the Traxxas Velineon VXL-3s Brushless Power System.

The 3350R system combines the waterproof VXL-3s electronic speed control with the powerful Velineon 3500Kv brushless motor, delivering substantially more acceleration, speed, efficiency, and performance than a standard brushed power system.

Depending on the vehicle, battery, and gearing combination, the Velineon system can unlock 60+ MPH and even 70+ MPH performance in compatible Traxxas models.

Key Features

• Complete Velineon VXL-3s Brushless Power System
• VXL-3s Waterproof Brushless ESC
• Velineon 3500Kv Brushless Motor
• Compatible with 2S and 3S LiPo
• Also Supports Compatible NiMH Batteries
• Built-In LiPo Low-Voltage Detection
• Forward / Brake / Reverse
• Sport, Race & Training Driving Modes
• Two-Stage Thermal Protection
• Traxxas High-Current Battery Connector
• 12-Gauge Maxx Cable
• Factory-Style Traxxas Installation
• Speed Control Mounting Plate Included
• Designed for Extreme Traxxas Performance

VXL-3s Electronic Speed Control

The VXL-3s waterproof ESC is designed to deliver the high current required for serious brushless performance while remaining easy to operate.

Built-in Low-Voltage Detection protects LiPo batteries from excessive discharge, while two-stage thermal protection helps protect the system during demanding operation.

ESC Specifications

Input Voltage: 4.8–11.1V
LiPo Compatibility: 2S–3S
NiMH Compatibility: 4–9 Cells
Continuous Current: 200A
Peak Current: 320A
BEC Voltage: 6.0V DC
Motor Type: Brushless
Battery Connector: Traxxas High-Current Connector
Motor Connectors: TRX 3.5mm Bullet Connectors
Wiring: 12-Gauge Maxx Cable
Protection: Two-Stage Thermal Shutdown

Velineon 3500Kv Brushless Motor

The included Velineon 3500Kv brushless motor provides strong acceleration, high RPM capability, and efficient power delivery for a wide range of compatible Traxxas vehicles.

Matched with the VXL-3s ESC and a compatible 3S LiPo battery, the system can transform the performance of a brushed Traxxas vehicle.

Serious Speed Potential

Vehicle speed depends on the specific model, battery, gearing, tires, and operating conditions.

On compatible Traxxas vehicles, the Velineon VXL-3s system can deliver 60+ MPH performance, with certain applications capable of 70+ MPH when equipped with the appropriate 3S LiPo battery and gearing.

Always follow the gearing and battery recommendations for your specific vehicle.

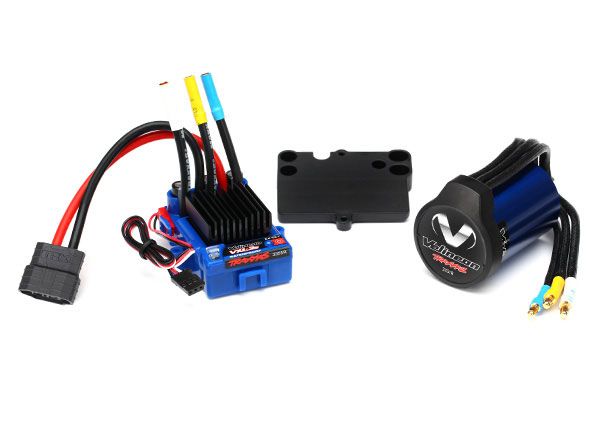

What's Included

• (1) Traxxas VXL-3s Waterproof Brushless ESC
• (1) Traxxas Velineon 3500Kv Brushless Motor
• (1) Speed Control Mounting Plate
• Installation Components as Supplied by Traxxas

Important

Battery and charger are NOT included.

Actual top speed varies significantly depending on the vehicle, battery, gearing, tire size, and setup. High-speed gearing may be required depending on the application.

Always verify compatibility and recommended gearing for your specific Traxxas model before installation.

Pictures are for reference only. Vehicle, battery, charger, gearing, and other accessories shown are NOT included unless specifically listed above.
