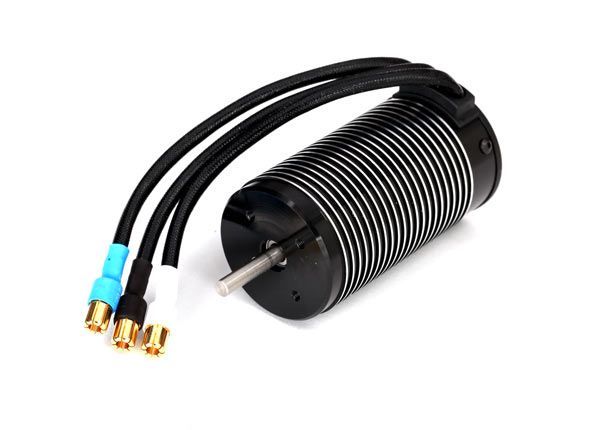

3481 Motor, 2200Kv 75mm, brushless (with 6.5mm gold-plated connectors & high-efficiency heatsink)

Traxxas Velineon 2200Kv 75mm Brushless Motor – UDR / E-Revo VXL

Part Number: 3481 / TRA3481

The Traxxas Velineon 2200Kv Brushless Motor is the factory replacement motor for the Traxxas Unlimited Desert Racer (UDR) and is also used in the E-Revo VXL Brushless platform.

This high-output 4-pole sensorless brushless motor features a large 75mm-class motor can, high-efficiency heatsink, high-speed ball bearings, and factory-installed 6.5mm gold-plated bullet connectors for direct connection to compatible Traxxas brushless power systems.

Features

• 2200Kv Brushless Motor
• 4-Pole Sensorless Design
• 75mm-Class Motor
• High-Efficiency Heatsink
• High-Speed Ball Bearings
• 5mm Motor Shaft
• Factory-Installed 6.5mm Gold-Plated Bullet Connectors
• 10-Gauge Motor Wires
• High-Power Large-Scale Performance
• Genuine Traxxas Replacement Motor

Application / Compatibility

Factory replacement motor for:

• Traxxas Unlimited Desert Racer (UDR)
• Traxxas E-Revo VXL Brushless

Please verify Traxxas Part Number 3481 with your specific model before purchasing.

Includes

• (1) Traxxas Velineon 2200Kv Brushless Motor

ESC, pinion gear, mounting hardware, batteries, and other electronics are NOT included.

Specifications

• Motor Type: Sensorless Brushless
• Motor Configuration: 4-Pole
• Kv Rating: 2200Kv
• Can Length: 77.5mm
• Can Diameter: 41.8mm
• Total Length: 98.5mm
• Shaft Length: 21mm
• Shaft Diameter: 4.99mm / 5mm
• Motor Connectors: 6.5mm Gold-Plated Bullet
• Wire Size: 10-Gauge

⚠️ Important

This listing is for the MOTOR ONLY. ESC is NOT included.

Always verify ESC compatibility, battery voltage, gearing, motor dimensions, shaft size, and vehicle application before installation.

Proper gearing and motor temperature monitoring are important when using high-power brushless systems.
