FUR-2651 Furitek SlideTech Drift & Stock 1/10 Sensored ESC w/OLED Display Royal Purple Edition

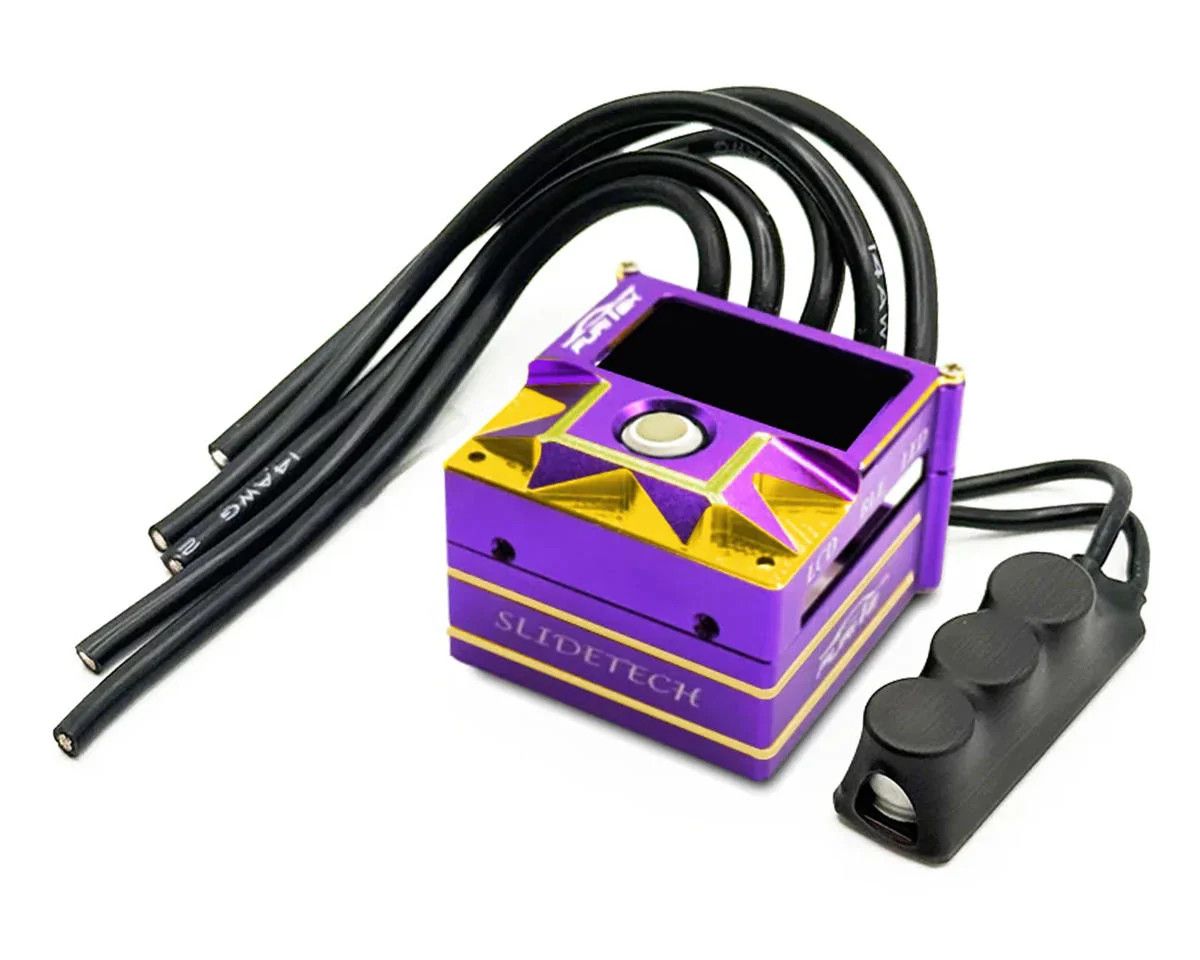

Furitek SlideTech 1/10 160A Sensored ESC w/ OLED – Royal Purple Edition

Precision. Power. Innovation.

The Furitek SlideTech 160A Sensored ESC redefines high-performance control for 1/10 scale drift and stock racing. With real-time tuning, extreme throttle precision, and advanced telemetry features, this ESC delivers next-level customization and stability for competitive drivers. The Royal Purple Edition adds a bold aluminum finish with gold chamfering, standing out as much in design as in function.

Key Performance Features:

160A Sensored Brushless ESC

• Ultra-smooth and accurate throttle response
• Adjustable PWM up to 64KHz for unmatched control
• Built-in high-power BEC (6V–7.4V adjustable, 10A peak)
• Turbo and Boost timing for fine-tuned acceleration and top speed
• Hall Mode support for fixed-timing setups
• Throttle curve setup to match any driving style
• Blinky mode default for stock class racing compliance

Wireless Tuning & Telemetry:

OLED Display (Optional Accessory)

• Mount anywhere on the car for real-time telemetry
• Displays throttle curves, temperature, and tuning parameters
• Supports wired mode and upcoming wireless VisionLink mirroring

Built-in WiFi Module

• Configure ESC settings and update firmware via iOS or Android app
• Instant tuning at the track without the need for cables or programmers

Integrated SD Card & Real-Time Clock (RTC)

• Logs performance data for advanced post-run analysis
• Unlimited storage for throttle, temperature, and voltage records

Thermal Management & Durability:

Internal PCB Cooling System

• Optimized heat dissipation through the PCB
• External fan recommended only for extended Turbo/Boost use

Pre-Race Self Diagnostic System

• Automatically checks sensor wires, motor temp, and battery status before each run

Built for Drift and Stock Racing:

• Optimized for 1/10 scale platforms
• Compact and lightweight for better balance and vehicle agility
• Integrated Backfire LED control port for realistic exhaust effects

Full Customization & Future-Ready Design:

• Adjustable parameters to suit driver, motor, and track conditions
• Firmware upgradable for continued improvement
• High-speed 32-bit CPU for responsive control and smooth power delivery

Technical Specifications:

• Scale: 1/10
• Type: Sensored Brushless ESC
• Input Voltage: 2S LiPo
• BEC Output: 6V–7.4V (adjustable), 10A peak
• Continuous Current: 160A
• Peak Current: 800A
• Motor Limit: 6.0T
• Wireless Tuning: Built-in WiFi
• Dimensions: 35.9 x 39.6 x 25.5 mm (1.41 x 1.56 x 1 in)
• Weight: 89.9g (3.2 oz)

Important Note:

Always double-check polarity (+/-) before soldering.
Incorrect polarity will result in permanent damage and is not covered under warranty.

Tips:

• Use proper tools
• Take your time
• Verify all connections before powering up

Now available at Goat Hobbies – for racers who demand the best in control, innovation, and performance.
