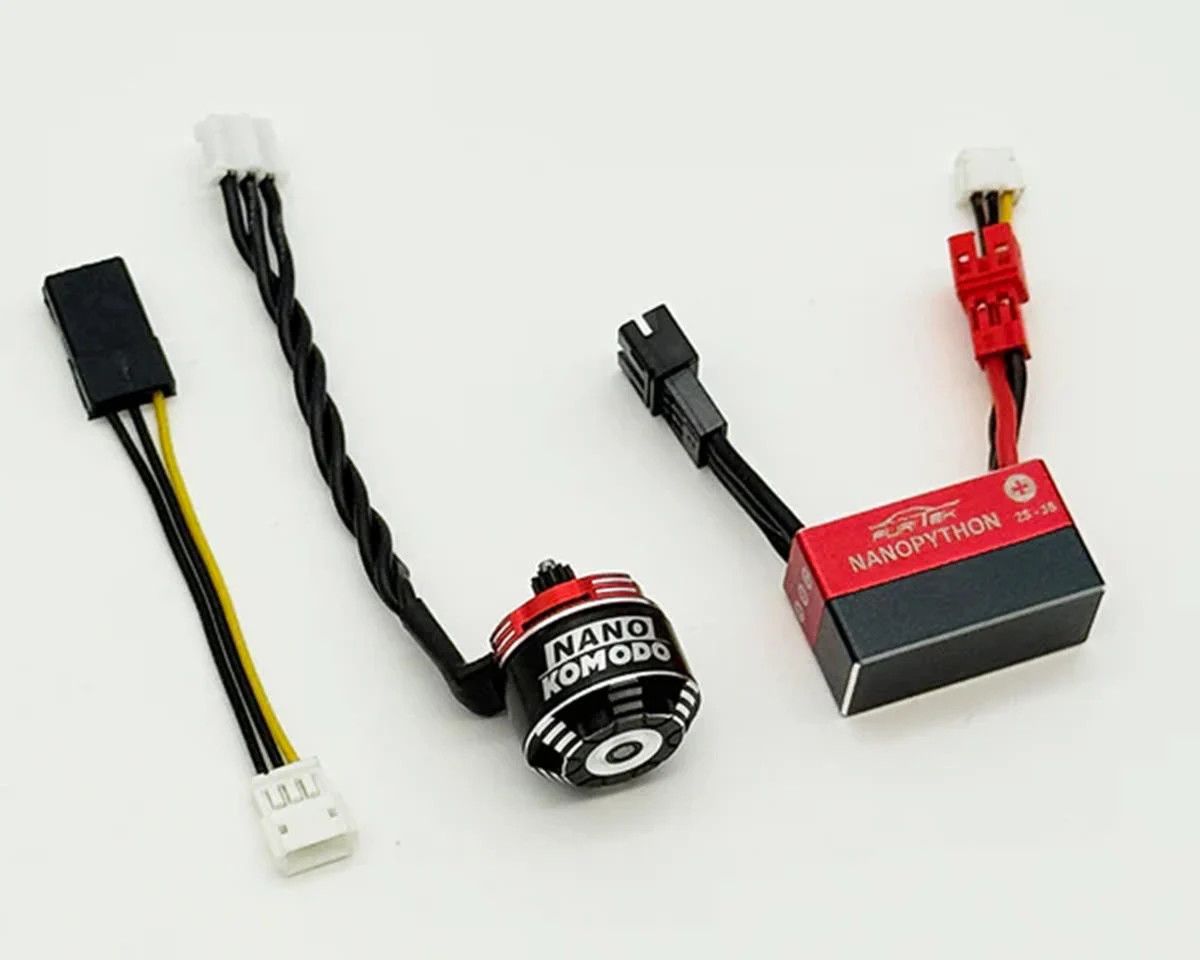

FUR-2738 Furitek Axial SCX30 NanoModo 2026 Brushless Power System (Motor & ESC Combo)

Furitek NanoModo 2026 Brushless Power System for Axial SCX30 – NanoPython ESC + NanoKomodo Motor

Part Number: FUR-2738 / FTK-FUR-2738

Upgrade your Axial SCX30 to smooth, powerful brushless performance with the Furitek NanoModo 2026 Brushless Power System. Designed specifically for the SCX30, this compact combo pairs the NanoPython FOC ESC with the 3450Kv NanoKomodo brushless motor for increased torque, excellent low-speed crawling control, and clean installation in the limited SCX30 chassis space.

Built-in wireless connectivity allows tuning, real-time telemetry, and firmware updates directly through the Furicar App on compatible iOS and Android devices.

Features

• Designed Specifically for Axial SCX30
• NanoPython Brushless FOC ESC
• NanoKomodo 3450Kv Brushless Motor
• Advanced FOC (Field-Oriented Control)
• Ultra-Smooth Low-Speed Crawling
• Increased Torque Over Stock Brushed System
• 2S–3S LiPo Compatible
• Built-In Wireless Tuning
• Furicar App Support
• Real-Time Telemetry up to 10Hz
• Wireless Firmware Updates
• Adjustable 5.5V / 7.4V 5A BEC
• Compact & Lightweight Design
• 11T Pinion Included

Includes

• (1) Furitek NanoPython Brushless FOC ESC
• (1) Furitek NanoKomodo 3450Kv Brushless Motor
• (1) Servo Adapter Cable
• (1) 11T Pinion Gear
• (2) M2 × 4mm Mounting Screws

NanoPython ESC Specifications

• Input Voltage: 2S–3S LiPo
• Continuous Current: 20A
• Burst Current: 50A
• BEC: 5.5V / 7.4V, 5A
• Motor Support: Brushed / Brushless, selectable through app
• Programming: Furicar App
• Wireless Module: Built-In
• Dimensions: 23 × 10 × 14mm
• Weight: 7.9g

NanoKomodo Motor Specifications

• Motor Type: Brushless
• Kv Rating: 3450Kv
• Motor Design: 12-Pole High-Torque
• Input Voltage: 2S–3S LiPo
• Maximum Current: 10A
• Power: 100W
• Shaft: 1.5 × 6mm
• Weight: 10g

Application / Compatibility

Designed specifically for:

Axial SCX30
