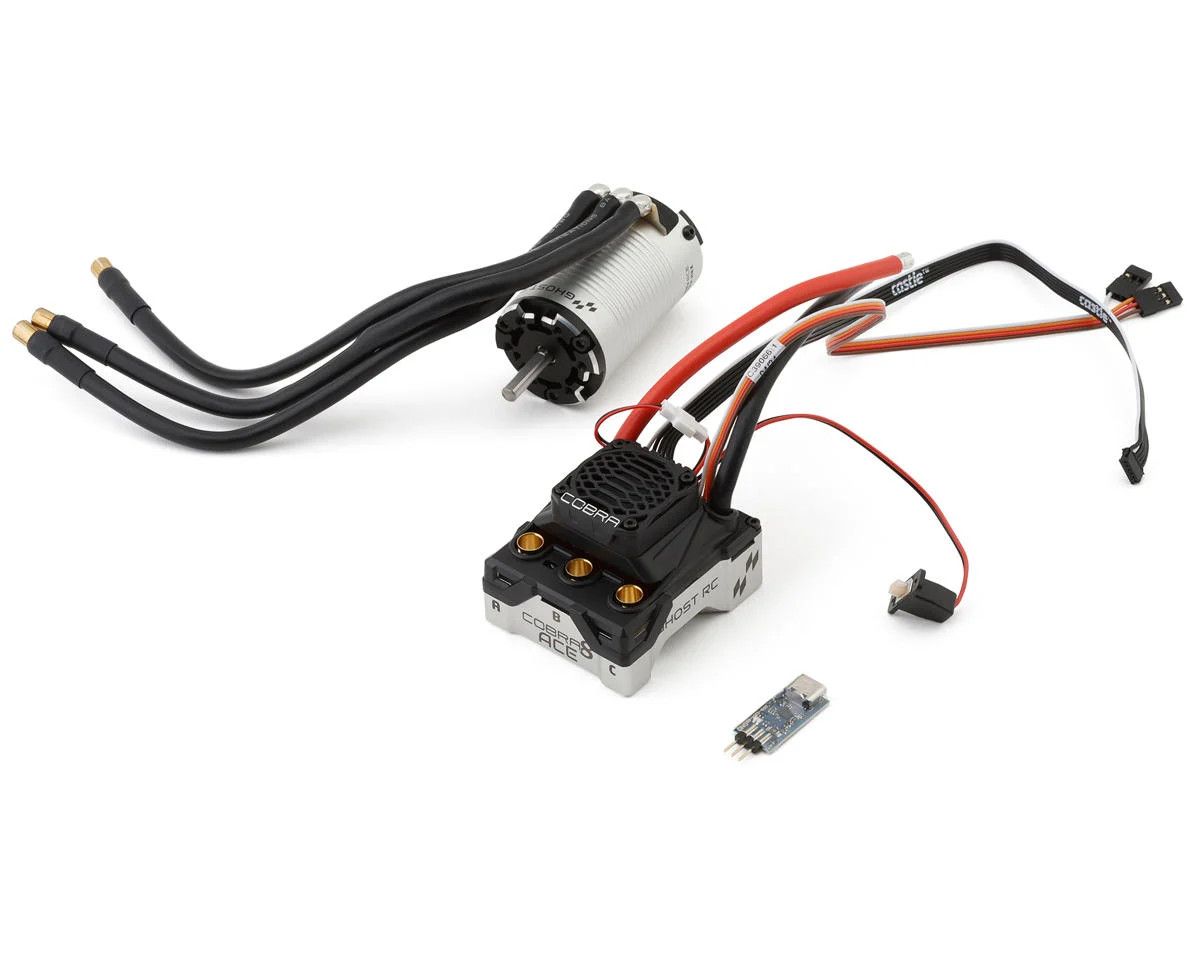

Ghost RC Cobra 8 ACE No Prep Drag ESC + 1412-4300Kv Sensored Motor Combo

Part Number: GOS020-0289-00

⚠️ IMPORTANT – NO WARRANTY – PLEASE READ BEFORE PURCHASING

GHOST RC PRODUCTS ARE SOLD “AS IS” WITHOUT ANY WARRANTY WHATSOEVER.

EXPRESS WARRANTIES, IMPLIED WARRANTIES, WARRANTIES OF MERCHANTABILITY, AND WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE ARE EXCLUDED.

Customers with DOA (Dead on Arrival) items must contact Ghost RC directly at:

support@ghost-rc.com

DOA support and determination are handled directly by Ghost RC.

By purchasing this product, the customer acknowledges and accepts the warranty terms stated above.

Built specifically for serious 1/10 No Prep Drag Racing, the Ghost RC Cobra 8 ACE combo pairs the high-performance Cobra 8 ACE brushless ESC with a 1412 4300Kv Sensored Drag Motor with adjustable endbell timing.

Designed for racers looking for maximum tuning capability, power delivery, and control, this system supports 2S–4S LiPo power and features advanced programmability for competitive drag racing applications.

Features

• Purpose-built for 1/10 No Prep Drag Racing
• Cobra 8 ACE High-Performance ESC
• 1412 4300Kv Sensored Brushless Drag Motor
• Adjustable Endbell Timing
• 550-Size Motor Can
• Stainless Steel Wrapped Rotor
• 5mm Motor Shaft with Siamese Pinion Flats
• 2S–4S LiPo Compatibility
• SmartSense™ Sensored Operation
• Adjustable 5.0V–8.0V BEC
• 8A Peak BEC Output
• Advanced Programmability
• Castle Link Compatible
• Water and Element-Resistant Construction

Includes

• (1) Ghost RC Cobra 8 ACE No Prep Drag ESC
• (1) Ghost RC 1412 4300Kv Sensored Motor with Adjustable Endbell
• (1) Castle Link V4 USB Adapter
• (1) Direct Connect Sensor Wire

Required to Complete

• High-Current Battery Connector
• External Capacitor Pack
• Compatible LiPo Battery
• Appropriate gearing and supporting drivetrain components

Battery Connector – Soldering Required

The ESC does NOT include a pre-installed battery connector.

The battery leads are supplied open-ended. A suitable high-current connector must be installed and soldering is required.

⚠️ Capacitor Pack Required

An external capacitor pack MUST be installed when using the Cobra 8 ACE for drag racing.

Failure to use the required external capacitor pack can negatively affect ESC performance and may result in damage.

ESC Specifications

• Application: 1/10 No Prep Drag Racing
• Motor Type: Brushless – Sensored
• Input Voltage: 2S–4S LiPo (7.4V–14.8V)
• BEC Voltage: 5.0V–8.0V Adjustable
• Default BEC Voltage: 5.5V
• BEC Peak Current: 8A
• Motor Connectors: 6.5mm Female
• Battery Connector: Open-Ended Wire – Connector Installation Required
• Motor Wire: 8AWG
• Battery Wire: 8AWG
• Dimensions: 2.37 × 2.05 × 1.6 in (60.2 × 52.1 × 42.5mm)
• Weight: 6.1 oz (173g)
• Programmable: Yes

Motor Specifications

• Application: 1/10 No Prep Drag Racing
• Motor: Ghost RC 1412 Sensored Drag Motor
• Kv: 4300Kv
• Motor Size: 550
• Motor Type: Brushless – Sensored
• Input Voltage: 2S–4S LiPo
• Timing: Adjustable
• Shaft Diameter: 5mm
• Motor Connectors: 6.5mm Male

⚠️ Warranty / DOA Policy

GHOST RC PRODUCTS ARE SOLD “AS IS” WITHOUT ANY WARRANTY WHATSOEVER.

Express warranties, implied warranties, warranties of merchantability, and warranties of fitness for a particular purpose are excluded.

For DOA (Dead on Arrival) items, customers must contact Ghost RC directly:

support@ghost-rc.com

All DOA support and determinations are handled directly by Ghost RC.
