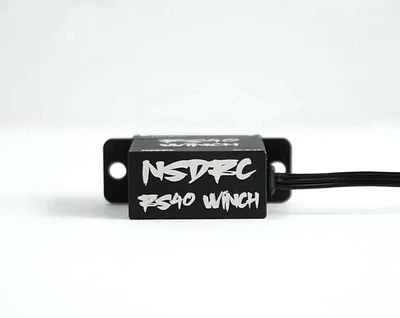

NSDRC RS40 Nano High Voltage Servo Winch for 1/24 & 1/18 RC Crawlers

Brand: No Superior Designs RC (NSDRC)
Part Number: NSD-RS40W
Product Type: Nano Servo Winch
Application: Micro RC Crawlers
Motor Type: Coreless
Operating Voltage: 6.0V–8.4V
Gears: Hardened Stainless Steel
Case: CNC-Machined Aluminum
Spline: 15T / 3.8mm Nano
Dimensions: 20 × 17 × 10mm
Weight: 10g
Water Resistance: Water-Resistant – Not Submersible
UPC: 850053070600

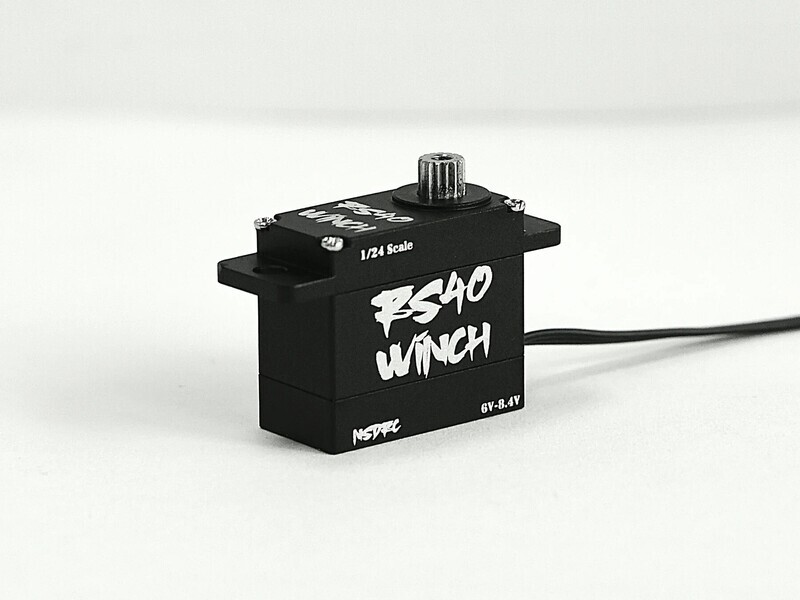

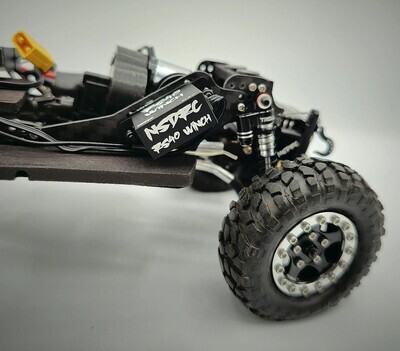

The NSDRC RS40 is an ultra-compact high-voltage servo winch designed specifically for 1/24 and 1/18 scale RC crawlers.

Despite its tiny 10g size, the RS40 delivers strong pulling performance with hardened stainless steel gears, a full CNC aluminum case and an integrated winch controller. The included CNC aluminum spool can hold up to approximately 3 feet of winch line.

KEY FEATURES

• Ultra-compact nano servo winch
• Designed for 1/24 and 1/18 scale crawlers
• 6.0V–8.4V high-voltage operation
• Coreless motor
• Hardened stainless steel gears
• Full CNC-machined aluminum case
• CNC aluminum nano winch spool
• Spool holds up to approximately 3 ft of line
• Built-in winch controller
• Water-resistant construction
• 180mm wire length
• Only 10g total weight
• 6-month manufacturer warranty

Performance:

• 25 oz @ 6.0V
• 34 oz @ 7.4V
• 41 oz @ 8.4V
• Spooling Speed @ 7.4V: approximately 3.3 sec/ft
• Spooling Speed @ 8.4V: approximately 2.7 sec/ft

COMPATIBILITY

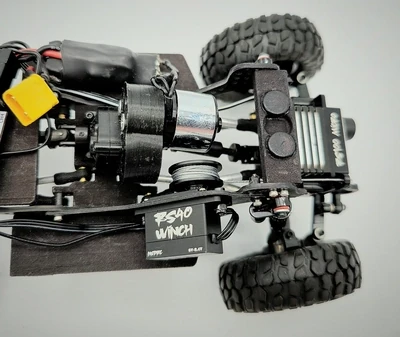

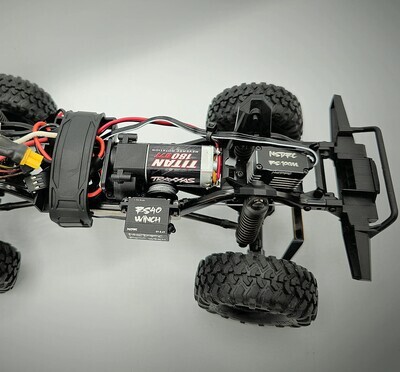

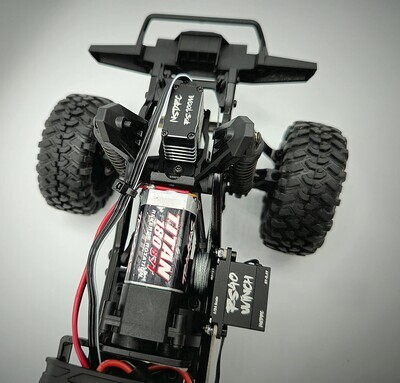

Designed for micro crawler applications including:

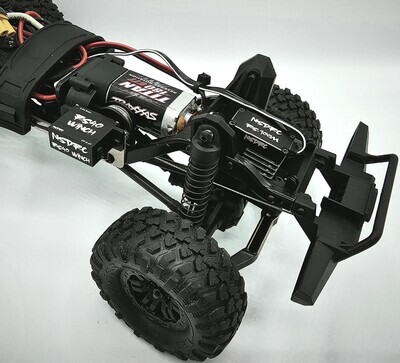

• Axial SCX24
• Traxxas TRX-4M
• Element Enduro24
• RC4WD Gelande micro crawlers
• Other compatible 1/24 and 1/18 scale crawlers

Mounting requirements vary by chassis. Verify available mounting space and compatible winch mount before purchase.

Requires a radio transmitter and receiver with a 3rd-channel momentary or 3-position switch for winch control.

INCLUDES

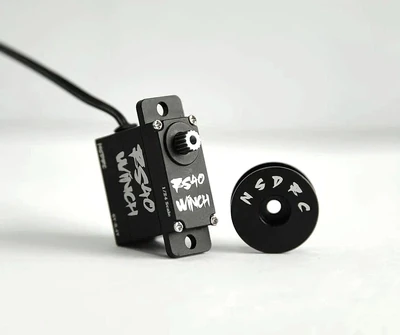

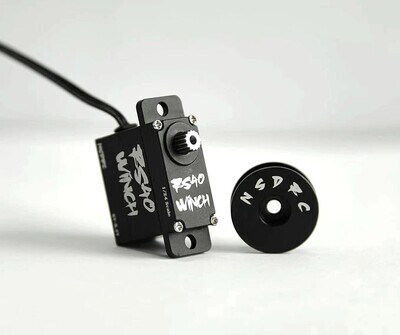

• (1) NSDRC RS40 Nano Servo Winch

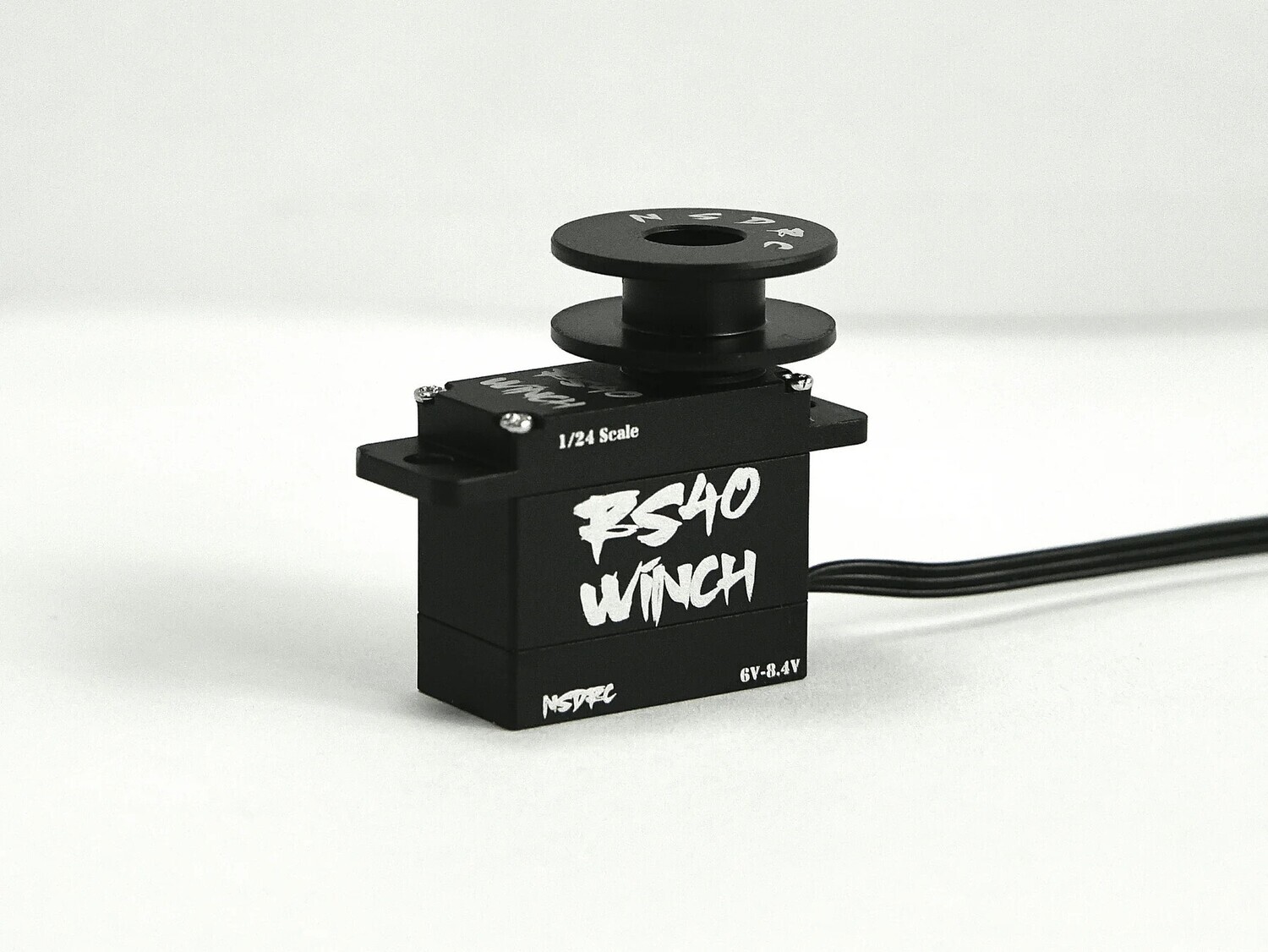

• (1) CNC-Machined Aluminum Winch Spool
• Mounting Screws

IMPORTANT

• This is a WINCH – it does NOT function as a steering servo
• NOT intended for 1/10 scale applications
• Winch line is NOT included
• Winch hook is NOT included
• Vehicle-specific winch mount is NOT included
• Requires a compatible 3-channel or greater radio system
• Operating voltage range: 6.0V–8.4V
• Water-resistant, NOT submersible
• Verify mounting compatibility before purchase
• RC vehicle is NOT included
• Pictures are for reference only
