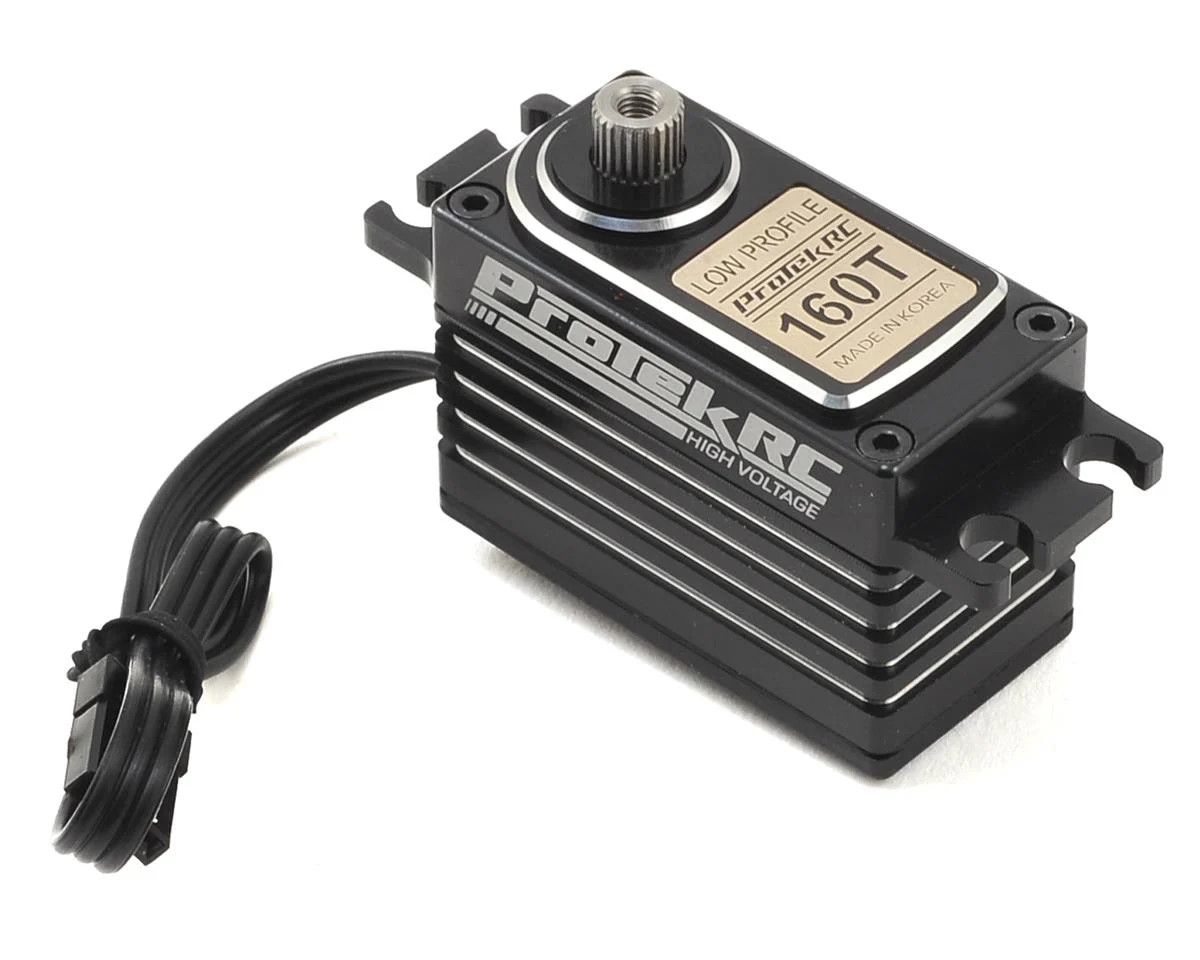

PTK-160T ProTek RC 160T Low Profile High Torque Metal Gear Servo High Voltage/Metal Case

ProTek RC 160T Low Profile High Torque Digital Servo

Coreless Power. Compact Performance.

The ProTek RC 160T Low Profile High Torque Servo delivers serious performance in a compact footprint. Perfect for 1/12 to 1/10 scale race platforms, this servo offers a powerful blend of 274 oz-in of torque and blazing-fast 0.06 sec transit speed at 7.4V, making it a top-tier option for racers who demand reliability and speed in tight chassis builds.

Housed in a full aluminum case for maximum durability and heat dissipation, the 160T uses a coreless motor, metal gear train, and dual ball bearings to ensure buttery-smooth operation and long-term dependability. It includes a 160mm gold-plated wire lead, a premium aluminum clamping horn, and optional blue aluminum ear guides for extra rigidity.

⚙️ Key Features:

• Low-profile design – ideal for tight 1/10 & 1/12 chassis
• High torque output: 274 oz-in @ 7.4V
• Quick response: 0.06 sec @ 7.4V
• Coreless motor – high efficiency & precision
• Full aluminum case – superior strength & heat control
• Metal gears with dual ball bearings
• Includes aluminum clamping servo horn
• Optional aluminum mounting guides for secure installation
• 160mm 22AWG wire with gold-plated connector

📊 Specifications:

• Voltage Range: 4.8V – 7.4V
• Speed @ 6.0V: 0.08 sec/60°
• Speed @ 7.4V: 0.06 sec/60°
• Torque @ 6.0V: 216 oz-in (15.5 kg-cm)
• Torque @ 7.4V: 274 oz-in (19.7 kg-cm)
• Motor Type: Coreless
• Gears: Metal
• Output Shaft: 25T spline
• Weight: 54.5g
• Pulse/Frequency: 1520µs / 333Hz
• Dimensions: 39.5 x 20 x 30.3mm
• Height (Bottom to Mount): 19.1mm

🏁 Compact, tough, and race-proven — the 160T gets the job done when others can't. Only at Goat Hobbies.
