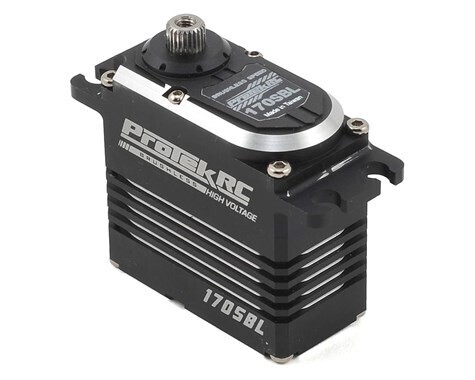

PTK-170SBL ProTek RC 170SBL Black Label High Speed Brushless Servo (High Voltage)

ProTek RC 170SBL Black Label High-Speed Brushless Servo

Professional Performance. Stealth Design. Built to Last.

The ProTek RC 170SBL delivers the precision, power, and responsiveness needed for 1/10 and 1/8 scale racing applications. Featuring the latest brushless motor technology, this servo rivals the speed and holding force of top-tier coreless servos—while offering improved efficiency and lifespan.

The full black anodized aluminum case, accented with white and silver highlights, gives the 170SBL a clean, stealthy appearance. A durable upper case and integrated center heat sink help maintain performance under pressure while reducing weight. Two detachable servo leads (150mm and 300mm) allow clean wiring in any chassis.

🔧 Key Features:

• Ideal for 1/10 to 1/8 scale RC cars
• Brushless digital motor – efficient, powerful, and built to last
• Full aluminum black anodized case for durability and heat dissipation
• Dual ball bearings and full metal geartrain for smooth, strong operation
• High-voltage compatible for modern ESC setups
• Detachable servo wire with included 150mm and 300mm leads (22AWG, gold connectors)
• Includes a full set of servo arms and mounting hardware

⚙️ Technical Specifications:

• Model: 170SBL
• Motor Type: Brushless Digital
• Gear Type: Metal
• Operating Voltage: 4.8V – 7.4V
• Speed @ 6.0V: 0.09 sec/60°
• Speed @ 7.4V: 0.08 sec/60°
• Torque @ 6.0V: 458 oz-in (32.9 kg-cm)
• Torque @ 7.4V: 535 oz-in (38.5 kg-cm)
• Output Shaft: 25T
• Frequency: 1520µs / 333Hz
• Weight: 72g
• Dimensions: 40 x 20 x 37.8 mm
• Bottom to Mounting Tabs: 28.4 mm

🧩 Compatible Optional Servo Leads:

• PTK-3049: 70mm
• PTK-3047: 150mm (included)
• PTK-3048: 300mm (included)

Important Note:
If using a Futaba transmitter, disable BLS mode unless you're using a Futaba BLS-type servo. This mode is not compatible with the ProTek 170SBL.

Now available at Goat Hobbies – engineered for racers who demand speed, power, and total control.
