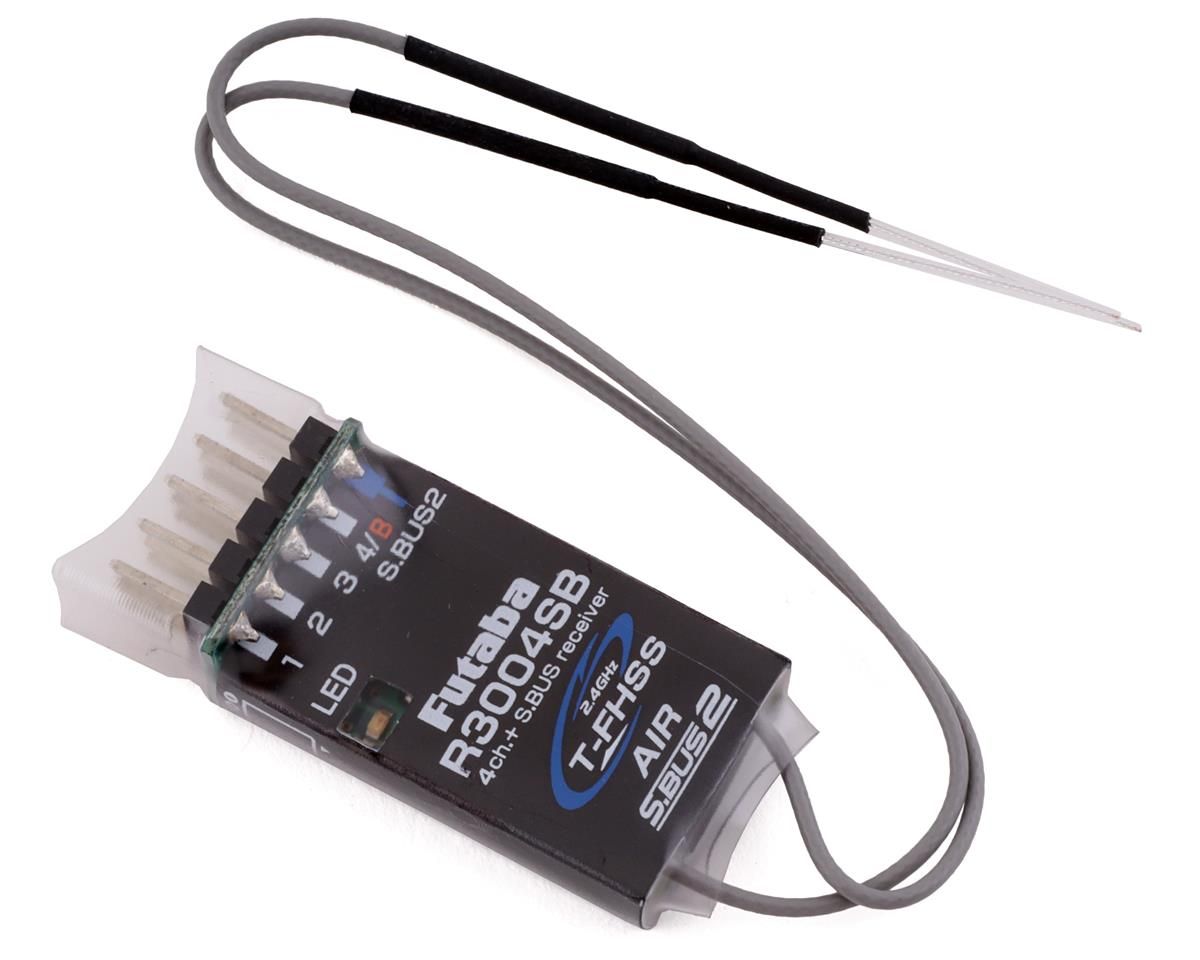

R3004SB Futaba R3004SB 2.4GHz 4-Channel T-FHSS S.BUS2 Telemetry Receiver

Futaba R3004SB 2.4GHz T-FHSS Air 4-Channel S.BUS2 Telemetry Receiver

Part Number: FUT01102153-3
Model: R3004SB
Brand: Futaba
Channels: 4
Protocol: T-FHSS Air
S.BUS2: Yes
Telemetry: Yes

The Futaba R3004SB is a compact, lightweight 2.4GHz T-FHSS Air telemetry receiver designed for RC aircraft applications. It features four conventional channels plus S.BUS2 connectivity, allowing compatible Futaba servos, gyros, and telemetry sensors to be integrated into a clean, lightweight installation.

Key Features

• 2.4GHz T-FHSS Air system
• 4 conventional channels
• S.BUS2 compatible
• Built-in telemetry capability
• Dual antenna diversity
• Compact and lightweight design
• Designed for RC airplanes and helicopters
• Compatible with Futaba T-FHSS Air transmitters

Specifications

Channels: 4
Protocol: T-FHSS Air
Frequency: 2.4GHz
S.BUS2: Yes
Telemetry: Yes
Operating Voltage: 4.8–7.4V
Dimensions: 18 × 41.4 × 9.9mm
Weight: 4.8g / 0.17oz

Includes

• (1) Futaba R3004SB Receiver

⚠️ Important Compatibility Information

The R3004SB requires a Futaba transmitter that supports T-FHSS Air.

T-FHSS Air and T-FHSS Surface are different systems. This receiver is NOT intended for Futaba T-FHSS Surface/car radio systems.

Verify your transmitter's supported protocol before purchasing.

Pictures are for reference only. Transmitter, aircraft, servos, sensors, and other accessories shown are NOT included.
