RE-BRV REVE D RD SPEC BRUSHLESS ESC BREVE(RE-BRV)

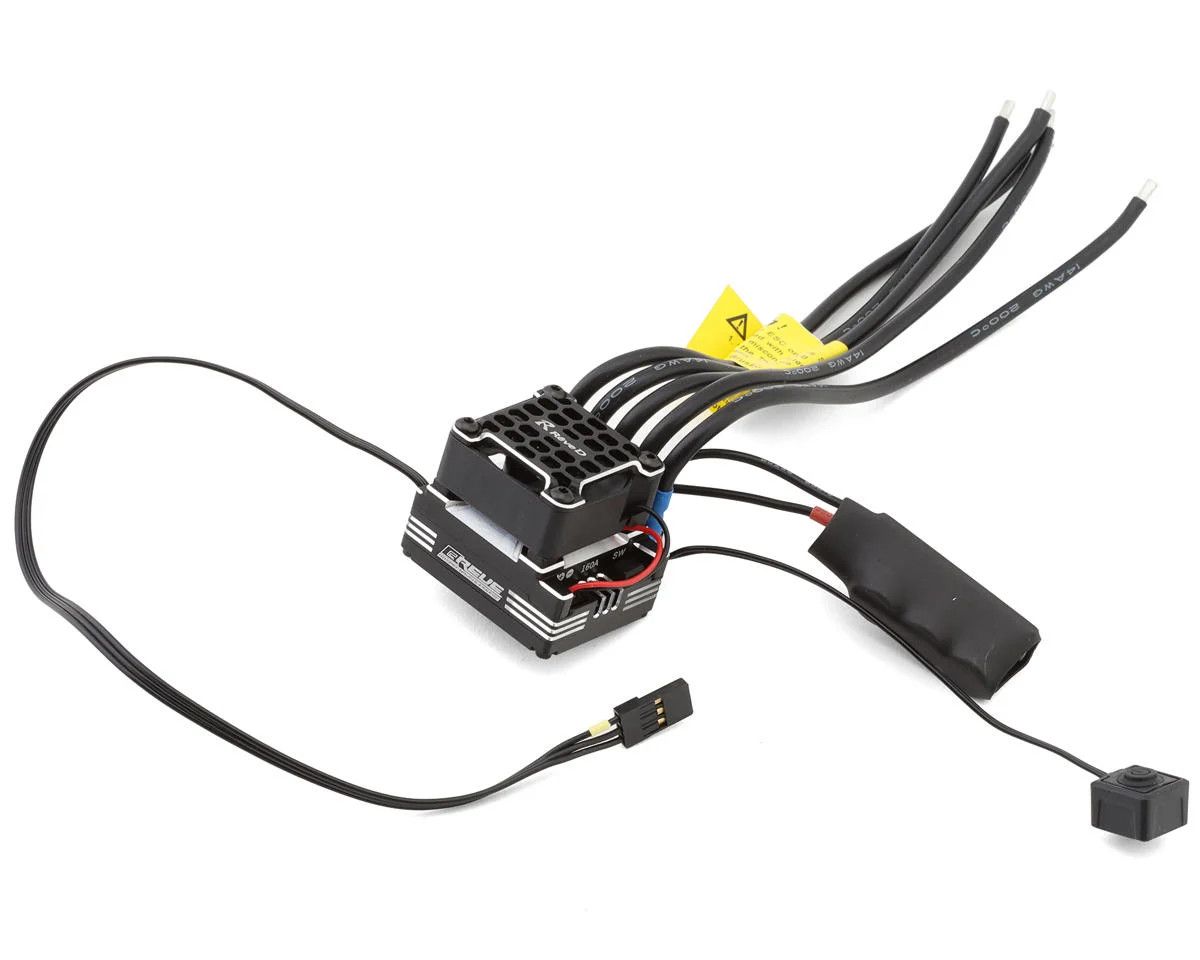

Rêve D RD Spec BREVE 160A Sensored Brushless Drift ESC – Black

Part Number: RE-BRV / RV-RE-BRV

The Rêve D RD Spec BREVE 160A Sensored Brushless ESC is a premium high-performance ESC developed specifically for 1/10 RC drifting.

Designed and programmed under the supervision of Rêve D development staff member Hayato Matsuzaki, the BREVE combines strong torque, smooth linear throttle response, extensive tuning capabilities, and a compact low-profile design.

Built-in Bluetooth connectivity allows adjustments directly from a compatible iOS or Android smartphone without requiring a separate programming module.

Features

• Designed Specifically for 1/10 RC Drift
• Sensored Brushless ESC
• 160A Continuous Current
• 760A Maximum Current
• 2S–3S LiPo Compatible
• Powerful 32-Bit Microprocessor
• Built-In Bluetooth
• Smartphone App Programming
• Pre-Installed Drift Settings
• Adjustable Throttle Settings
• Adjustable Brake Settings
• Adjustable Boost
• Adjustable Turbo
• Real-Time Data Logging
• Full Aluminum Low-Profile Case
• High Heat Dissipation
• Large-Capacity Capacitor
• Cooling Fan Included
• Removable Push-Type Power Switch
• Pre-Wired 14-Gauge Silicone Wires
• Switchable 6.0V / 7.4V BEC

Smartphone Programming

The BREVE features built-in Bluetooth, allowing ESC settings to be changed directly through the dedicated smartphone app.

Adjustable parameters include:

• General Settings
• Throttle
• Brake
• Boost
• Turbo

Compatible with supported Apple iOS and Android devices.

Includes

• (1) Rêve D RD Spec BREVE Brushless ESC – Black
• (1) Cooling Fan
• (1) Large-Capacity Capacitor
• (1) Removable Power Switch
• Pre-Wired 14-Gauge Silicone Wires
• Instruction Manual

Specifications

• Application: 1/10 RC Drift
• ESC Type: Sensored Brushless
• Continuous Current: 160A
• Peak Current: 760A
• Input Voltage: 2S–3S LiPo
• BEC Output: 6.0V / 7.4V, 4A Switchable
• Programming: Smartphone App
• Bluetooth: Built-In
• App Support: iOS / Android
• Waterproof: No
• Dimensions: 38 × 30.5 × 16.5mm
• Weight: 48.5g

⚠️ Important Installation Information

Battery and motor connectors are not included.

The ESC comes with 14-gauge silicone wires pre-installed, but the appropriate connectors for your battery and motor setup must be installed separately.

Soldering may be required.

Battery, motor, receiver, servo, connectors, and other electronics are not included.

⚠️ Important

This ESC is NOT waterproof.

When updating the ESC/app firmware, saved settings may be reset. Record your custom settings before performing an update and recalibrate the neutral position afterward.
