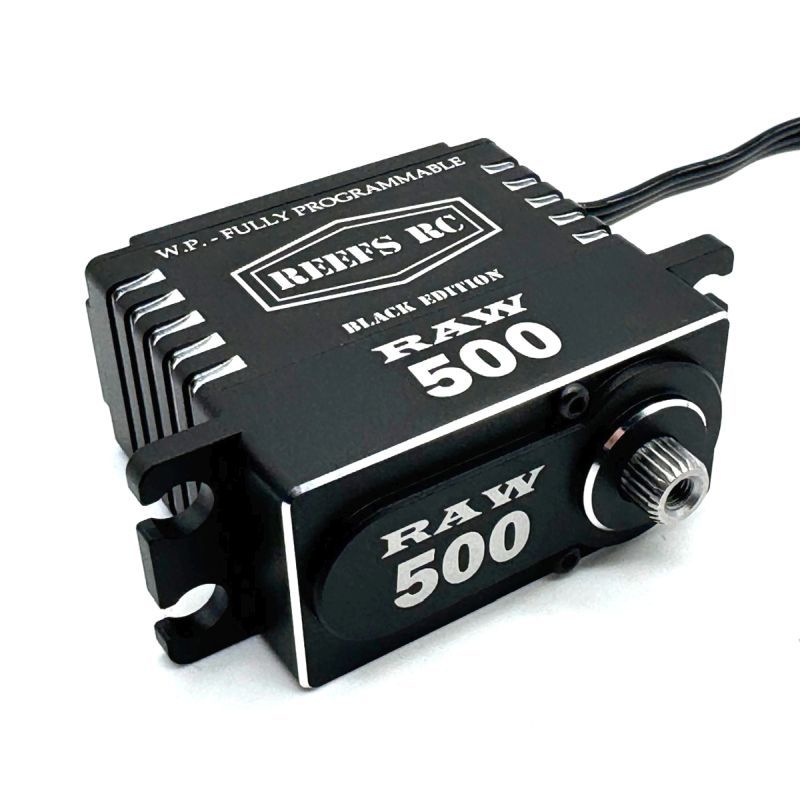

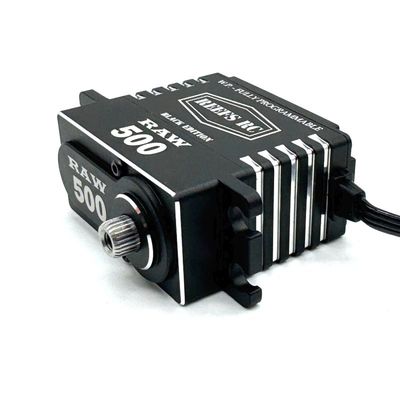

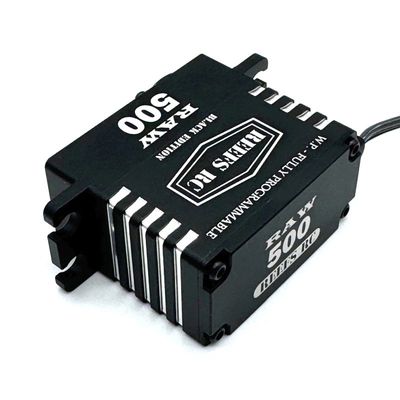

REEFS178 RAW 500 Black Edition - Servo Programmable

Home/Store/ELECTRIC PARTS*/SERVOS*

Product Details

he servo that changed the game is now available in BLACK! The RAW500 is a powerhouse of a servo that has proven itself time and time again. There's a reason it's our most recommended servo.

SPECIFICATIONS:

SUBMARINE WATERPROOF: 7 Point Seals
Magnetic Angle Sensor
Pulse Width Modulation Control
Fully Programmable w/ REEFS Software (REEFS USB LINK required)
Voltage: 4.8V - 8.4V
Internal: Steel Gears / All CNC Aluminum REEFS Case
Bearing Type: 2 Ball Bearings / Weight: 2.75oz
Dimensions: 1.57 x .79 x 1.5 (LWH)
Torque: 450oz @ 6v/ 500oz @7.4v/ 565oz @8.4v
Speed: .11sec @6v/.095sec @7.4v/.08sec @8.4v
Spline: 25T
Dead Band Width: 2¦Ìs
BEC Not Required (Recommended for best performance)

Unload Current: 320mA @ 6.0V / 360mA @ 7.4V / 400mA @ 8.4V

Loading Current: 4000mA @ 6.0V / 4300mA @ 7.4V / 4600mA @ 8.4V

For programming, the USB Link is required.

Item# REEFS178
