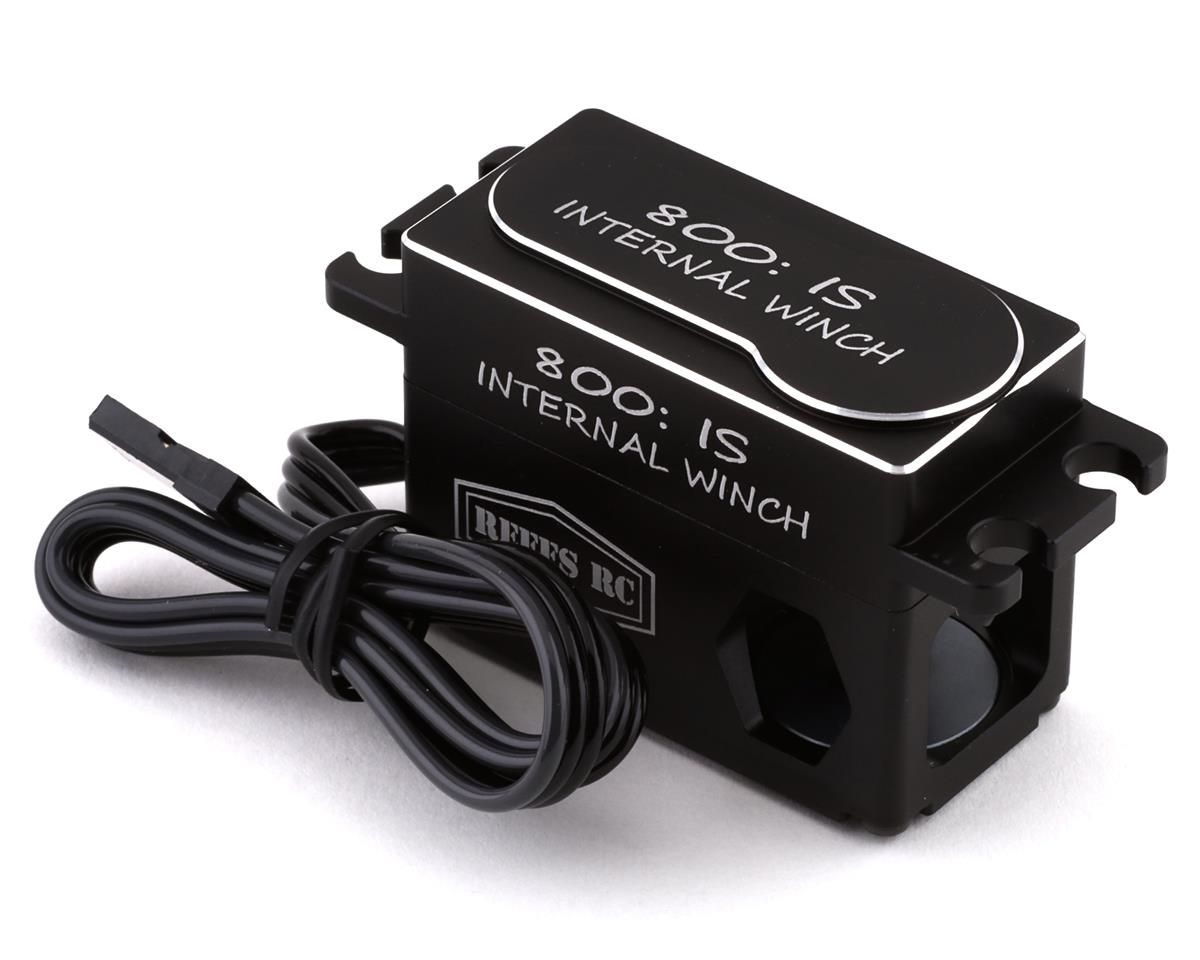

REEFS90 Reefs RC 800:IS Internal Spool LowPro Brushless Servo Winch

REEFS RC 800:IS Comp Spec Internal Spool Low Profile Brushless Servo Winch

Part Number: REEFS90 / SEHREEFS90
UPC: 610406248939
Brand: REEFS RC
Type: Internal Spool Brushless Servo Winch

The REEFS RC 800:IS Comp Spec Internal Spool Servo Winch is a high-torque, high-speed brushless winch designed for serious RC crawling, competition, trail, and recovery applications.

Unlike an external winch, the 800:IS uses an internal machined spool housed inside a compact low-profile CNC aluminum servo case. It includes approximately 6 feet of 0.8mm synthetic winch line and a scale recovery hook, creating a clean installation while delivering up to 960 oz-in of torque at 8.4V.

Features

• High-Torque / High-Speed Brushless Servo Winch
• Internal Machined Winch Spool
• Low-Profile Design
• CNC-Machined Aluminum Case
• Steel Internal Gears
• 3 Ball Bearings
• IP67 Rated Waterproof Design
• Six-Point Sealing System
• Approximately 6 ft of 0.8mm Synthetic Winch Line
• Scale Recovery Hook Included
• Wide 4.8V–8.4V Operating Range
• Up to 960 oz-in Torque
• Built for Competition & Serious RC Crawling
• BEC Not Required

Performance Specifications

At 6.0V

• Torque: 800 oz-in / 57.6 kg-cm
• Speed: 0.08 sec

At 7.4V

• Torque: 848 oz-in / 61.1 kg-cm
• Speed: 0.07 sec

At 8.4V

• Torque: 960 oz-in / 69.1 kg-cm
• Speed: 0.06 sec

Specifications

• Voltage: 4.8V–8.4V
• Motor Type: Brushless
• Gears: Steel
• Bearings: 3 Ball Bearings
• Dimensions: 1.60 × 0.79 × 1.16 in
• Weight: 2.3 oz / 65 g / 0.144 lb
• Dead Band: 2μs
• Case: CNC Aluminum
• Winch Line: Approx. 6 ft / 0.8mm Synthetic
• Water Resistance: IP67, Six-Point Sealed

Includes

• (1) REEFS RC 800:IS Internal Spool Brushless Servo Winch
• Approx. 6 ft of 0.8mm Synthetic Winch Line
• Scale Recovery Hook

⚠️ IMPORTANT – INTERNAL SPOOL SERVO WINCH

THIS IS A SERVO-STYLE INTERNAL SPOOL WINCH DESIGNED FOR RC RECOVERY APPLICATIONS.

Before purchasing, verify your vehicle has sufficient mounting space and that your radio/electronics configuration can properly operate a servo winch.

For maximum performance, REEFS recommends its 8.4V EZ-BEC, which is sold separately.

Important

THIS LISTING IS FOR ONE REEFS RC 800:IS SERVO WINCH WITH SYNTHETIC LINE AND RECOVERY HOOK ONLY.

RC vehicle, servo mount, BEC, radio system, battery, and other accessories shown in pictures are NOT included unless specifically stated above.

Pictures are for reference only.
