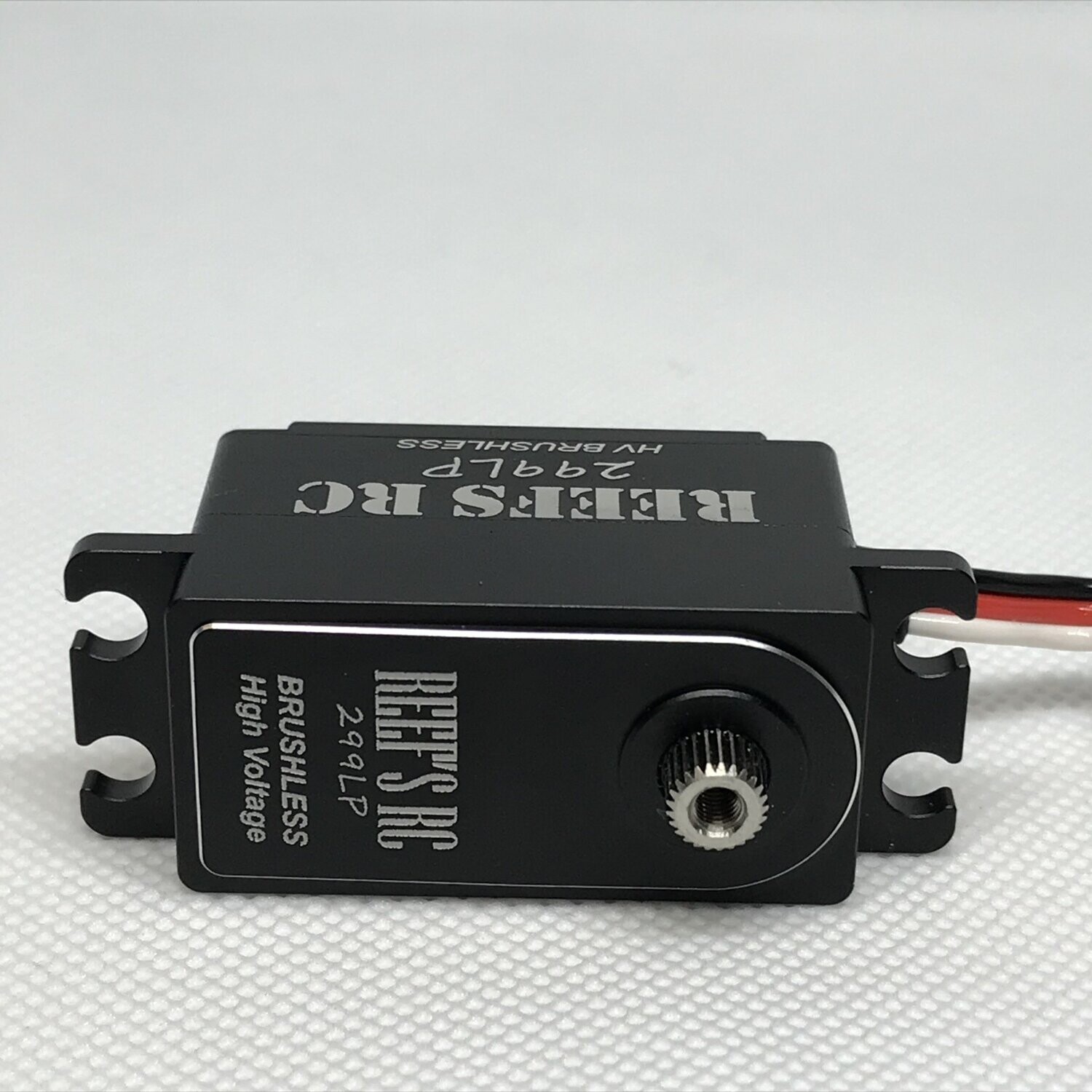

REEFS RC 299LP High-Torque High-Speed Brushless Low Profile Servo – Black

Brand: REEFS RC
Part Number: REEFS24 / SEHREEFS24
Product Type: High-Voltage Low Profile Racing Servo
Motor: Brushless
Gears: Steel
Case: CNC Aluminum
Spline: 25T
Operating Voltage: 4.8V–8.4V
Water Resistance: Water-Resistant
Weight: 2.0 oz / 57.2g
Dimensions: 1.60 × 0.79 × 1.00 in

The REEFS RC 299LP is a high-speed, high-torque brushless low-profile servo designed for demanding 1/10 racing and drift applications.

Its steel gears, CNC aluminum case, magnetic angle sensor and high-voltage capability deliver fast, precise steering in a compact low-profile package.

KEY FEATURES

• High-speed, high-torque brushless motor
• Low-profile design
• Steel internal gears
• Full CNC aluminum case
• Dual ball bearings
• Magnetic angle sensor
• Water-resistant construction
• 25T output spline
• Programmable with optional REEFS LINK
• Operating voltage: 4.8V–8.4V

Torque:

• 278 oz-in / 20kg-cm @ 6.0V
• 299 oz-in / 21.5kg-cm @ 7.4V
• 313 oz-in / 22.5kg-cm @ 8.4V

Speed:

• 0.07 sec/60° @ 6.0V
• 0.06 sec/60° @ 7.4V
• 0.057 sec/60° @ 8.4V

COMPATIBILITY

• 1/10 RC racing applications
• 1/10 RC drift applications
• Vehicles accepting a low-profile servo
• Applications using a compatible 25T servo spline

Verify servo dimensions, mounting space, voltage and spline requirements for your vehicle before purchase.

INCLUDES

• (1) REEFS RC 299LP Low Profile Racing Servo – Black
• Servo horns
• Mounting hardware

IMPORTANT

• Operating voltage: 4.8V–8.4V
• Water-resistant; do not assume fully waterproof/submersible use
• REEFS LINK programmer is required for programming and is NOT included
• Servo horn requirements vary by application
• Receiver, ESC/BEC and radio system are NOT included
• Verify your ESC/BEC can provide adequate voltage and current
• Pictures are for reference only
