HWI30104300 Ezrun Max5 HV Plus ESC ***WARRANTY DIRECTLY WITH MANUFACTER***

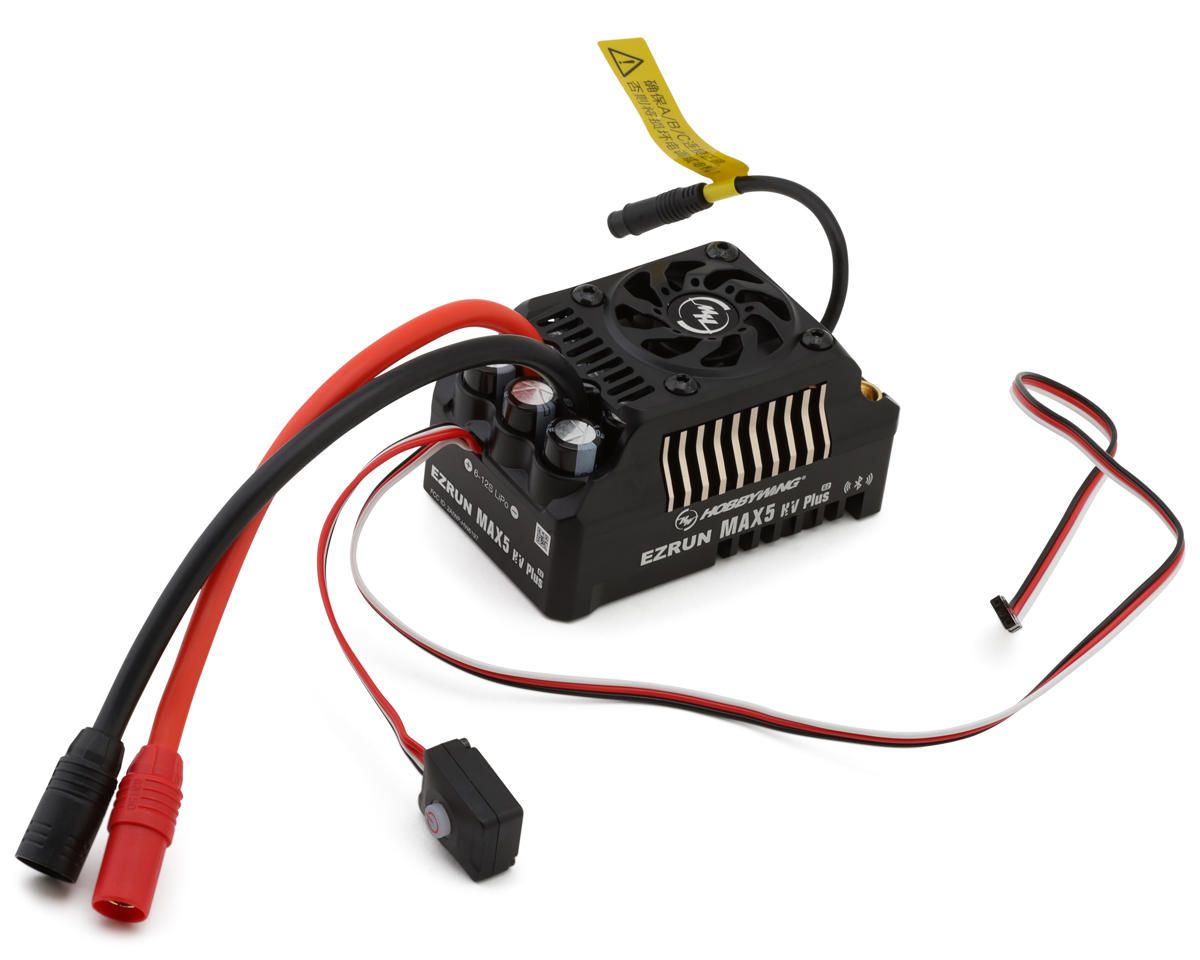

Hobbywing EZRun MAX5 HV Plus G2 1/5 Waterproof Sensored Brushless ESC – 6S-12S

Part Number: HWA30104300 / 30104300

The Hobbywing EZRun MAX5 HV Plus G2 is an extreme high-power sensored brushless ESC designed for 1/5 scale monster trucks and heavy-duty bashing, as well as 1/7 and 1/8 scale extreme-speed applications.

Supporting 6S–12S LiPo, the MAX5 HV Plus G2 delivers massive power with advanced sensored control, built-in Bluetooth programming, data logging, adjustable high-voltage BEC, and factory-installed AS150 anti-spark battery connectors.

Features

• Designed for 1/5, 1/7 & 1/8 Scale High-Power Applications
• Sensored & Sensorless Brushless Motor Compatible
• 6S–12S LiPo Compatible
• Up to 500A Continuous Current on 8S
• 330A Continuous / 2000A Peak Current Rating
• Waterproof & Dust-Resistant Design
• Built-In Bluetooth
• HW Link App Programming
• Built-In Data Logging
• Turbo Timing Support with Compatible Hobbywing Motors
• Adjustable 6V / 7.4V / 8.4V BEC
• 8A Continuous BEC Output
• Large Built-In 4080μF Capacitor
• Capacitor Temperature Protection
• 45mm Cooling Fan
• Firmware Upgradeable
• AS150 Anti-Spark Battery Connectors Pre-Installed
• 8mm Motor Bullet Connectors

Application

Ideal for compatible:

• 1/5 Scale Monster Trucks & Heavy-Duty Bashers
• 1/7 Scale Extreme-Speed Builds
• 1/8 Scale Extreme-Speed Builds
• Large-Scale High-Power Custom Applications

Recommended motor combinations include Hobbywing EZRun 5690 and 56118 G2 sensored motors.

Includes

• (1) Hobbywing EZRun MAX5 HV Plus G2 ESC
• Double-Sided Mounting Tape
• Heat Shrink Tubing
• User Manual
• Hobbywing Decal

Motor, batteries, and other electronics are NOT included.

Specifications

• ESC Type: Sensored Brushless
• Input Voltage: 6S–12S LiPo
• Continuous Current: 330A
• Peak Current: 2000A
• Continuous Current on 8S: Up to 500A
• BEC: 6V / 7.4V / 8.4V Adjustable
• BEC Continuous Current: 8A
• Battery Connectors: AS150 Anti-Spark
• Motor Connectors: 8mm Female Bullets
• Battery Wire: 8AWG
• Cooling Fan: 45 × 45 × 10mm
• Programming: Bluetooth / HW Link App / Compatible Programmer
• Dimensions: 94.5 × 59.4 × 51.6mm
• Weight: Approx. 450g / 15.9 oz including wires and connectors

⚠️ Important Compatibility Notice

This is an extremely high-power ESC intended for properly equipped large-scale and extreme-speed RC applications.

Always verify motor Kv, battery voltage, gearing, connectors, drivetrain capabilities, vehicle weight, and available installation space before use.

For standard applications, Hobbywing specifies motor limits of approximately:

• 8S LiPo: up to 2500Kv
• 12S LiPo: up to 1600Kv

Turbo timing functionality requires compatible Hobbywing sensored motors.
