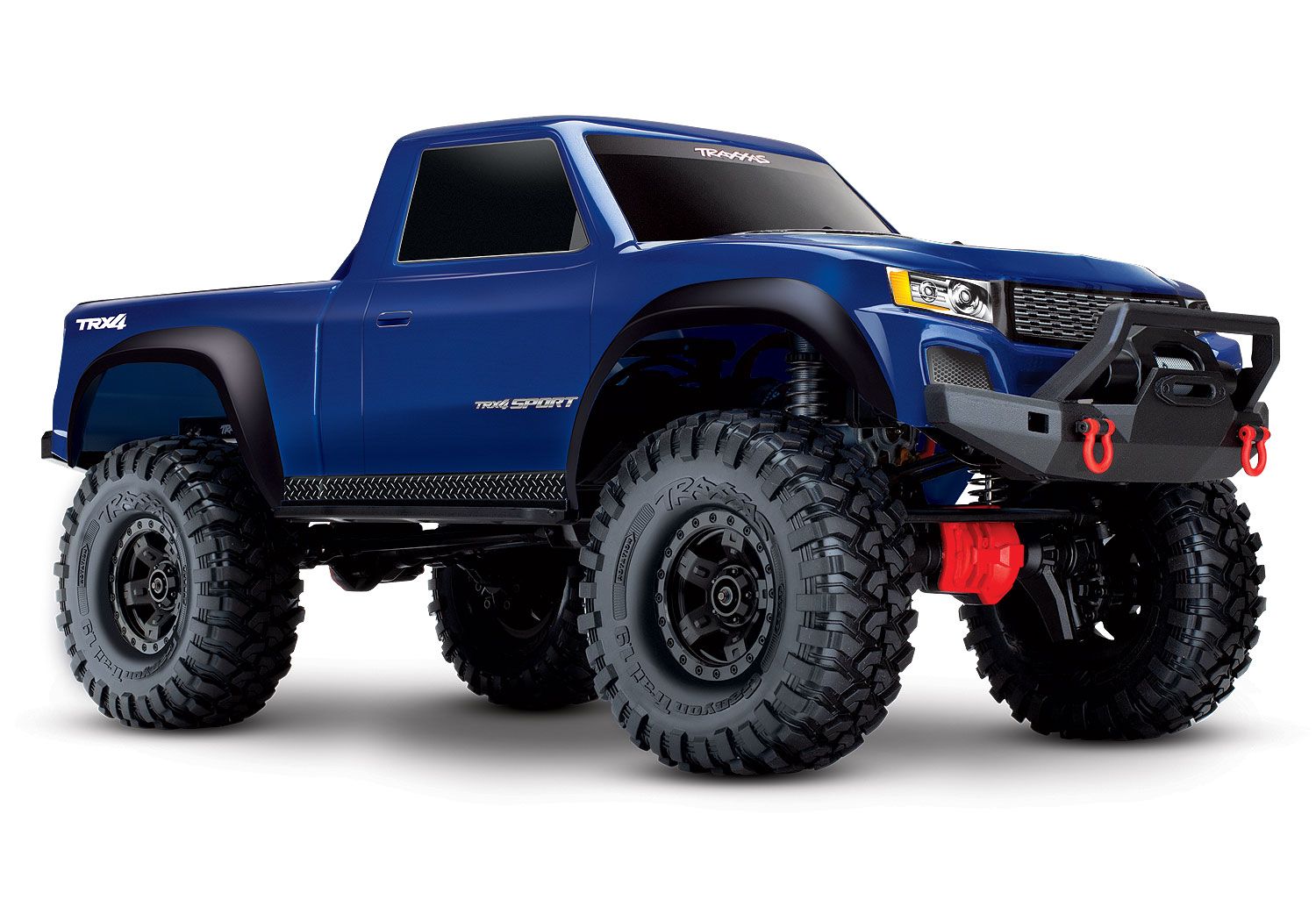

TRX-4® Sport: 1/10 Scale 4WD Electric Truck. Ready-to-Race
SKU 21_sku_main
$369.99
Color
In stock
Save this product for later
TRX-4® Sport: 1/10 Scale 4WD Electric Truck. Ready-to-Race
Product Details
The Traxxas TRX-4 Sport is a technical powerhouse purpose-built from the ground up to conquer any terrain. The Sport packs in all the features necessary for crawling while keeping weight as low as possible. Portal axles provide unprecedented ground clearance with the smooth damping action of aluminum GTS shocks. The lightweight body keeps the CG low for sure-footed climbing and permanently locked differentials transform the motor’s torque into unstoppable forward motion. Built Traxxas-Tough, the Sport adds a dedicated hardcore crawler to the powerful TRX-4 lineup.
- Tough, Lightweight Pickup Truck Body
- Low profile bumpers for increased clearance
- Red differential covers and D-rings
- Trail-Tuned XL-5™ HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode — forward / brake / reverse
- Race Mode — forward / brake / no reverse
- Training Mode™ - 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set® one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6–7 cell NiMH (7.2–8.4 V) and 2–3S LiPo (7.4–11.1 V)
- Two stage low voltage protection (LVD)
- Titan® 550 Motor
- Powerful Titan 21T reverse rotation motor with internal cooling fan
- Precise preset gear mesh adjustments
- Motor retention separate from gear mesh
- TQ™ 2.4 GHz 2-Channel Radio System
- Ergonomic transmitter with internal antenna
- Traxxas 6519 3-channel micro receiver with fail-safe security
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry
- Rigid Steel Frame
- 1.5 mm thick steel frame rails increase torsional rigidity
- Innovative design allows four wheelbase positions (300 mm, 312 mm, 324 mm, 336 mm)
- Adjustable rear shock tower positions for SWB and LWB configurations
- Bumpers adjust fore and aft
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
- Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
- Drivetrain
- Full-time shaft driven 4-wheel drive
- Tough 6 mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Spool-locked front and rear differentials
- Steel gear transfer case
- Transmission
- Single-speed with steel gears
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
- Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
- Suspension
- Front — 3 link with panhard
- Rear — triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5 mm diameter steel link rods with 4 mm threaded ends
- Aluminum GTS Shocks
- Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
- Wheels and Tires
- Rugged black 5-spoke wheels
- Pre-mounted 1.9″ Canyon Trail tires with trail-tuned foam inserts
- Trail tuned S1 rubber compound
- 12 mm steel hex
- Sealed Ball Bearings
- Hex Hardware with Rust-Resistant Black Oxide Coating
- Requires Battery and Charger (Sold Separately)
-
Model Specs
Model Name: TRX-4 Sport Model Type: Trail / Crawler Model Skill Level: 1 Scale: 1/10 Weight: 5.79 pounds (2.63 kg) Length: 21.93 inches (557 mm) Width: 9.78 inches (249 mm) Front Track: 9.78 inches (249 mm) Rear Track: 9.78 inches (249 mm) Height: 9.47 inches (241 mm) Wheelbase: 12.28 inches (312 mm) Center Ground Clearance: 3.14 inches (80 mm) Drivetrain: Shaft-driven 4WD Transmission: Single speed Differential Type: Spool (no differential) Gear Pitch: 32 pitch Servo(s): 2075X metal gear, digital high-torque waterproof Radio System: TQ™ 2.4 GHz 2-channel radio Battery Compartment Specs: 159 mm X 47 mm X 23 mm, 26 mm Motor Specs
Motor Name: Titan® 21T Reverse Rotation Motor Type: High-torque brushed motor Motor Weight: 8.47 ounces (240 g) Motor Length: 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length Motor Diameter: 1.53 inches (39 mm) Motor Shaft Size: 3 mm Motor Connector Type: Bullet ESC Specs
ESC Name: XL-5™ HV ESC Type: Brushed ESC Case Size: 1.23 inches (31 mm) / 2.18 inches (55 mm) / 1.04 inches (26 mm) ESC Weight: 2.60 ounces (74 g) Motor Connectors: Bullet Battery Connectors: Traxxas High-Current Connector ESC Power Wire: 14 gauge
