010-0115-05 Sidewinder SV3 WP 1/10 ESC/Motor Combo (4600kV)

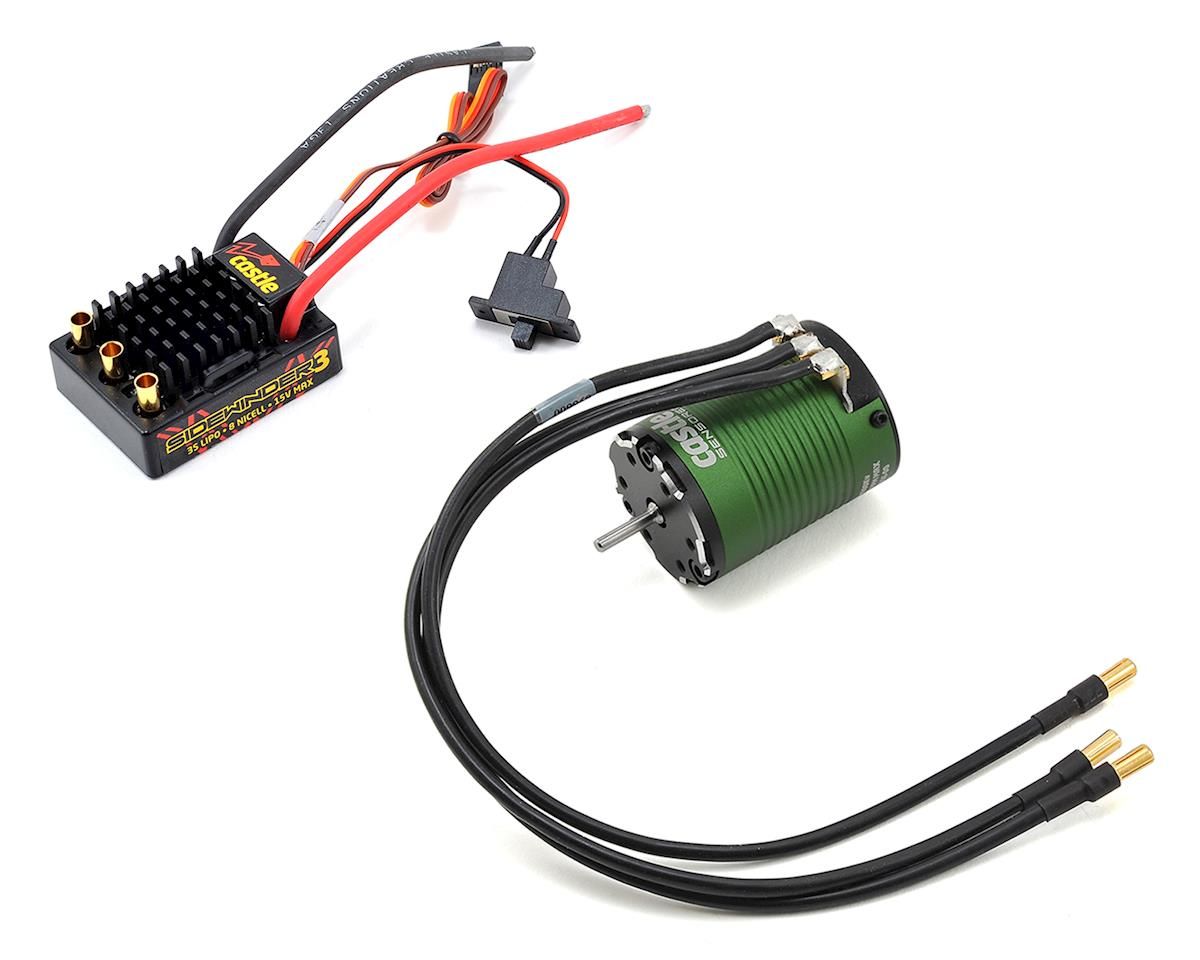

Castle Creations Sidewinder 3 Waterproof ESC + 1406 4600Kv Brushless Motor Combo

Part Number: 010-0115-05
Motor: Castle 1406 4600Kv Sensored Brushless
ESC: Sidewinder 3 Waterproof
Battery: 2S–3S LiPo
Application: 1/10 Scale

The Castle Creations Sidewinder 3 with 1406 4600Kv Brushless Motor Combo is a powerful 1/10-scale system designed for on-road cars, 2WD stadium trucks, buggies, and select 2WD short-course applications.

The included 1406 4600Kv motor is sensored and rebuildable, while the Sidewinder 3 ESC provides Castle's programmable performance in a waterproof design. An important distinction is that the Sidewinder 3 ESC itself is sensorless, so the motor's sensored capability cannot be used with this ESC.

Recommended Applications

Castle recommends this combo for:

• 1/10 2WD Short Course Trucks — 2S LiPo with conservative gearing
• 1/10 2WD Stadium Trucks — 2S recommended
• 1/10 2WD Buggies — 2S recommended
• 1/10 On-Road Cars — 2S or 3S
• General bashing applications up to 5 lb ready-to-run weight

Limited 3S use is possible in suitable stadium truck and buggy applications, but Castle specifically warns that temperatures can rise quickly and conservative gearing is required.

⚠️ NOT FOR 4WD SHORT COURSE TRUCKS

CASTLE SPECIFICALLY STATES THAT THIS COMBO IS NOT FOR USE IN 4WD SHORT COURSE TRUCKS.

Do not use vehicle scale alone to determine compatibility. Vehicle weight, drivetrain, battery voltage, gearing, tire size, and intended use must all be considered.

Features

• Castle Creations Sidewinder 3 Waterproof ESC
• Castle 1406 4600Kv Sensored Brushless Motor
• 2S–3S LiPo Compatible
• 6–8 Cell NiMH Compatible
• Programmable Throttle Curve
• Programmable Brake Curve
• Adjustable Drag Brake
• Adjustable Punch Control
• Auto LiPo Cutoff
• Programmable Reverse Type
• Castle Link Compatible
• Rebuildable Motor Design
• Replaceable Motor Wires
• 4mm Castle Bullet Motor Connectors
• Waterproof ESC Design

ESC Specifications

Input Voltage: 2S–3S LiPo / 6–8 Cell NiMH

BEC: 5.0V Fixed / 2A

Brake: Proportional

Reverse: Yes, can be disabled

On/Off Switch: Yes

Motor Connectors: 4mm Female Bullet

Cooling Fan: Optional, NOT included

Dimensions: 49 × 38 × 20mm / 1.93 × 1.48 × 0.79"

Weight with Wires: 55.5g / 1.96 oz

Motor Specifications

Motor: Castle 1406

Kv Rating: 4600Kv

Input: 2S–3S LiPo

Maximum RPM: 100,000

Diameter: 36mm / 1.42"

Length: 49.5mm / 1.95"

Motor Weight with Wires: 197g / 6.9 oz

Shaft Diameter: 3.17mm / 1/8"

Shaft Length: 15mm

Mounting Holes: M3 @ 25mm

Connectors: 4mm Male Castle Bullet

Includes

• (1) Castle Sidewinder 3 ESC
• (1) Castle 1406 4600Kv Sensored Brushless Motor
• Driver's Ed / Quick Start Documentation
• Decal Sheet

⚠️ IMPORTANT – SENSORED MOTOR / SENSORLESS ESC

The included 1406 4600Kv motor is a sensored motor, but the Sidewinder 3 ESC does NOT support sensored operation.

Therefore, the motor operates sensorless when used with the included Sidewinder 3 ESC. A compatible sensored ESC would be required to use the motor's sensored functionality.

⚠️ BATTERY CONNECTOR REQUIRED

The Sidewinder 3 does not come ready with a battery connector installed. A compatible battery connector must be installed before operation.

Important

THIS LISTING IS FOR THE CASTLE SIDEWINDER 3 ESC + 1406 4600KV MOTOR COMBO ONLY.

Battery, battery connector, pinion gear, cooling fan, Castle Link programmer, vehicle, and other accessories are NOT included unless specifically listed above.

Although the ESC has a waterproof design, it is NOT intended to be operated while completely submerged.

Monitor motor and ESC temperatures carefully. Castle specifies that temperatures should never exceed 180°F.

Pictures are for reference only.
