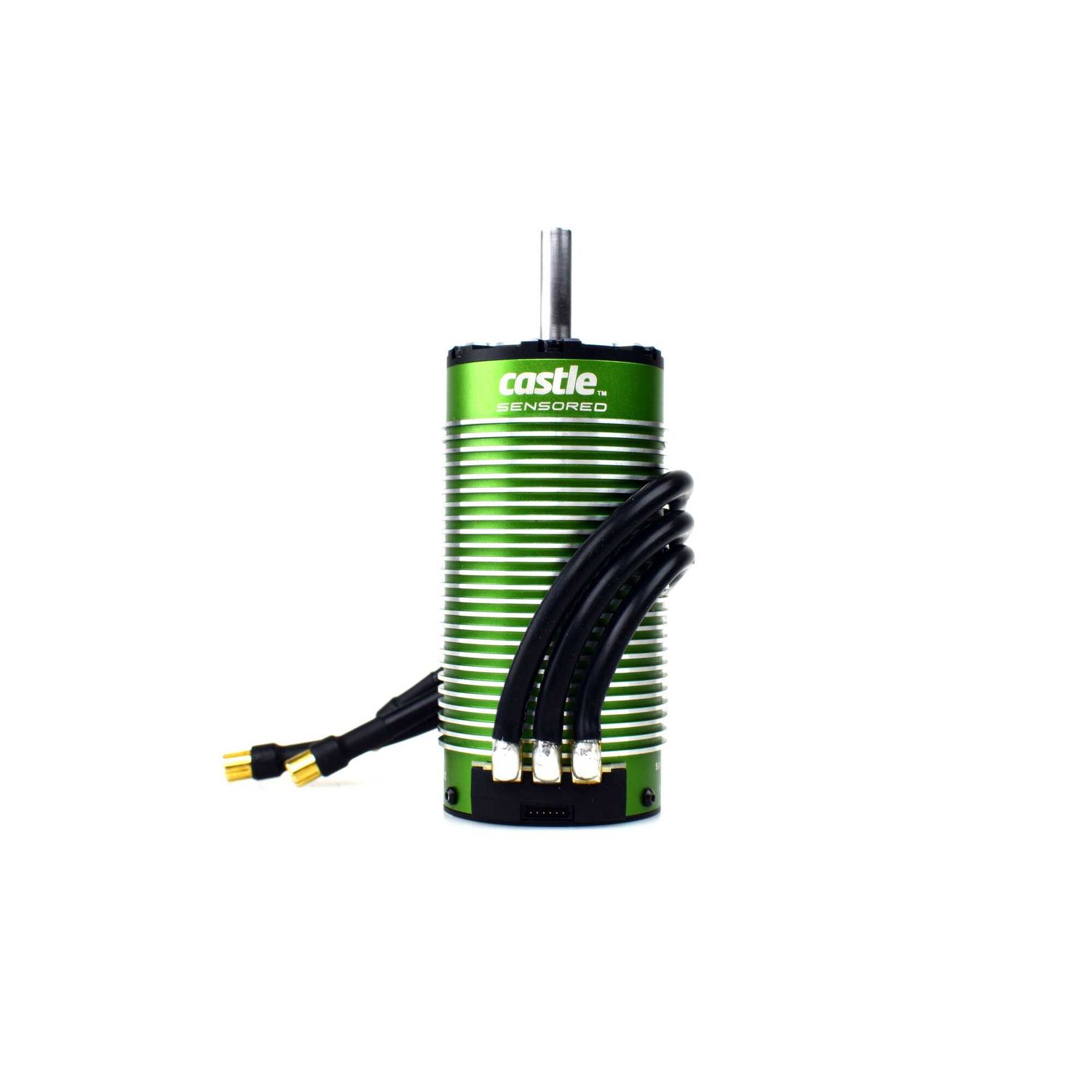

Castle Creations 2028 Extreme 800Kv Sensored Brushless Motor – 8mm Bullet

Part Number: CSE060006400 / 060-0064-00

Take large-scale RC performance to the extreme with the Castle Creations 2028 Extreme 800Kv Sensored Brushless Motor.

Built for demanding 1/5 scale and large-scale RC applications, the 2028 Extreme combines massive power capability with Castle's advanced sensored technology for smooth startups, precise throttle control, excellent torque, and high efficiency.

Castle's improved 4-pole, 12-slot design is engineered for increased efficiency and reduced heat, making this motor an excellent power upgrade for large and heavy RC vehicles.

Features

• 2028 Extreme 800Kv Sensored Brushless Motor
• Improved 4-Pole, 12-Slot Design
• Sensored & Sensorless Operation
• SmartSense™ Technology
• QUIETSENSE™ Technology
• High-Temperature Neodymium Sintered Magnets
• High-Strength Kevlar-Wrapped Rotor
• Oversized NMB Bearings
• Vibration-Dampening System
• Low-Resistance Stator Design
• Dual Sensor Ports for Flexible Installation
• Water-Resistant Motor Design
• 8mm Bullet Connectors
• 8mm Motor Shaft
• Up to 12S LiPo Capability
• Up to approximately 10 HP burst output in appropriate applications

Includes

• (1) Castle Creations 2028 Extreme 800Kv Sensored Brushless Motor
• 8.0mm Male Bullet Connectors
• 250mm Sensor Wire

⚠️ ESC NOT INCLUDED

THIS PRODUCT INCLUDES THE MOTOR ONLY.

A compatible Electronic Speed Control (ESC) is required and sold separately.

Castle recommends the Cobra 5 ESC for this motor.

The Mamba Monster X 8S may also be used in appropriate applications, but requires changing the motor connections to compatible 6.5mm bullets.

Specifications

• Motor Type: Sensored Brushless
• Kv Rating: 800Kv
• Maximum Input Voltage: 12S LiPo
• Maximum RPM: 45,000
• Motor Length: 4.4 in (112.7mm)
• Motor Diameter: 2.2 in (56.3mm)
• Weight with Wires: 44 oz (1.25kg / 2.75 lb)
• Shaft Diameter: 8mm
• Shaft Length: 30mm
• Motor Connectors: 8.0mm Male Bullets
• Sensor Wire: 250mm
• Mounting Holes: 4mm @ 30mm
• Running Modes: Sensored & Sensorless
• Cooling Fan: Available Separately

Recommended Applications

Ideal for extreme large-scale RC applications, including:

• 1/5 Scale RC Vehicles
• Gas-to-Electric Conversions
• Losi DBXL-E
• ARRMA Kraton 8S
• ARRMA Outcast 8S
• Traxxas X-Maxx
• Traxxas XRT
• Other compatible large-scale RC platforms

Maximum Recommended Vehicle Weight

• 4WD: Less than 25 lb
• 2WD: Less than 30 lb

Proper gearing and temperature monitoring are critical in high-power large-scale applications.

⚠️ Important Operating Information

Motor temperature should never exceed 180°F (82°C). Excessive heat can permanently damage the motor magnets.

Do not use motor mounting screws that extend more than 5mm into the motor, as screws that are too long can damage the motor windings.

Always verify gearing, ESC compatibility, battery voltage, drivetrain capabilities, and vehicle weight before operation.

Warranty Claims

Any warranty-related issues or claims must be handled directly through Castle Creations.

GOAT Hobbies does not process warranty claims for this product. Warranty eligibility, coverage, approval, replacement, or repair is determined solely by Castle Creations in accordance with their current policies and terms.

Please retain your proof of purchase, as it may be required by the manufacturer.
