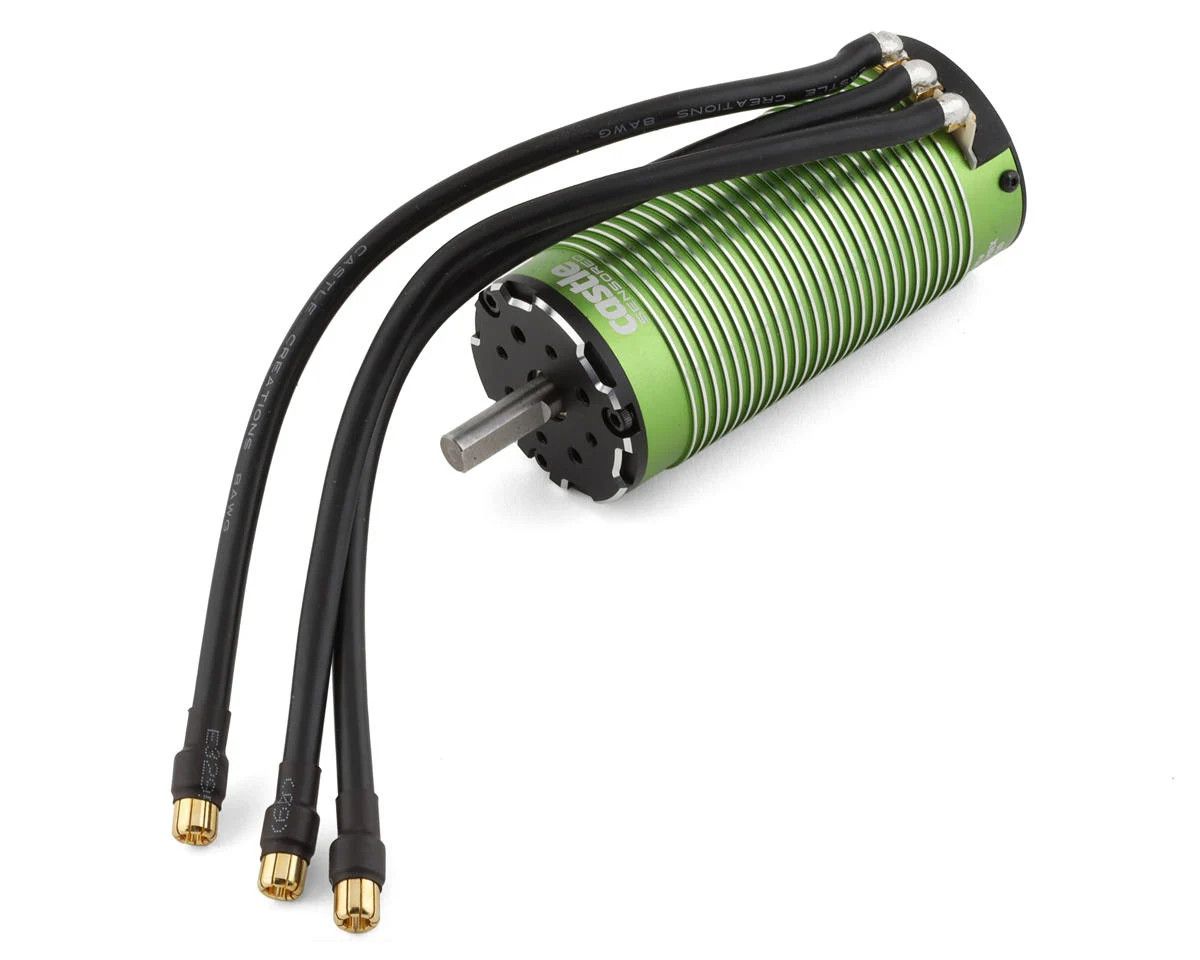

Castle Creations 1721-1260Kv Sensored Brushless 4-Pole Motor

Part Number: CSE060010000 / 060-0100-00

Upgrade your large-scale RC with the Castle Creations 1721-1260Kv Sensored Brushless Motor, designed to deliver an excellent combination of power, torque, efficiency, and smooth throttle control.

The 1721-1260Kv is an excellent upgrade for large-scale vehicles that need more punch and cooler operation while maintaining a practical Kv for bashing and high-performance applications.

Features

• 1721-1260Kv Sensored Brushless Motor
• Improved 4-Pole, 12-Slot Design
• SmartSense™ Sensored Operation
• Ultra-Efficient Sensorless Operation
• QUIETSENSE™ Technology
• High-Temperature Neodymium Sintered Magnets
• High-Strength Kevlar-Wrapped Rotor
• Oversized NMB Bearings
• Vibration-Dampening System
• Low-Resistance Stator Design
• 3S–8S LiPo Compatible
• 8mm Male Bullet Connectors
• 8mm Motor Shaft
• Water-Resistant Motor Design
• Maximum 45,000 RPM

Includes

• (1) Castle Creations 1721-1260Kv Sensored Brushless Motor

⚠️ ESC NOT INCLUDED

THIS PRODUCT INCLUDES THE MOTOR ONLY.

A compatible Electronic Speed Control (ESC) is required and sold separately.

Castle recommends a compatible high-power ESC such as the Cobra 5 or Mamba XLX2.

Always verify ESC, battery, connector, and vehicle compatibility before installation.

Specifications

• Motor Type: Sensored Brushless
• Kv Rating: 1260Kv
• Input Voltage: 3S–8S LiPo
• Maximum RPM: 45,000
• Motor Length: 101.2mm (3.98 in)
• Motor Diameter: 47.6mm (1.87 in) at cooling fins
• Motor Can Diameter: 46mm
• Weight with Wires: 775.6g / 1.71 lb
• Shaft Diameter: 8mm
• Shaft Length: 22mm
• Motor Connectors: 8mm Male Bullets
• Mounting Holes: M3 & M4 @ 25.4mm
• Running Modes: SmartSense™ Sensored & Sensorless
• Optional Cooling Fan: Castle 011-0162-00

Recommended Applications

Ideal for select 1/5, 1/6 and 1/7 scale vehicles up to approximately 25 lb ready-to-run, including compatible:

• Traxxas X-Maxx
• Traxxas XRT
• ARRMA Kraton 8S
• ARRMA Outcast 8S
• ARRMA Limitless
• ARRMA Infraction
• ARRMA Typhon
• Other compatible large-scale RC platforms

⚠️ Important Operating Information

Motor temperature should never exceed 180°F (82°C). Excessive heat can permanently damage the motor.

Proper gearing and temperature monitoring are critical in high-power applications.

Always verify gearing, ESC compatibility, battery voltage, connectors, drivetrain capabilities, and vehicle weight before operation.

Warranty Claims

Any warranty-related issues or claims must be handled directly through Castle Creations.

GOAT Hobbies does not process warranty claims for this product. Warranty eligibility, coverage, approval, replacement, or repair is determined solely by Castle Creations according to their current policies and terms.

Please retain your proof of purchase, as it may be required by the manufacturer.

Shipping Information

• Estimated Shipping Weight: 2.5 lb
• Estimated Shipping Dimensions: 8 × 6 × 5 in
