3375 VXL-3M ELEC SPD CNTRL

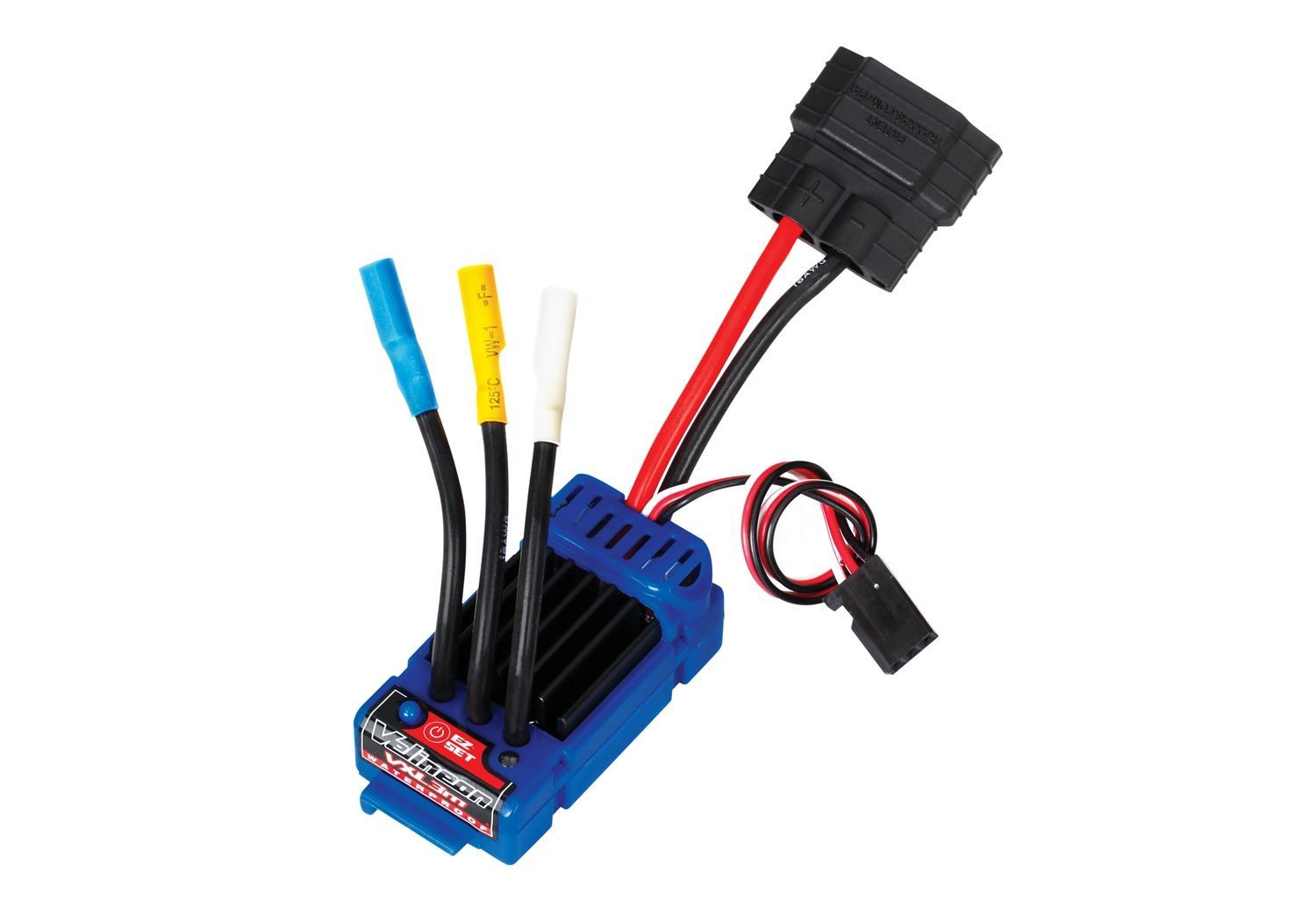

Traxxas Velineon VXL-3m Waterproof Brushless ESC

Part Number: 3375 / TRA3375

The Traxxas Velineon VXL-3m ESC is a compact, waterproof sensorless brushless speed control designed for Traxxas 1/16 scale VXL vehicles. It supports 2S–3S LiPo power, features built-in low-voltage detection, thermal protection, and Traxxas EZ-Set one-button programming.

Application / Compatibility

Designed for select Traxxas 1/16 vehicles including:

• 1/16 E-Revo VXL
• 1/16 Slash 4X4 VXL
• 1/16 Summit VXL
• Select 1/16 Rally / Fiesta VXL models

Can also be used as a brushless upgrade on compatible 1/16 Traxxas vehicles. Always verify Part Number 3375 for your specific model.

Features

• Sensorless Brushless ESC
• 2S–3S LiPo Compatible
• 6–12 Cell NiMH Compatible
• Waterproof Design
• Traxxas High-Current Battery Connector
• 3.5mm Gold-Plated Motor Bullet Connectors
• Two-Stage Low-Voltage Detection
• Two-Stage Thermal Protection
• Locked Rotor Protection
• Battery Over-Voltage Protection
• EZ-Set One-Button Programming
• Multi-Color LED
• Aluminum Heatsink
• 6.0V BEC
• 16-Gauge Maxx Cable

Drive Modes

• Sport Mode: Forward / Brake / Reverse
• Race Mode: Forward / Brake
• Training Mode: 50% Forward / Brake / 50% Reverse

Specifications

• Input Voltage: 2S–3S LiPo / 6–12 Cell NiMH
• Motor Type: Sensorless Brushless
• Continuous Current: 52A
• Peak Current: 326A
• BEC Voltage: 6.0V
• Motor Connectors: 3.5mm Bullet
• Battery Connector: Traxxas High-Current Connector
• Dimensions: 26.5 × 46.5 × 22mm
• Weight: 38g / 1.34 oz

Includes

• (1) Traxxas Velineon VXL-3m Waterproof Brushless ESC

Motor, battery, and other electronics are NOT included.

Important

This ESC is designed for sensorless brushless motors and supports a maximum of 3S LiPo / 11.1V nominal.

Always verify motor, battery, gearing, connector, and vehicle compatibility before installation.
