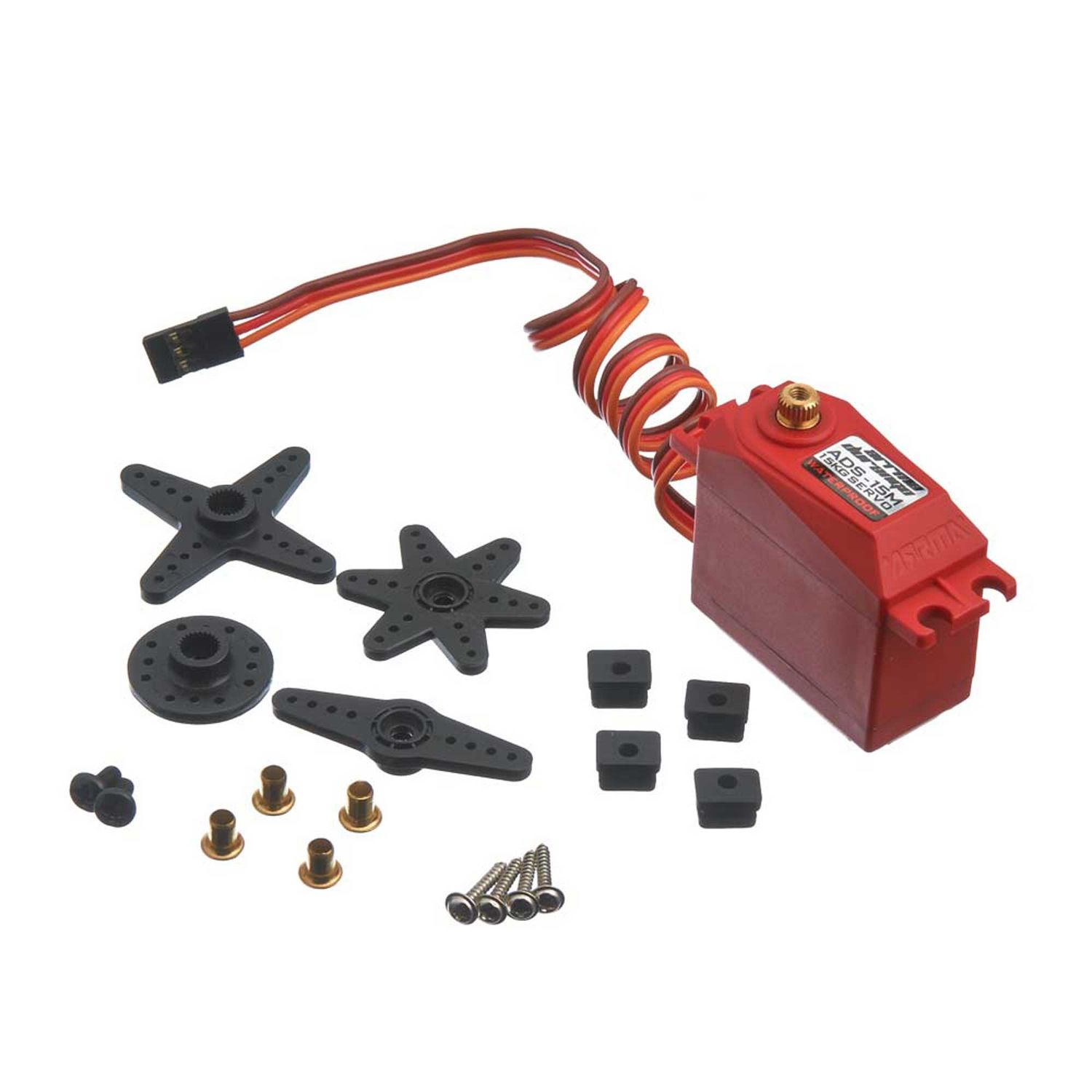

ARAM1025 AR390139 ADS-15M V2 15kg Waterproof Servo Red

ARRMA ADS-15M V2 15kg Waterproof Servo, Red

Brand: ARRMA

Part Number: ARAM1025

Application: Cars, Trucks

Bearing: Dual Ball Dearing

Bushing Or Bearing: Bearing

Connector Type: Universal

Connector Wire Length: 11.8" (300 mm)

Gear Type: Metal

Input Voltage: 6.0V ~ 7.2V

Manufacturer #: AR390139

Maximum Servo Speed: 0.16 sec/60 deg @ 6.0V, 0.14 sec/60 deg @ 7.2V

Maximum Servo Torque: 195 oz/in (14 kg/cm) @ 6.0V, 208 oz/in (15 kg/cm) @ 7.2V

Product Height: 1.48" (38 mm)

Product Length: 1.57" (40 mm)

Product Width: 0.78" (20 mm)

Programmable: No

Servo Operating Voltage: 6.0 - 7.4V (HV)

Servo Size Category: Standard

Servo Type: Analog

Spline Count: 25 - Tooth

Water-Resistant: Yes

Genuine ARRMA servo made for the 1/10 KRATON 4S 4X4 RTR Brushless Speed Truck, Red, 1/10 OUTCAST 4S 4X4 RTR Brushless Stunt Truck, Bronze, 1/7 FELONY 6S AVC 4X4 RTR Brushless All-Road Street Bash and more. It is the factory part, so it bolts in where the original came from. Use it to repair worn or broken parts, or keep one on hand so a broken part doesn't end your day of bashing.

Compatibility

• 1/10 KRATON 4S 4X4 RTR Brushless Speed Truck, Red
• 1/10 OUTCAST 4S 4X4 RTR Brushless Stunt Truck, Bronze
• 1/7 FELONY 6S AVC 4X4 RTR Brushless All-Road Street Bash
• 1/7 INFRACTION 6S 4X4 RTR Brushless All-Road Street Bash
• 1/7 INFRACTION 6S AVC 4X4 RTR Brushless All-Road Street Bash
• 1/7 LIMITLESS 6S 4X4 RTR Brushless Street Speed
• 1/7 MOJAVE 6S 4X4 RTR Brushless Desert Truck
• 1/7 MOJAVE 6S EXB 4X4 Roller Brushless Desert Truck, Black
• 1/8 KRATON 6S 4X4 Roller Brushless Speed Truck, Black
• 1/8 KRATON 6S 4X4 RTR Brushless Speed Truck
• 1/8 NOTORIOUS 6S 4X4 RTR Brushless Stunt Truck
• 1/8 OUTCAST 6S 4X4 RTR Brushless Stunt Truck
• 1/8 OUTCAST 6S 4X4 RTR Brushless Stunt Truck, Limited Edition
• 1/8 TALION 6S 4X4 RTR Brushless Speed Truck, Red/Black
• 1/8 TYPHON 6S 4X4 RTR Brushless Buggy

GOOD TO KNOW

• Check this part number against your vehicle's manual or exploded view before ordering
• Not sure what you need? Bring your truck to our Davie or Doral store and we'll help you find the right part
• Pictures are for reference only
• We ship to your door, or you can pick it up at our Davie or Doral store.

Product Details

• UPC: 5052127015035
