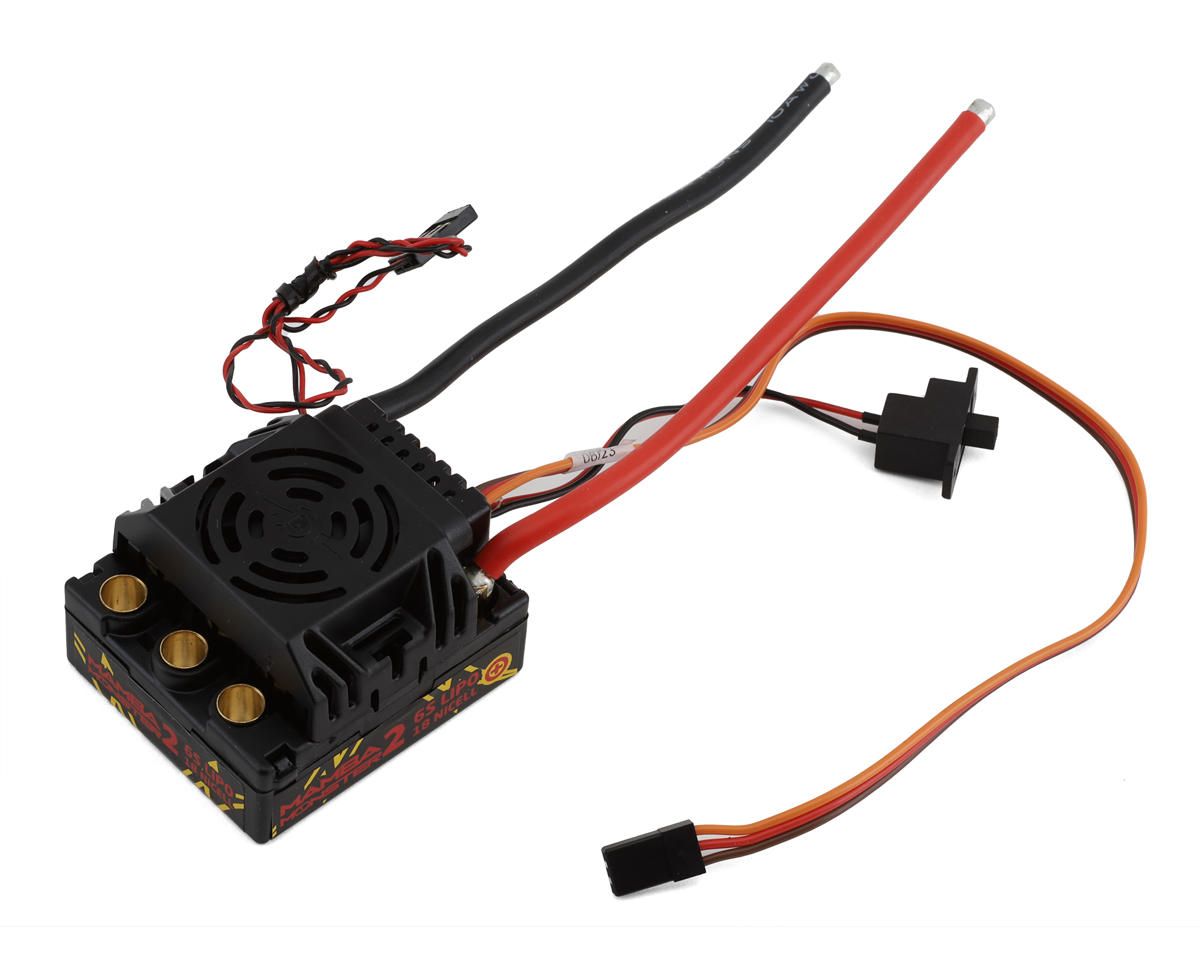

CSE010010800 1/8 MAMBA Monster 2 25V ESC,Waterproof 010-0108-00

Castle Creations Mamba Monster 2 1/8 25.2V Waterproof Brushless ESC

Part Number: CSE010-0108-00 / 010-0108-00

Bring proven Castle power to your 1/8 scale setup with the Castle Creations Mamba Monster 2 Waterproof Brushless ESC.

Designed for high-performance 1/8 scale buggies, truggies, on-road vehicles, and compatible 1/10 monster trucks, the Mamba Monster 2 supports up to 6S LiPo power and offers extensive tuning through the Castle Link programming system.

Features

• 2S–6S LiPo Compatible
• Waterproof ESC Design
• Sensorless Brushless & Brushed Motor Support
• Adjustable Internal BEC
• 30mm Removable Cooling Fan
• Proportional Braking
• Reverse with Racing Lockout Option
• LED Error Codes
• Transmitter Programming
• Castle Link Programmable
• B-LINK Bluetooth Compatible
• Firmware Upgradeable
• 6.5mm Female Motor Bullet Connectors
• Designed for Vehicles Up to 15 lbs When Properly Equipped

Includes

• (1) Castle Creations Mamba Monster 2 ESC
• Driver's Ed / Quick Start Guides
• Castle Decal Sheet

⚠️ Battery Connector Required – Soldering Required

• BATTERY CONNECTOR IS NOT INCLUDED OR PRE-INSTALLED.
• A compatible high-current battery connector must be installed before use.
• SOLDERING IS REQUIRED.
• Castle recommends a suitable high-current connector such as their 6.5mm Castle Connectors.

⚠️ Sensorless ESC

• The Mamba Monster 2 is NOT a sensored ESC.
• It can operate a compatible sensored brushless motor, but the motor will operate in sensorless mode.
• For true sensored operation, a compatible sensored ESC such as the Castle Monster X or Cobra 8 is required.

Specifications

• Application: 1/8 Scale
• Input Voltage: 2S–6S LiPo
• Maximum Voltage: 25.2V
• BEC Output: 5.0V–7.0V Adjustable
• BEC Peak Current: 5A
• Default BEC Voltage: 5.5V
• Motor Type: Sensorless Brushless / Brushed
• Sensored Operation: No
• Motor Connectors: 6.5mm Female Bullets
• Cooling Fan: 30mm Removable
• Waterproof: Yes
• Programmable: Yes
• Castle Link Compatible: Yes
• Telemetry: No
• Data Logging: No
• Dimensions: 2.19 × 1.86 × 1.33 in (56 × 47 × 34mm)
• Weight: 3.93 oz (111.5g) without battery connector

Recommended Applications

• Suitable for compatible:
• 1/8 Scale Buggies
• 1/8 Scale Truggies
• 1/8 Scale On-Road Vehicles
• 1/10 Scale Monster Trucks
• Vehicles under approximately 15 lbs when properly configured

Castle recommends high-quality LiPo batteries of 5000mAh or larger with adequate continuous discharge capability for high-power applications.

Not recommended for high-speed 1/8 scale and larger applications such as ARRMA Infraction, ARRMA Limitless, or Traxxas XO-1.

⚠️ Important Waterproof Notice

• Although the ESC itself is waterproof, it is not designed for continuous operation while submerged.
• The cooling fan is NOT waterproof and must be removed before operating the vehicle in wet conditions.

Warranty Claims

• Any warranty-related issues or claims must be handled directly through Castle Creations.

Warranty eligibility, coverage, approval, replacement, or repair is determined solely by Castle Creations according to their current policies and terms.

Please retain your proof of purchase, as it may be required by the manufacturer.

Product Details

• Brand: Castle Creations
• UPC: 819326010118

Pick up at Goat Hobbies in Davie or Doral, FL — or we ship it to you.
