CSE010016606 Castle Creations Copperhead 10 Waterproof 1/10 Sensored Combo w/Slate (2280Kv)

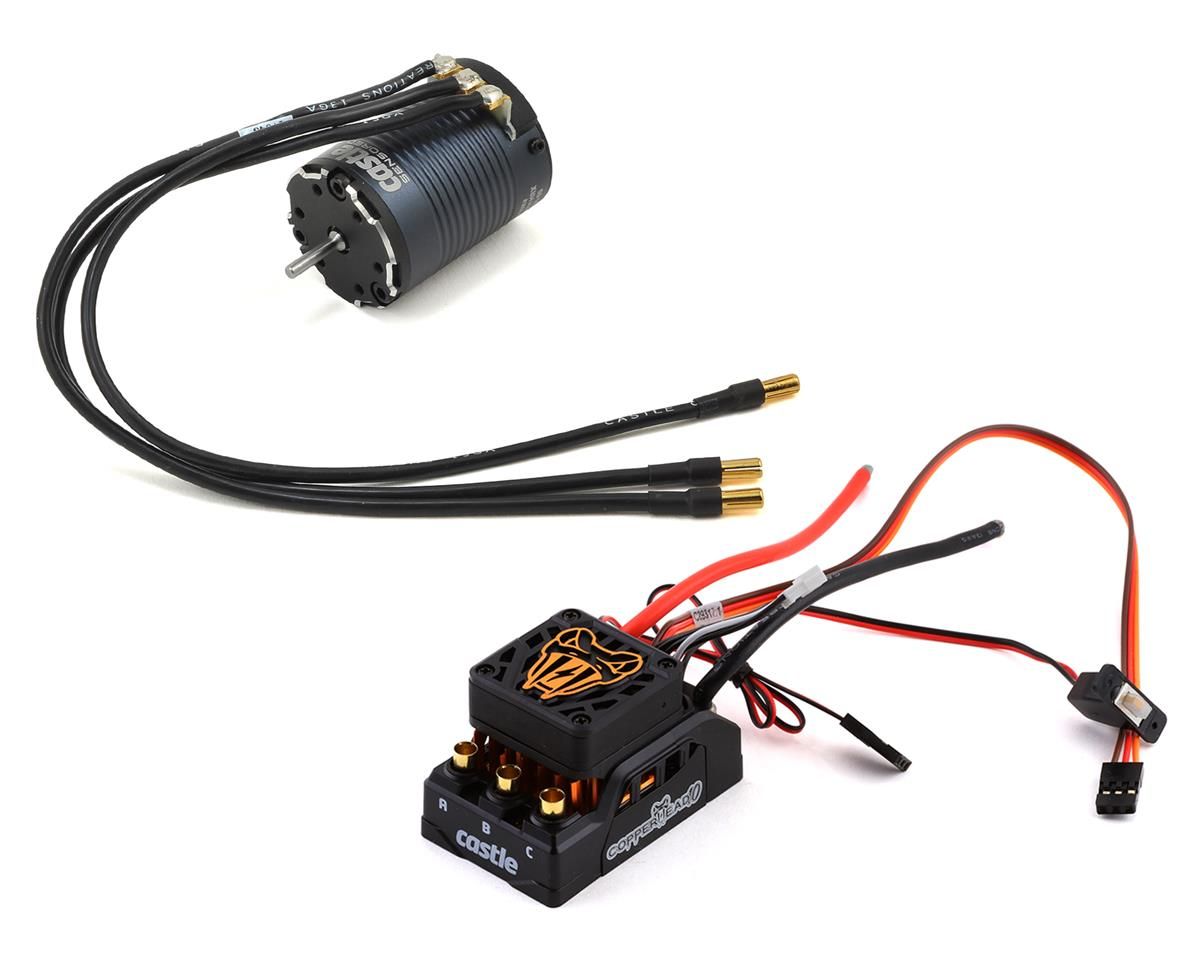

Castle Creations Copperhead 10 Crawler Edition ESC + 1406 2280Kv Sensored Motor Combo

Part Number: CSE010-0166-06 / 010-0166-06

The Castle Creations Copperhead 10 Crawler Edition combines the Copperhead 10 waterproof ESC with a Castle 1406 2280Kv sensored brushless motor, delivering smooth low-speed control, strong torque, and efficient brushless power for 1/10 RC rock crawlers and trail rigs.

Designed for 2S–4S LiPo operation, Castle's SMARTSENSE technology uses the motor sensors for exceptionally smooth startups and low-speed drivability, then transitions to efficient sensorless operation once the motor is running.

Compatibility

• Ideal for compatible:
• 1/10 Rock Crawlers
• Trail Trucks / Trail Rigs
• Touring Cars
• Stadium Trucks
• Buggies
• Custom 1/10 RC Builds
• Maximum recommended vehicle weight for crawling: 9 lbs.

Features

• Castle Copperhead 10 ESC
• Castle 1406 2280Kv Sensored Brushless Motor
• 2S–4S LiPo Compatible
• SMARTSENSE Technology
• Excellent Low-Speed Crawler Control
• Smooth Sensored Startups
• CRYO-DRIVE Technology
• Waterproof ESC Design
• Data Logging Lite
• Telemetry Capable
• Castle Link Programmable
• B-LINK Bluetooth Compatible
• Adjustable 5.5V / 7.5V BEC
• 6A Peak BEC
• Removable 30mm Cooling Fan
• 4.0mm Motor Bullet Connectors
• Proportional Brake
• Reverse Capability

Includes

• (1) Castle Copperhead 10 ESC
• (1) Castle 1406 2280Kv Sensored Motor
• (1) Sensor Harness
• (1) Sensor Port Dust Cover
• Copperhead Decals
• Quick Start Guide
• Audible Alert Reference Chart

⚠️ BATTERY CONNECTOR REQUIRED – SOLDERING REQUIRED

• BATTERY CONNECTOR IS NOT INCLUDED OR PRE-INSTALLED.
• Your preferred compatible battery connector must be installed on the ESC before use.
• SOLDERING IS REQUIRED.

Compatible high-current connectors such as Castle 4.0mm Polarized Connectors, Traxxas Power Connectors, XT90, or Deans Ultra Plugs are recommended.

Specifications

• ESC:
• Input Voltage: 2S–4S LiPo
• BEC: 5.5V / 7.5V Selectable
• BEC Peak Current: 6A
• Motor Connectors: 4.0mm Female Bullets
• Dimensions: 2.19 × 1.39 × 1.33"
• Weight: 2.50 oz / 70.9g
• Waterproof: Yes
• Data Logging: Yes
• Telemetry Capable: Yes
• Motor:
• Motor: Castle 1406 Sensored
• Kv Rating: 2280Kv
• Input Voltage: 2S–4S LiPo
• Maximum RPM: 100,000
• Length: 49.5mm
• Diameter: 36mm
• Shaft Diameter: 3.17mm / 1/8"
• Shaft Length: 15mm
• Weight: 197g / 6.9 oz
• Motor Connectors: 4mm Male Bullets

⚠️ Important

• The ESC is waterproof, but the cooling fan is NOT waterproof and must be removed before running in wet conditions.
• The motor sensor board is moisture protected, but the sensor connections are not water resistant.
• Always verify vehicle weight, gearing, battery voltage, drivetrain capability, motor fitment, and available installation space before use.

Warranty / Service

• Any warranty-related issues or claims must be handled directly through Castle Creations.
• Warranty eligibility, coverage, repair, or replacement is determined by Castle Creations according to their current policies.

Product Details

• Brand: Castle Creations
• UPC: 819326012327
