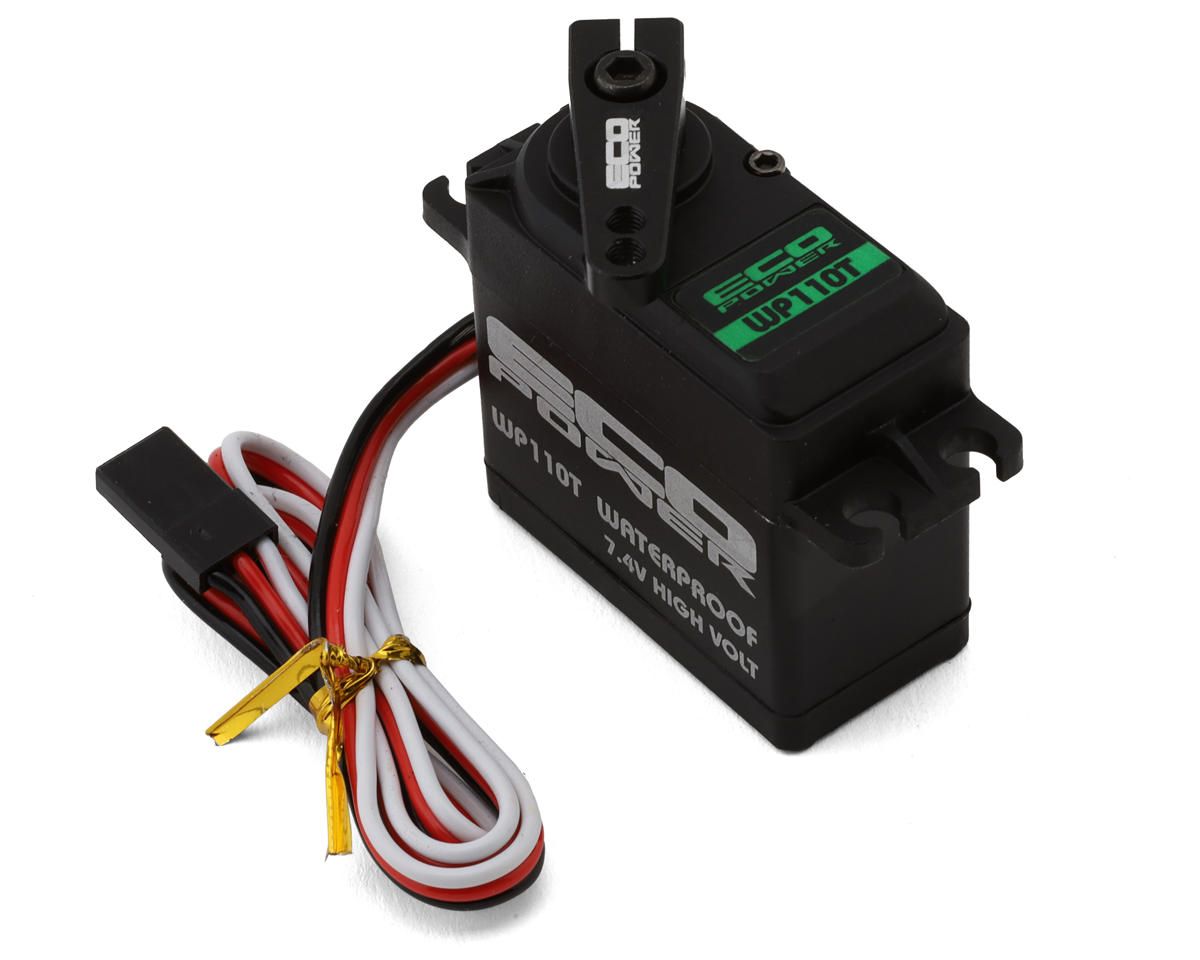

EcoPower WP110T Waterproof High Torque Metal Gear Servo

A standard-size metal-gear steering servo, sealed against water for wet, muddy runs. Recommended for 1/10 Scale Surface. Torque: 175 oz-in (12.6 kg-cm) @ 4.8V, 280 oz-in (20.1 kg-cm) @ 6.0V, 334 oz-in (23.9 kg-cm) @ 7.4V. Speed: 0.18/60° sec @ 4.8V, 0.16/60° sec @ 6.0V, 0.14/60° sec @ 7.4V.

Specifications

• Brand: EcoPower
• Part number: ECP-110T
• Servo Model: WP110T
• Recommended Application: 1/10 Scale Surface
• Waterproof: Yes
• Operating Voltage: 4.8V - 7.4V
• Operating Temperature: 14° to 140° F (-10 to +60° C)
• Operating Speed @ 4.8V: 0.18/60° sec
• Operating Speed @ 6.0V: 0.16/60° sec
• Operating Speed @ 7.4V: 0.14/60° sec
• Dynamic Torque @ 4.8V: 175 oz-in (12.6 kg-cm)
• Dynamic Torque @ 6.0V: 280 oz-in (20.1 kg-cm)
• Dynamic Torque @ 7.4V: 334 oz-in (23.9 kg-cm)
• Motor Type: Cored DC
• Output Shaft: 25 Tooth
• Gears: Metal

Features

• Includes one aluminum clamping servo horn
• Affordable option for 1/10 monster trucks, 2WD and 4WD 1/10 buggies, boats and more!
• Waterproof up to 1 meter
• 280 oz-in of torque @ 6.0V, and .16 transit speed
• Digital circuitry
• Cored motor
• Metal gears
• Lightweight plastic upper and lower case with black anodized aluminum center case
• Dual ball bearings
• 220mm servo lead
