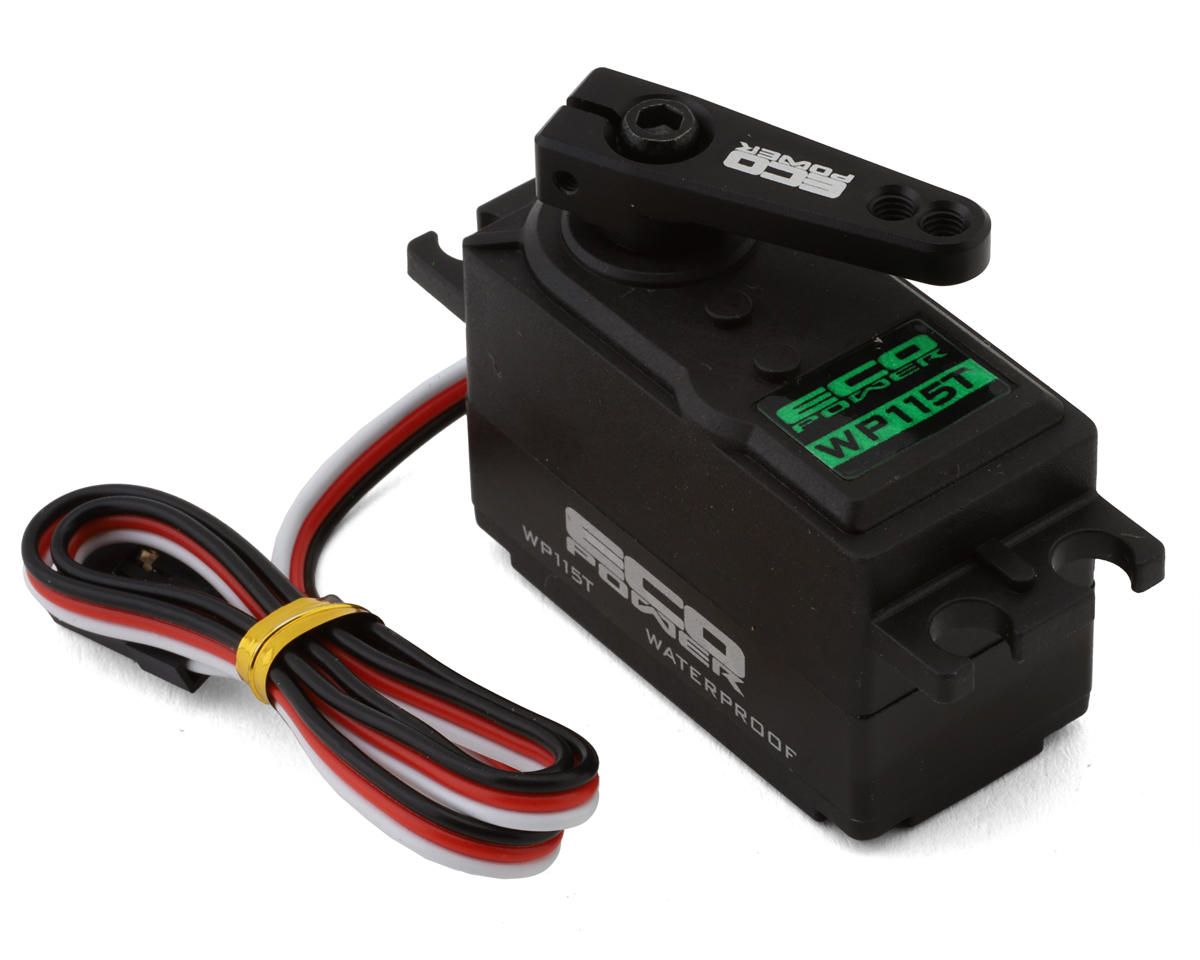

ECP-115T EcoPower WP115T Low Profile Waterproof High Torque Metal Gear Servo

EcoPower WP115T Low Profile Waterproof High Torque Metal Gear Servo

A low-profile metal-gear steering servo, sealed against water for wet, muddy runs. Recommended for 1/10 On-Road & Off-Road. Torque: 108 oz-in (4.4 kg-cm) @ 4.8V, 127 oz-in (6.4 kg-cm) @ 6.0V, 178 oz-in (12.8 kg-cm) @ 7.4V. Speed: 0.13/60° sec @ 4.8V, 0.10/60° sec @ 6.0V, 0.08/60° sec @ 7.4V.

Specifications

• Brand: EcoPower
• Part number: ECP-115T
• Servo Model: 115T Low Profile
• Recommended Application: 1/10 On-Road & Off-Road
• Waterproof: Yes
• Operating Voltage: 4.8V - 7.4V
• Operating Speed @ 4.8V: 0.13/60° sec
• Operating Speed @ 6.0V: 0.10/60° sec
• Operating Speed @ 7.4V: 0.08/60° sec
• Dynamic Torque @ 4.8V: 108 oz-in (4.4 kg-cm)
• Dynamic Torque @ 6.0V: 127 oz-in (6.4 kg-cm)
• Dynamic Torque @ 7.4V: 178 oz-in (12.8 kg-cm)
• Motor Type: Cored DC
• Output Shaft: 25 Tooth
• Gears: Metal
• Weight: 44.5g

Features

• Affordable option for 2WD applications or as a shift/dig servo
• 178 oz-in of torque @7.4V, and .08/60° sec transit speed
• Waterproof
• Digital circuitry
• Cored DC motor
• All metal gear drivetrain
• Includes servo horn shown in photos
• 1 Year warranty against manufacturer defects
