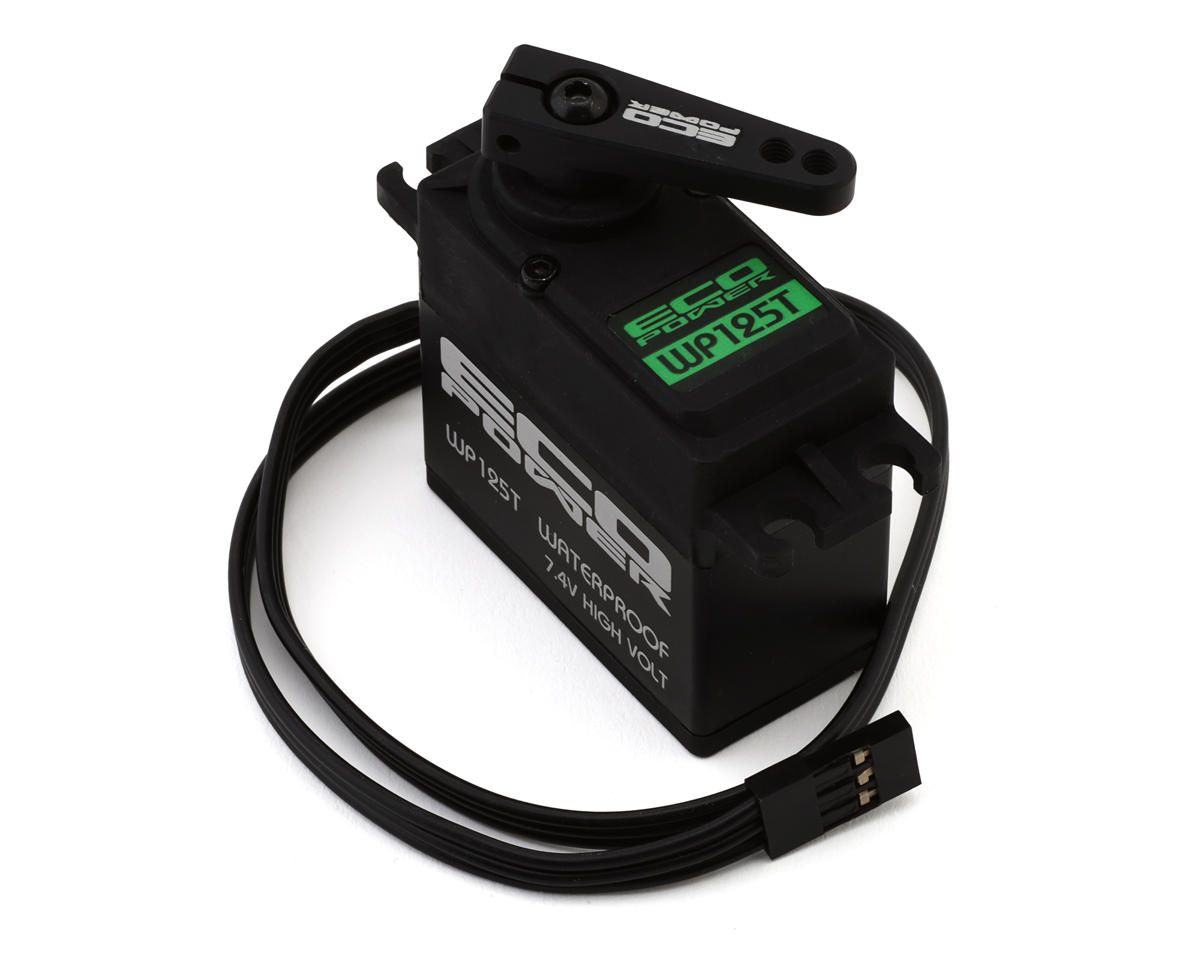

EcoPower WP125T Waterproof High Torque Metal Gear Digital Servo (HV)

A standard-size digital metal-gear steering servo, sealed against water for wet, muddy runs, high-voltage capable for more torque and speed on a 7.4–8.4 V BEC. Recommended for R/C cars and trucks. Torque: 337oz-in (24.4 kg-cm) @ 6.0V, 400oz-in (28.8 kg-cm) @ 7.4V. Speed: 0.11/60° sec @ 6.0V, 0.09/60° sec @ 7.4V.

Specifications

• Brand: EcoPower
• Part number: ECP-125T
• Application: 1/10 Surface
• Operating Voltage: 6-8.4V
• Operating Temperature: 14° to 140° F (-10 to +60° C)
• Operating Speed @ 6.0V: 0.11/60° sec
• Operating Speed @ 7.4V: 0.09/60° sec
• Dynamic Torque @ 6.0V: 337oz-in (24.4 kg-cm)
• Dynamic Torque @ 7.4V: 400oz-in (28.8 kg-cm)
• Motor Type: Coreless
• Output Shaft: 25T
• Gears: Metal
• Pulse/Frequency: 1520s / 333hz
• Dimensions: 1.56x0.79x1.53in (39.5x20x38.9mm)
• Weight: 2.5oz (70.9g)

Features

• Full metal gear construction
• Coreless motor for smooth response
• Dual-bearing design
• Waterproof up to one meter
• Enhanced waterproof sealing
• Strong holding power for off-road terrain
• Compatible with major 1/10 4WD platforms
• Servo Hardware & Grommets

What's included

• (1) WP125T Waterproof High Torque Metal Gear Digital Servo
• (1) Aluminum Clamping Servo Horn (25T)
