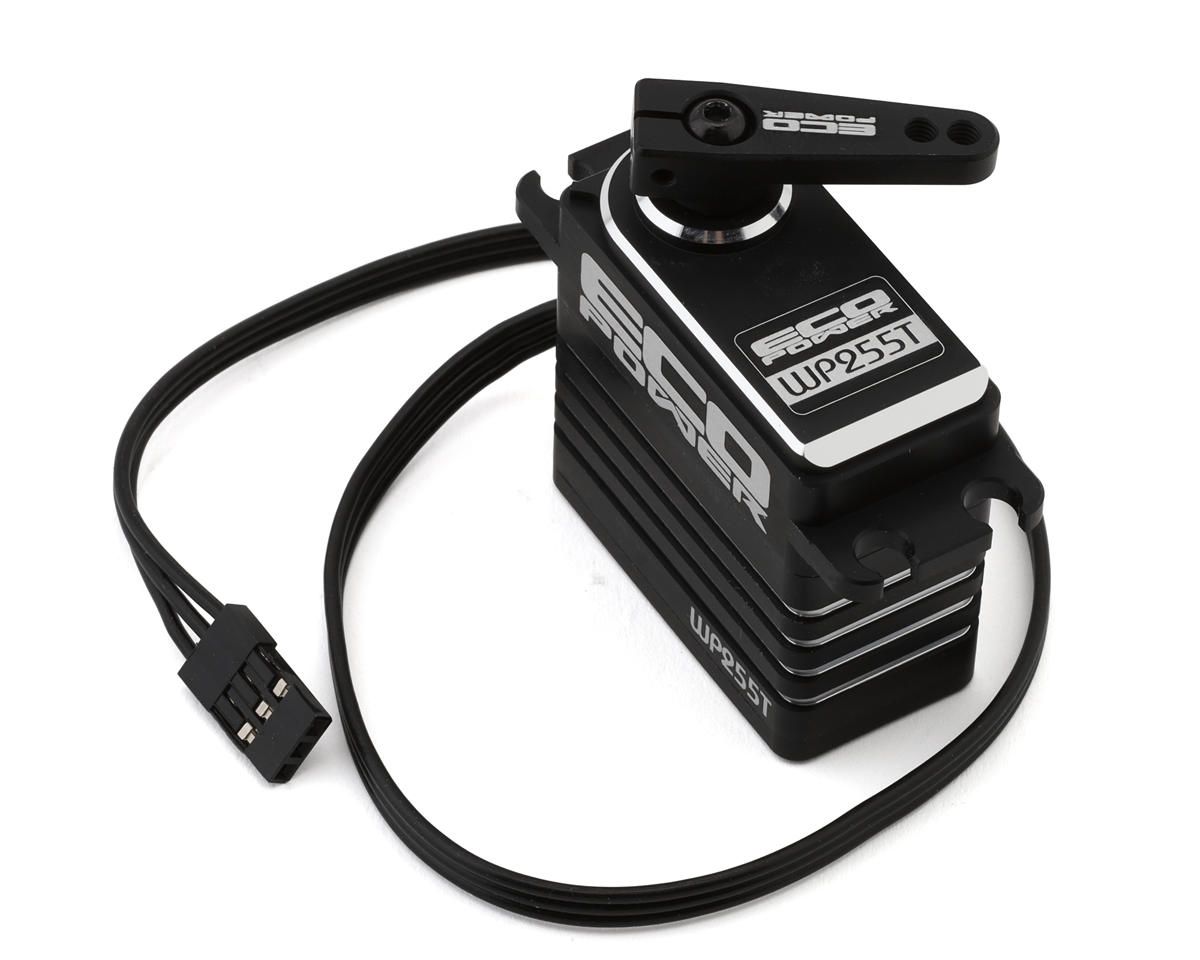

ECP-255T EcoPower WP255T Low Profile High Torque Metal Gear Brushless Servo (HV) (Waterproof) (Metal Case)

EcoPower WP255T Waterproof High Torque Metal Gear Brushless Servo (HV)

A standard-size brushless metal-gear steering servo, sealed against water for wet, muddy runs, high-voltage capable for more torque and speed on a 7.4–8.4 V BEC. Recommended for R/C cars and trucks. Torque: 574oz-in (41.3 kg-cm) @ 6.0V, 681oz-in (49 kg-cm) @ 7.4V, 758oz-in (54.5 kg-cm) @ 8.4V. Speed: 0.14/60° sec @ 6.0V, 0.12/60° sec @ 7.4V, 0.10/60° sec @ 8.4V.

Specifications

• Brand: EcoPower
• Part number: ECP-255T
• Application: 1/10, 1/8 & 1/7 Surface
• Operating Voltage: 4.8-8.4V
• Operating Temperature: 14° to 140° F (-10 to +60° C)
• Operating Speed @ 6.0V: 0.14/60° sec
• Operating Speed @ 7.4V: 0.12/60° sec
• Operating Speed @ 8.4V: 0.10/60° sec
• Dynamic Torque @ 6.0V: 574oz-in (41.3 kg-cm)
• Dynamic Torque @ 7.4V: 681oz-in (49 kg-cm)
• Dynamic Torque @ 8.4V: 758oz-in (54.5 kg-cm)
• Motor Type: Brushless Digital
• Output Shaft: 25T
• Gears: Metal
• Pulse/Frequency: 1520s / 333hz
• Dimensions: 1.56x0.79x1.55in (39.5x20x39.25mm)

Features

• 681 ounce-inches of torque at 7.4V for heavy-duty steering
• 0.12 sec transit speed for responsive control
• Brushless motor efficiency for smooth, cool operation
• Full steel geartrain for long-term durability
• Aluminum heat sink case for improved thermal management
• Waterproof gasket system rated to one meter
• Handles large 2.2-inch crawler and basher tires with ease
• Ideal for 1/7 and 1/8 scale vehicles
• Delivers premium-level specs at a mid-range price point
• Servo Hardware & Grommets

Includes

• (1) WP255T High Torque Metal Gear Brushless Servo
• (1) Aluminum Clamping Servo Horn (25T)

GOOD TO KNOW

• We ship to your door, or you can pick it up at our Davie or Doral store.
• Ask us in store if you need help choosing the right part for your model.

Product Details

• UPC: 694485090214
