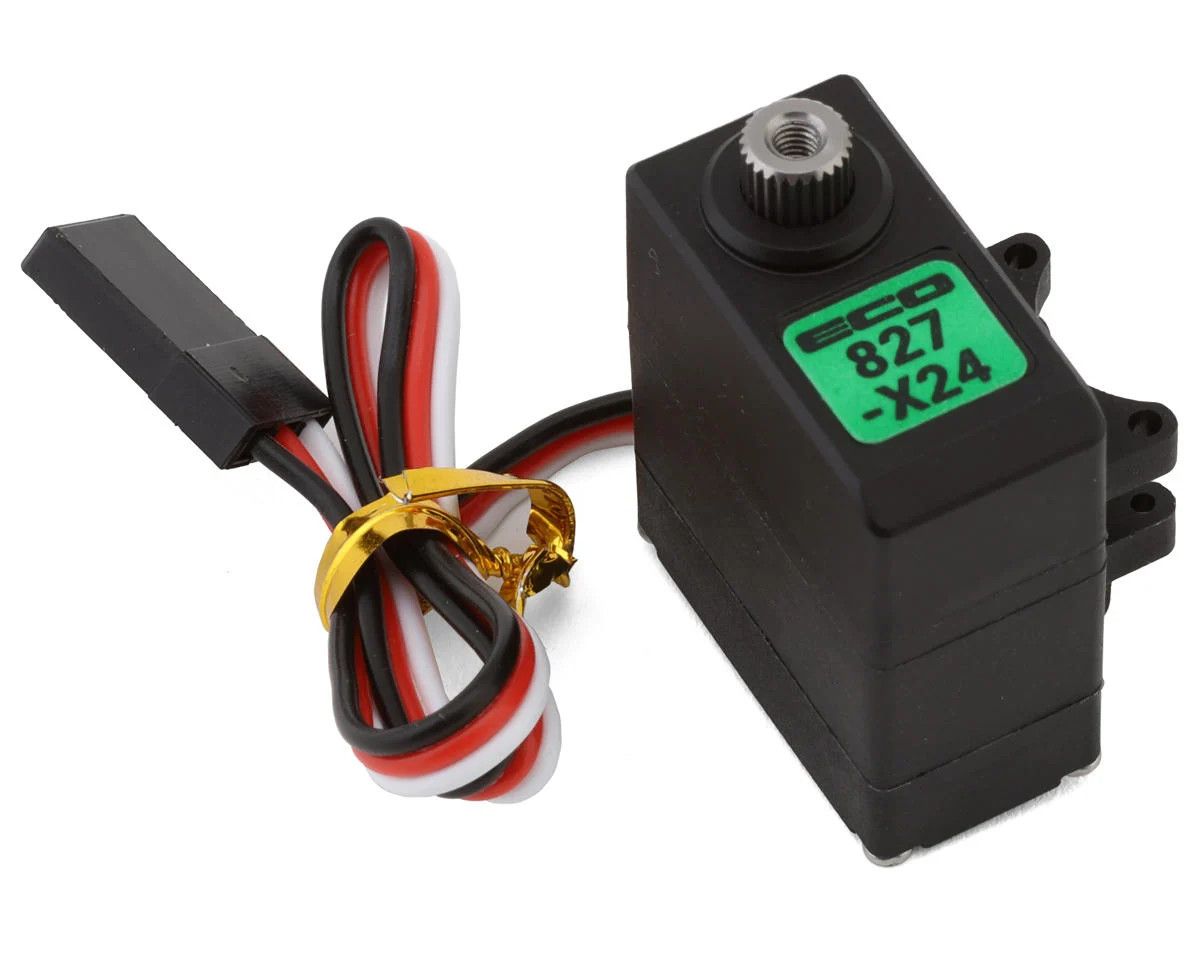

ECP-827-X24 EcoPower WP827-X24 Metal Gear Micro Servo Direct Fit For Axial™ SCX24 (HV) (Waterproof) Mini 25t
Get it today
- Davie In stock · pick up usually ready in 1 hour
- Doral In stock · pick up usually ready in 1 hour
- Ship to youShips today or tomorrow
*Tech Note: This servo is compatible with all SCX24 platforms and wheelbase EXCEPT the Deadbolt version!
The Revolution of Powerful Budget Mini Servos!
EcoPower is proud to introduce the WP827-X24 Digital Micro High-Voltage Servo! The most innovative and budget-friendly micro servo tailored specially for the Axial™ SCX24 platforms as the ultimate performance upgrade!
Design
Unlike all other traditional servos on the market, the EcoPower WP827-X24 micro Servo features a first of its kind innovative built-in direct axle and links mount system that revolutionized the game by allowing the WP827-X24 to be directly mounted to the SCX24 axles with no need for a servo mount! This brilliant mounting system provides a sturdy and rigid fit with extra clearance between the chassis rails!
High Torque & Speed
Whether you are into hardcore Comp rock crawling, backyard crawling or just hitting the trails, a high-torque and speed steering servo will always be at the top of the upgrade list, especially for rigs equipped with heavier tuning weights and wheels! This EcoPower WP827-X24 micro servo is capable of outputting 62.5oz.in (4.5Kg-CM) of torque and 0.08 sec/60 of speed at 8.4 Volts that will help your SCX24 elevate steering performance and precision to take on harder lines and harsher trails!
Robust Construction & Drivetrain
When it comes to durability and reliability, the EcoPower WP827-X24 micro servo is fitted with all metal heavy-duty gears, output shaft spline and an aluminum mini 25T servo horn to ensure maximum durability and flex-free operation under the harshest conditions! In addition, the EcoPower WP827-X24 is fully elements and waterproof! Allowing you to navigate through wet and dirt-filled trails with peace of mind!
Features
- The ultimate budget upgrade for Axial™ SCX24
- High torque and speed output
- Innovative direct axle mount
- Eliminates the need for separate servo mount
- High voltage capable of operating on up to 8.4 Volts!
- HD all metal gears and output shaft spline
- Waterproof design
- Powerful coreless motor
- Includes a CNC-machined aluminum horn with multiple mounting holes
- 1 year warranty
Includes
- (1) WP827-X24 Digital Micro Servo
- (1) Aluminum Servo Horn
- (2) Composite Servo Horns
Specifications
- Speed:
- @6.0V: 0.10 sec/60
- @8.4V: 0.08 sec/60
- Torque:
- @6.0V: 48.6oz.in (3.5Kg-CM)
- @8.4V: 62.5oz.in (4.5Kg-CM)
- Motor: Coreless
- Operating Voltage: 6.0V-8.0V
- Operating Spline: Mini 25T
- Waterproof: Yes
- Weight: 16g
- Dimensions (LxWxH): 0.9x0.47x1.25in (23x12x31.75mm)
- Tech Note: This servo is compatible with all SCX24 platforms and wheelbase EXCEPT the Deadbolt version!
- Tech Note: Do not exceed 8.4 Volt as it might damage the servo
- Tech Note: Although this servo is waterproof, submerging it under water for longer periods may degrade and decay the seal points
Product Details
- Brand: EcoPower
- Part #: ECP-827-X24
- UPC: 694485083124
