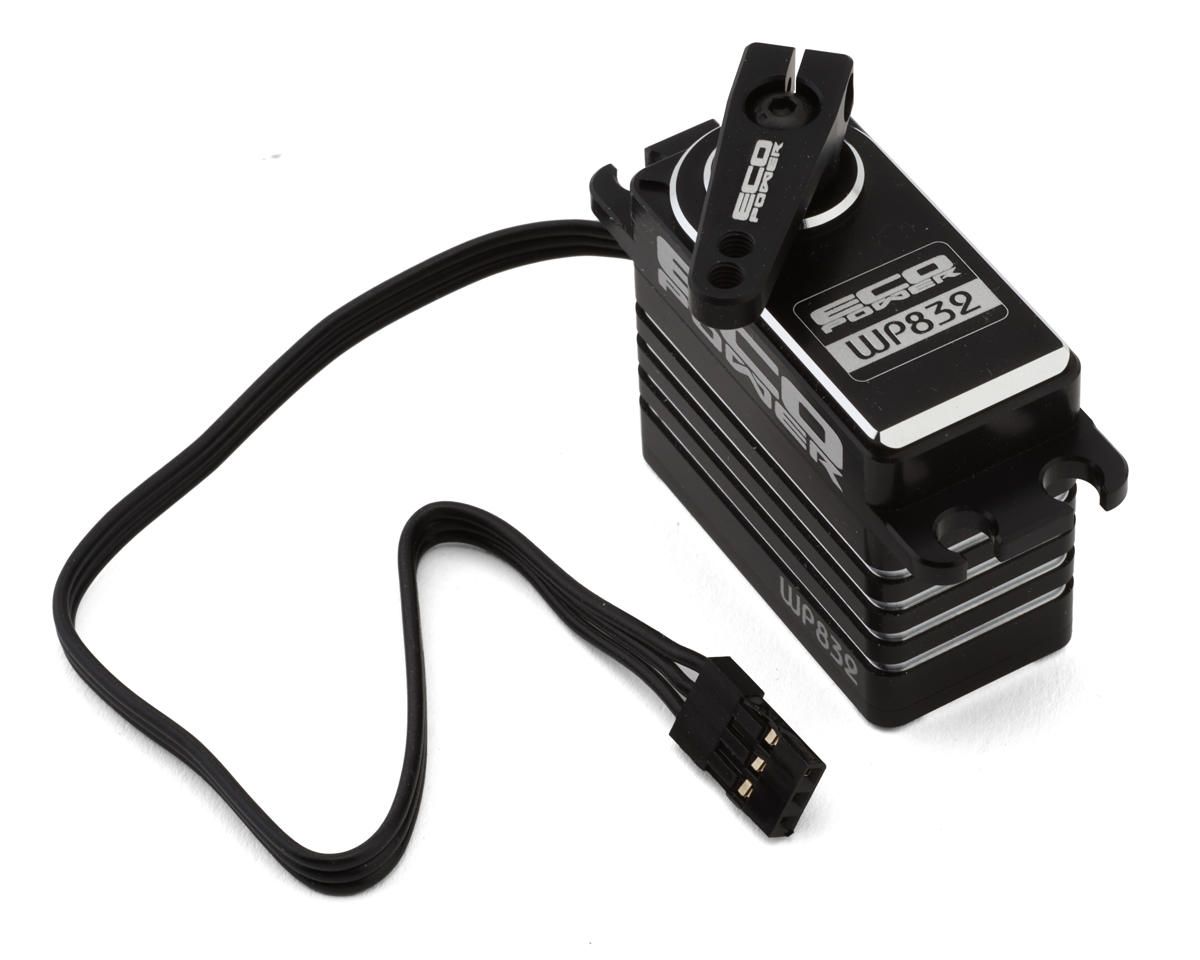

ECP-832 EcoPower 832 Mid Profile High Torque Brushless Rock Crawling/Bashing Servo (HV) (Waterproof) (Metal Case)

EcoPower 832 Mid Profile High Torque Brushless Rock Crawling/Bashing Servo

A mid-profile brushless steering servo. Recommended for rock crawlers and scalers. Torque: 832oz-in (59.9 kg-cm) @ 7.4V, 883oz-in (63.5 kg-cm) @ 8.4.0V. Speed: 0.09/60° sec @ 7.4V, 0.08/60° sec @ 8.4V.

Specifications

• Brand: EcoPower
• Part number: ECP-832
• Application: 1:10 Scale
• Operating Voltage: 6.0V - 8.4V
• Operating Temperature: 14° to 140° F (-10 to +60° C)
• Operating Speed @ 7.4V: 0.09/60° sec
• Operating Speed @ 8.4V: 0.08/60° sec
• Dynamic Torque @ 7.4V: 832oz-in (59.9 kg-cm)
• Dynamic Torque @ 8.4.0V: 883oz-in (63.5 kg-cm)
• Motor Type: Brushless Digital
• Output Shaft: 25T
• Gears: Steel
• Weight: 63g
• Pulse/Frequency: 1520s / 333hz
• Dimensions: 39.6x20x40mm
• Length (Bottom to Mount): 24.5mm

Features

• Ideal for bashing and crawling platforms
• Brushless motor
• Waterproof
• High voltage circuitry
• Full steel gears
• Full aluminum black case
• Servo Hardware and grommets

Includes

• (1) 832 Mid Profile High Speed Brushless Servo
• (1) Aluminum clamping servo horn

GOOD TO KNOW

• We ship to your door, or you can pick it up at our Davie or Doral store.
• Ask us in store if you need help choosing the right part for your model.

Product Details

• UPC: 694485083056
