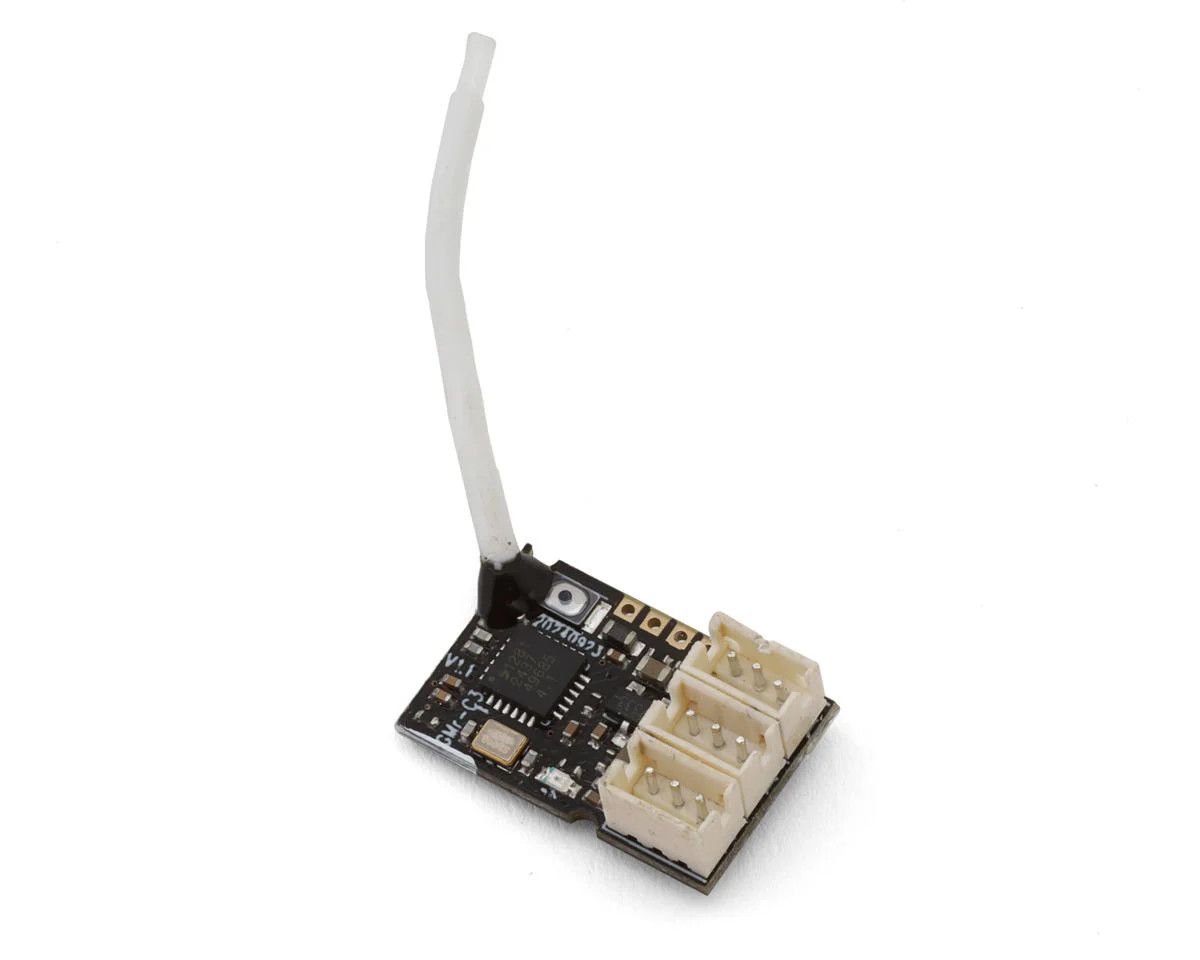

FlySky FS-GMR-C3 GMr-C3 2.4GHz 3-Channel AFHDS 3 Micro Receiver

Brand: FlySky
Part Number: FS-GMR-C3 / FSY-FS-GMR-C3
Model: GMr-C3
Product Type: Micro Surface Receiver
Channels: 3 PWM
Frequency: 2.4GHz
Protocol: AFHDS 3
Application: Micro / Mini RC Cars

The FlySky GMr-C3 2.4GHz 3-Channel Micro Receiver is an ultra-compact and lightweight surface receiver designed for micro and mini RC car applications where space and weight are critical.

Using FlySky's AFHDS 3 protocol, the GMr-C3 provides bidirectional communication, 4096-level channel resolution, and reliable control in an extremely compact package measuring just 19 × 12.5 × 7mm and weighing only 1.3g.

The receiver features three PWM channels, a single external antenna, online firmware update support, and compatibility with the optional FlySky FS-GY01 gyroscope.

KEY FEATURES

• Ultra-Compact Micro Surface Receiver
• 3 PWM Channels
• FlySky AFHDS 3 Protocol
• 2.4GHz ISM Frequency
• Bidirectional Communication
• 4096-Level Channel Resolution
• Compatible with FlySky AFHDS 3 Transmitters
• Compatible with FlySky Noble Series AFHDS 3 Radios
• Supports Optional FS-GY01 Gyroscope
• Single External Silicone Wire Antenna
• PWM Data Output
• 3.5V–9V DC Operating Voltage
• More Than 50m Ground Range Under Open, Interference-Free Conditions
• Online Firmware Update Support
• Extremely Compact 19 × 12.5 × 7mm Size
• Ultra-Lightweight 1.3g
• Ideal for Micro & Mini RC Cars
• FCC, CE & SRRC Certified
• FlySky Model: GMr-C3

SPECIFICATIONS

Model: GMr-C3
Channels: 3 PWM
Frequency: 2.4GHz ISM
Protocol: AFHDS 3
Resolution: 4096 Levels
Operating Voltage: 3.5–9V DC
Data Output: PWM
Range: >50m Ground Range in Open, Interference-Free Conditions
Antenna: Single Silicone Wire Antenna
Dimensions: 19 × 12.5 × 7mm
Weight: 1.3g
Operating Temperature: -15°C to +60°C
Operating Humidity: 20%–95%
Online Update: Yes
Gyroscope Support: FlySky FS-GY01
Certification: CE, SRRC, FCC

COMPATIBILITY

Compatible with:

• FlySky AFHDS 3 Transmitters
• FlySky Noble Series AFHDS 3 Radios
• Micro RC Cars
• Mini RC Cars
• Micro Drift Cars
• Mini Drift & Racing Applications

IMPORTANT: This receiver uses the FlySky AFHDS 3 protocol.

It is NOT compatible with older FlySky AFHDS or AFHDS 2A transmitters unless the transmitter specifically supports AFHDS 3.

Verify your transmitter's supported RF protocol before ordering.

INCLUDES

• (1) FlySky GMr-C3 3-Channel AFHDS 3 Micro Receiver

IMPORTANT

This is the 3-channel GMr-C3 receiver, not the older 4-channel GMr receiver.

The optional FlySky FS-GY01 gyroscope is NOT included and requires installation/soldering when used with the GMr-C3.

Transmitter, gyroscope, servos, ESC, RC vehicle, battery, wiring, tools, and other accessories shown are NOT included unless specifically stated.

Pictures are for reference only.
