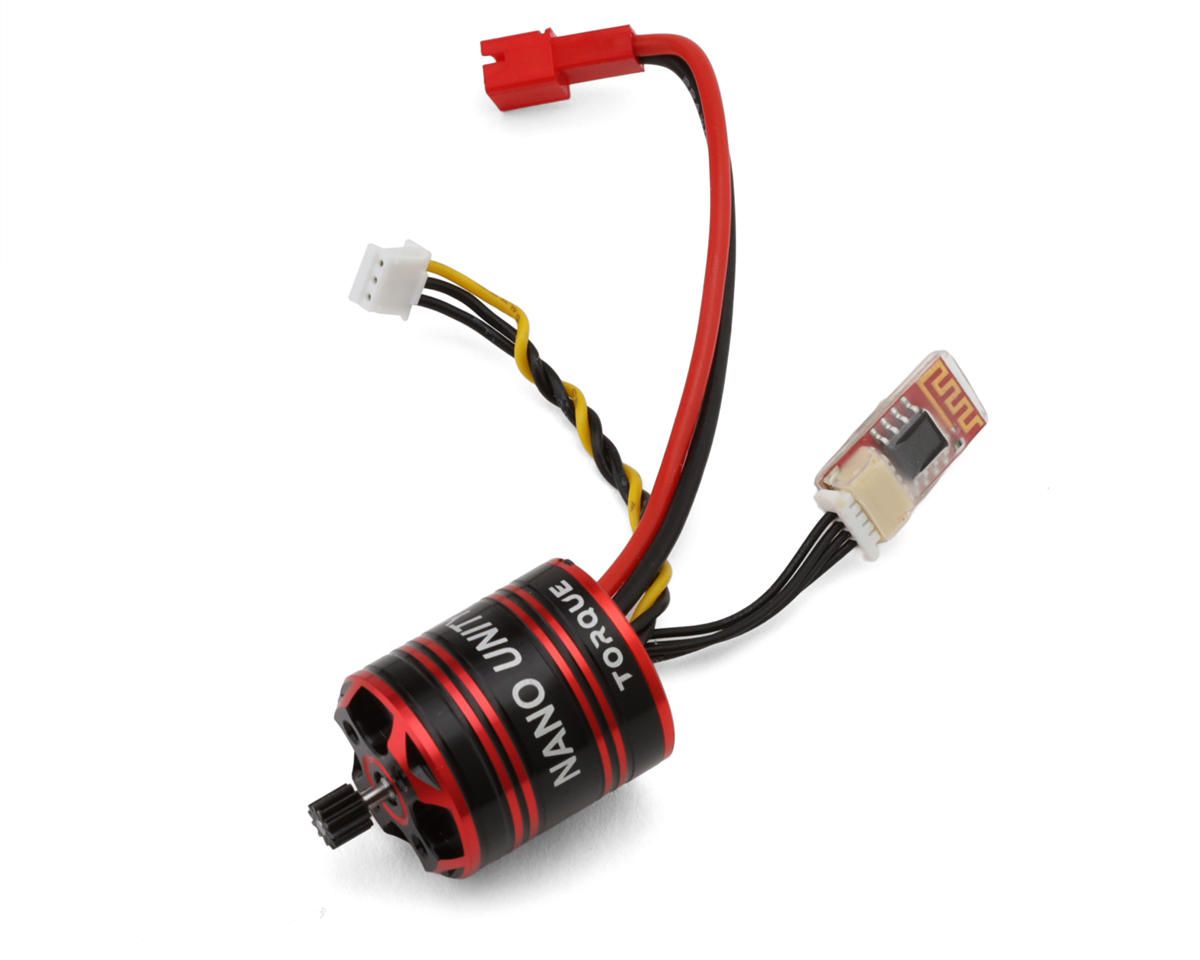

Furitek NANO UNITY TORQUE 2-in-1 FOC ESC & Motor for Axial SCX30

Part Number: FUR-2758 / FTK-FUR-2758

Upgrade your Axial SCX30 with the Furitek NANO UNITY TORQUE, an ultra-compact 2-in-1 brushless power system that integrates the motor and FOC ESC into a single unit.

Designed specifically for the Axial SCX30, the NANO UNITY TORQUE focuses on strong low-end torque, ultra-smooth crawling, precise throttle control, and a clean installation with significantly less wiring than a traditional separate motor and ESC setup.

Direct Bolt-On for Axial SCX30

The NANO UNITY TORQUE is designed to install directly onto the stock Axial SCX30 transmission.

No additional motor adapter or custom motor mount is required.

Its compact integrated design saves valuable chassis space while simplifying installation and wiring.

Features

• True 2-in-1 Brushless Motor & ESC Design
• Designed Specifically for Axial SCX30
• Direct Bolt-On Installation
• Torque-Focused Crawling Performance
• Advanced FOC (Field Oriented Control)
• Ultra-Smooth Low-Speed Throttle Control
• Strong Low-End Torque
• 2S–3S LiPo Compatible
• Built-In Wireless Connectivity
• Furicar App Programming
• Real-Time Telemetry
• Wireless Firmware Updates
• Telemetry Update Rate up to 10Hz
• Integrated 5.5V 3A BEC
• Compact Design for Clean Installation
• Reduced Wiring Compared to Separate ESC/Motor Systems

Wireless Tuning

The NANO UNITY TORQUE features built-in wireless connectivity, allowing direct connection to the Furicar App on compatible iOS and Android devices.

Through the app, users can adjust system parameters, monitor real-time telemetry, and perform wireless firmware updates without requiring an external programming module.

Includes

• (1) Furitek NANO UNITY TORQUE 2-in-1 FOC ESC & Motor
• (1) 11T Pinion Gear
• (1) Signal Adapter Cable
• Built-In Wireless Module

Specifications

• Application: Axial SCX30
• Motor Type: Brushless
• ESC Technology: FOC
• Input Voltage: 2S–3S LiPo
• BEC Output: 5.5V / 3A
• Programming: Furicar App
• Wireless Programming: Yes
• Real-Time Telemetry: Yes
• Firmware Updates: Wireless
• Installation: Direct Bolt-On to Stock SCX30 Transmission
• Included Pinion: 11T

Required to Complete

• Compatible 2S or 3S LiPo Battery
• 2-Channel or Higher Transmitter & Receiver System

ESC signal cable must be connected to Channel 2 (CH2) on the receiver.

⚠️ Important Polarity Notice

If installing or using a DIY battery connector, always verify battery polarity before connecting power.

Reversed polarity can cause immediate and permanent damage to the electronics.

Always verify positive (+) and negative (-) polarity before connecting the battery.
