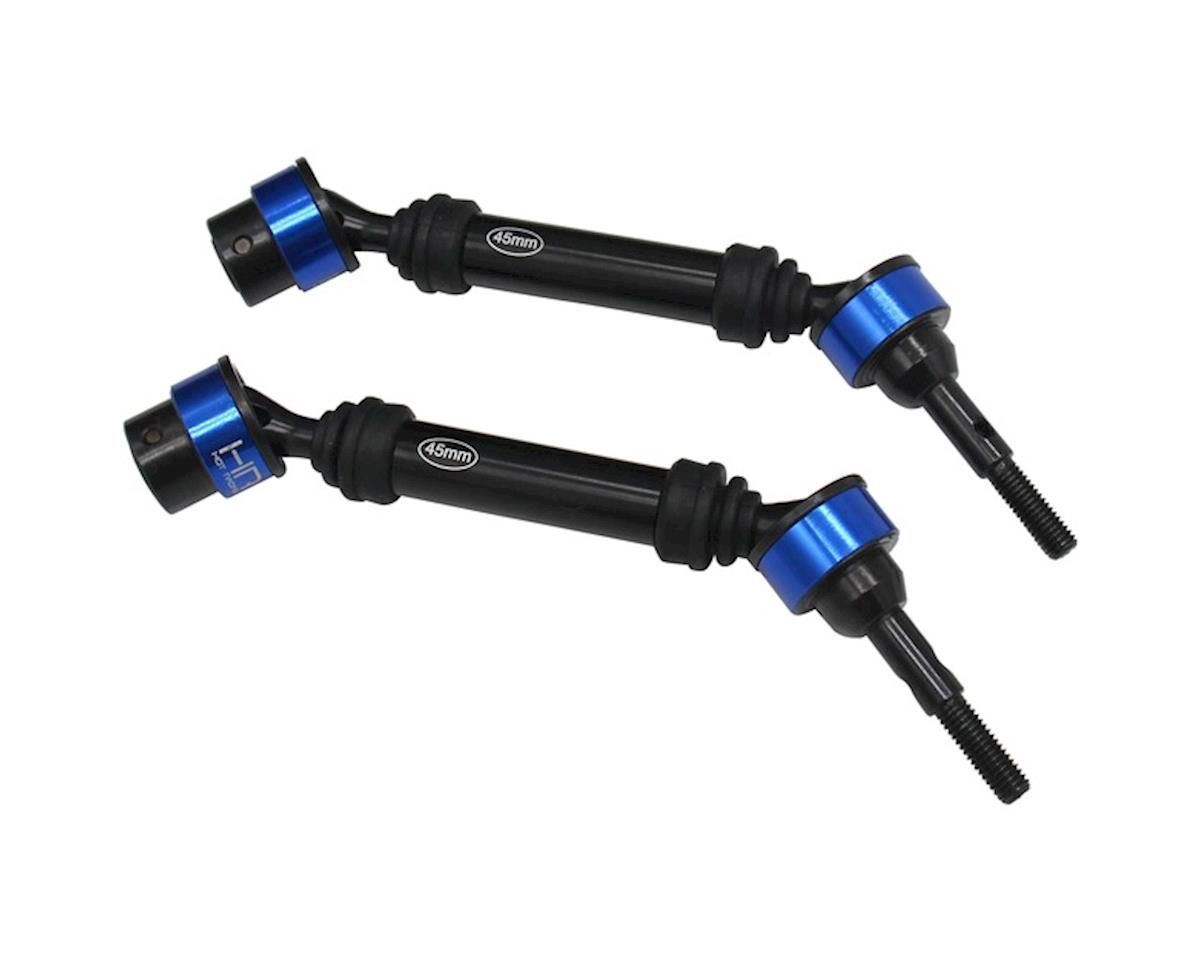

Hot Racing Metal CV Splined Driveshafts Blue FOR Traxxas Maxx (2)

Brand: Hot Racing
Part Number: MXX288RC06 / HRAMXX288RC06
Product Type: Heavy-Duty Metal CVD Driveshaft Set
Position: Front or Rear
Material: Hardened Carbon Steel / Aluminum
Color: Blue Accents
Quantity: 2 Driveshaft Assemblies
Application: Traxxas Maxx

Upgrade your Traxxas Maxx drivetrain with the Hot Racing MXX288RC06 Heavy-Duty Metal CV Splined Driveshaft Set. These CVD-style axles replace the factory front or rear driveshafts with a combination of #45 hardened carbon steel drivetrain components and CNC-machined aluminum slider tubes.

The splined telescoping design allows the driveshafts to move with the suspension while providing a strong drivetrain upgrade for high-power bashing.

Key Features

• Designed FOR Traxxas Maxx
• Heavy-Duty Splined CVD Design
• Fits Front OR Rear
• #45 Hardened Carbon Steel CV Components
• Hardened Steel Drive Hubs
• Hardened Steel Male Slider Splines
• Hardened Steel Stub Axles
• CNC-Machined Aluminum Slider Tubes
• Blue Anodized Aluminum Pin Capture Rings
• Rubber O-Rings Help Keep Capture Rings in Position
• Rubber CV Dust Boots
• Telescoping Splined Design
• Includes 2 Complete Driveshaft Assemblies

Specifications

Overall Collapsed Length: 140mm
Overall Extended Length: 156mm
Wheel Pin to Outdrive Pin, Collapsed: 118mm
Wheel Pin to Outdrive Pin, Extended: 132mm
Quantity: 2

Compatibility

Designed FOR the Traxxas 1/10 Maxx.

IMPORTANT – WideMaxx Fitment

This MXX288RC06 is the shorter version originally designed for the standard/narrow Maxx suspension configuration.

For a Maxx equipped with the Traxxas #8995 WideMaxx Suspension Kit, Hot Racing specifies that this set requires the 65mm center drive tube SLD65T.

For WideMaxx applications, Hot Racing also offers the longer MXX288RCL06, which is specifically sized for the WideMaxx configuration.

Please verify which suspension configuration your Maxx has before ordering.

What's Included

• (2) Hot Racing Metal CV Splined Driveshaft Assemblies

Installation Notes

The stock drive pin and set-screw pin must be reused during installation.

Hot Racing recommends:

• Maintaining the CV joints and shaft splines with grease
• Using medium-strength threadlock on screws that thread into metal
• Periodically inspecting and lubricating the CV joints and splines

Important

This is an aftermarket Hot Racing product designed FOR Traxxas vehicles. It is NOT manufactured by Traxxas.

Two driveshaft assemblies are included. One package is sufficient for either the front pair or rear pair. Two packages would be required to replace all four driveshafts.

Pictures are for reference only. RC vehicle, wheels, suspension components, WideMaxx kit, center drive tube, tools, and other accessories shown are NOT included unless specifically listed above.
