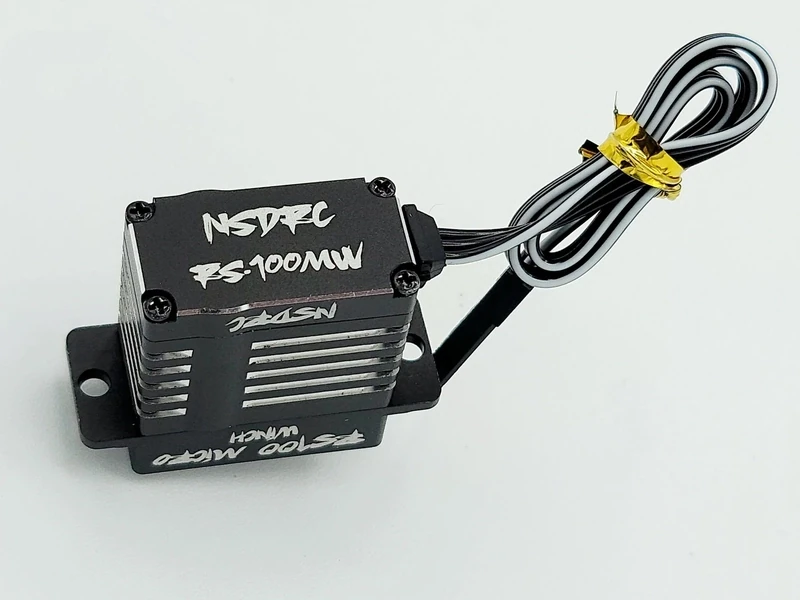

NSD-MWCH RS100 High Torque-Speed Micro Winch

the RS100 has been upgraded! With a new motor and gears, it now has even more power, lower amp draw, and now with a magnetic angle sensor for superior brake/hold!

Comes with our custom Cnc aluminum micro spool

Optional 25T MICRO SPLINE LOW PROFILE WINCH SPOOL

Winch controller built in, no controller needed.

Water Resistant with 7 point O-ring seal.

Operating Voltage: 5v - 8.4v

Torque Speed

6v- 152oz/ 11kg 0.09 @ 6v

7.4v- 175oz/ 12.7kg 0.07 @ 7.4v

8.4v- 197oz/ 14.2kg 0.06 @ 8.4v

Spooling Speed:

8.4v - 2.6 seconds per foot

7.4v - 3.2 seconds per foot

Full Cnc Aluminum Case

Hardened Steel Gears

Magnetic Angle Sensor

High Quality Motor

Spline: 25T 4.9mm Micro

Voltage: 5v-8.4v

Wire Length: 185mm

Weight: .70 oz

Dimensions: 23 x 12 x 26mm

Spool is capable of holding 6ft of winch line

Does not work as steering servo

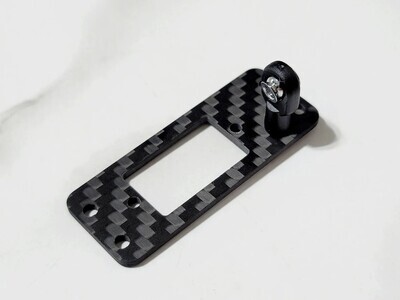

200# Winch Line, Hook, and Adapter Plate available separately

Warranty: 6 Months DIRECTLY WITH THE MANUFACTER

Product Details

• Brand: Nsdrc
• Part #: NSD-MWCH
• UPC: 850053070556
