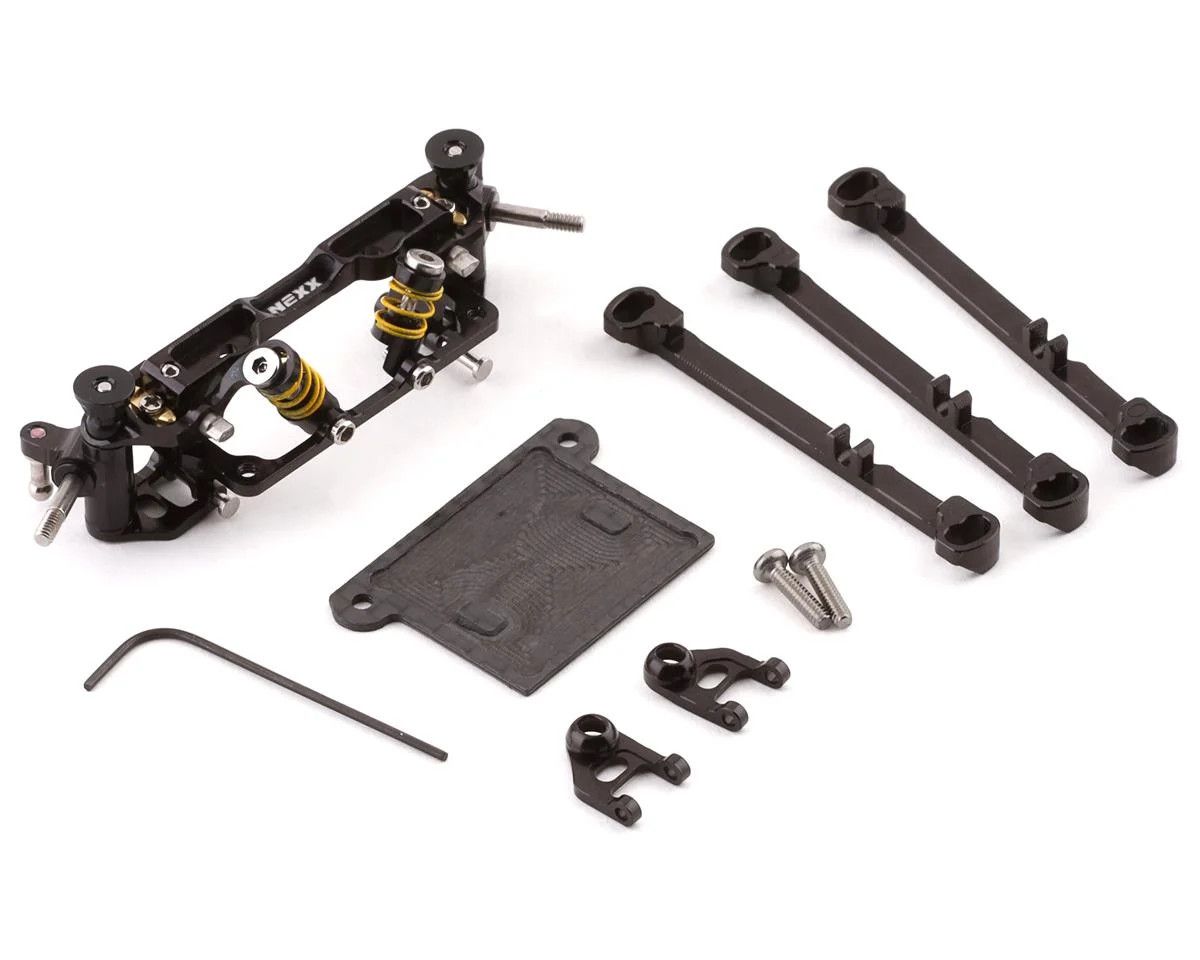

NX-030 NEXX Racing V-Line Front Suspension System (Black)

NEXX RACING V-line Front Suspension system is designed with innovative features such as, quick adjustable camber, and adjustable ride height. When installed onto your Mini-Z not only does it provide aesthetic improvements, but performance improvements as well. Performance increases are thanks to higher speeds due to improved suspension stability, and improved cornering speed. With locknuts and kingpins, V-LINE is designed to minimize most of the play resulting very smooth performance.

NOTE: Requires trimming of the front lower arms and two 2mm holes to be drilled into the front of the chassis. Please refer to the video below.

• V-Line suspension is designed with 2 V-shaped suspension forks to bring you a cool suspension system
• Same width as stock (MR02/MR03/PNR2.5 Chassis )
• Suspension movement use ball joints instead of sliding knuckle and locknut easy adjustment play between knuckle and upper arm make joints will not pop out even during hard collision
• Adjustable camber from 0-3 degrees with 4 position eccentric shaft with easy operation
• Adjustable caster with shims from 1-2 degrees
• Ride height adjustment with turn of a screw
• Tie rods with 0, 0.5, and 1 degree of toe are included
• High quality Precision CNC Swiss 7075 aluminum
