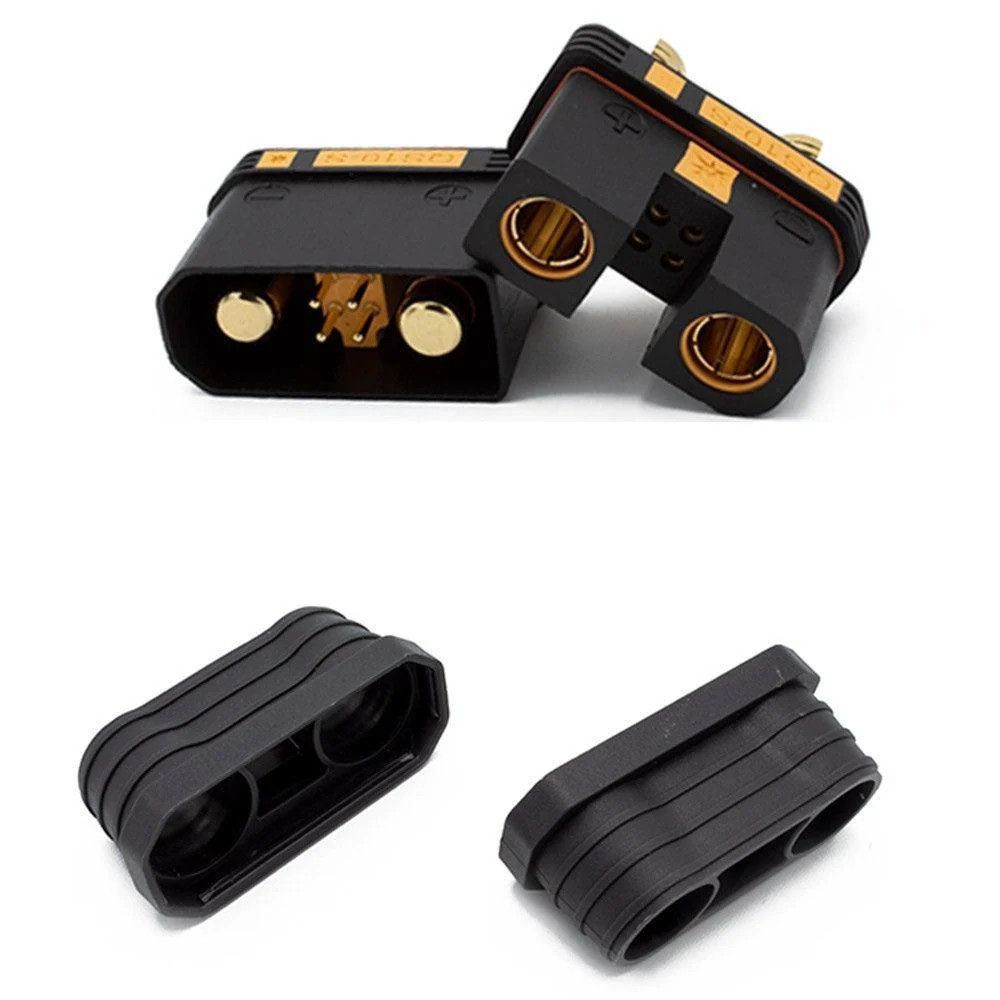

PHB9023 Powerhobby QS10 Anti-Spark Male / Female Connector / Plug Pair

PowerHobby QS10 Anti-Spark Male/Female High-Current Connector Plug Pair – 400A

Part Number: PHB9023

The PowerHobby QS10 Anti-Spark Connector Pair is a heavy-duty, high-current connector system designed for large-scale RC vehicles and extreme high-power electrical applications.

Featuring massive 10mm gold-plated brass contacts, support for wire up to 4 AWG, and a current rating of up to 400A, the QS10 is built for applications where standard RC connectors such as XT90, IC5, or EC5 may not provide sufficient current capacity.

The integrated anti-spark design helps reduce the electrical spark that can occur when connecting high-voltage battery systems.

⚠️ IMPORTANT – EXTRA LARGE CONNECTOR

THIS IS A VERY LARGE HIGH-CURRENT CONNECTOR. PLEASE CHECK THE DIMENSIONS BEFORE ORDERING.

Approximate connector dimensions:

• 48mm × 35mm × 20mm
• 1.89" × 1.38" × 0.79"
• 10mm Bullet Contacts
• Supports Wire Up to 4 AWG

The QS10 is significantly larger than typical RC battery connectors such as XT60, XT90, IC5, EC5, and similar plugs.

PLEASE MEASURE THE AVAILABLE SPACE IN YOUR VEHICLE, BATTERY, ESC, OR PROJECT AND MAKE SURE THIS CONNECTOR WILL FIT YOUR APPLICATION BEFORE PURCHASING.

Features

• QS10 Heavy-Duty Anti-Spark Connector
• Male & Female Connector Pair
• 10mm Gold-Plated Brass Contacts
• Rated Up to 400A
• Supports Wire Up to 4 AWG
• Built-In Anti-Spark Design
• Low-Resistance High-Current Connection
• Heavy-Duty Connector Housing
• Designed for Large-Scale & Extreme-Power RC Applications
• Wire Covers Included

Includes

• (1) Female QS10 Connector – Battery Side
• (1) Male QS10 Connector – ESC / Charger Side
• Connector Wire Covers

⚠️ SOLDERING REQUIRED

THESE CONNECTORS ARE NOT PRE-WIRED. SOLDERING IS REQUIRED.

Due to the large 10mm terminals and high thermal mass, a sufficiently powerful soldering iron and proper soldering equipment are strongly recommended.

Always verify polarity before soldering and before connecting a battery. Reversed polarity can cause immediate and permanent damage to batteries and electronics.

Specifications

• Connector Type: QS10 Anti-Spark
• Contact Size: 10mm
• Current Rating: Up to 400A
• Maximum Wire Size: 4 AWG
• Contact Material: Gold-Plated Brass
• Approx. Dimensions: 48 × 35 × 20mm (1.89 × 1.38 × 0.79")
• Quantity: 1 Male + 1 Female Pair

Important

This connector is intended for extreme high-current applications and is physically much larger than standard RC connectors.

VERIFY CONNECTOR SIZE, AVAILABLE SPACE, WIRE GAUGE, POLARITY, AND APPLICATION COMPATIBILITY BEFORE PURCHASING.
