PTK-215LPT / PTK-140T ProTek RC 140T Low Profile High Torque Metal Gear Servo (High Voltage)

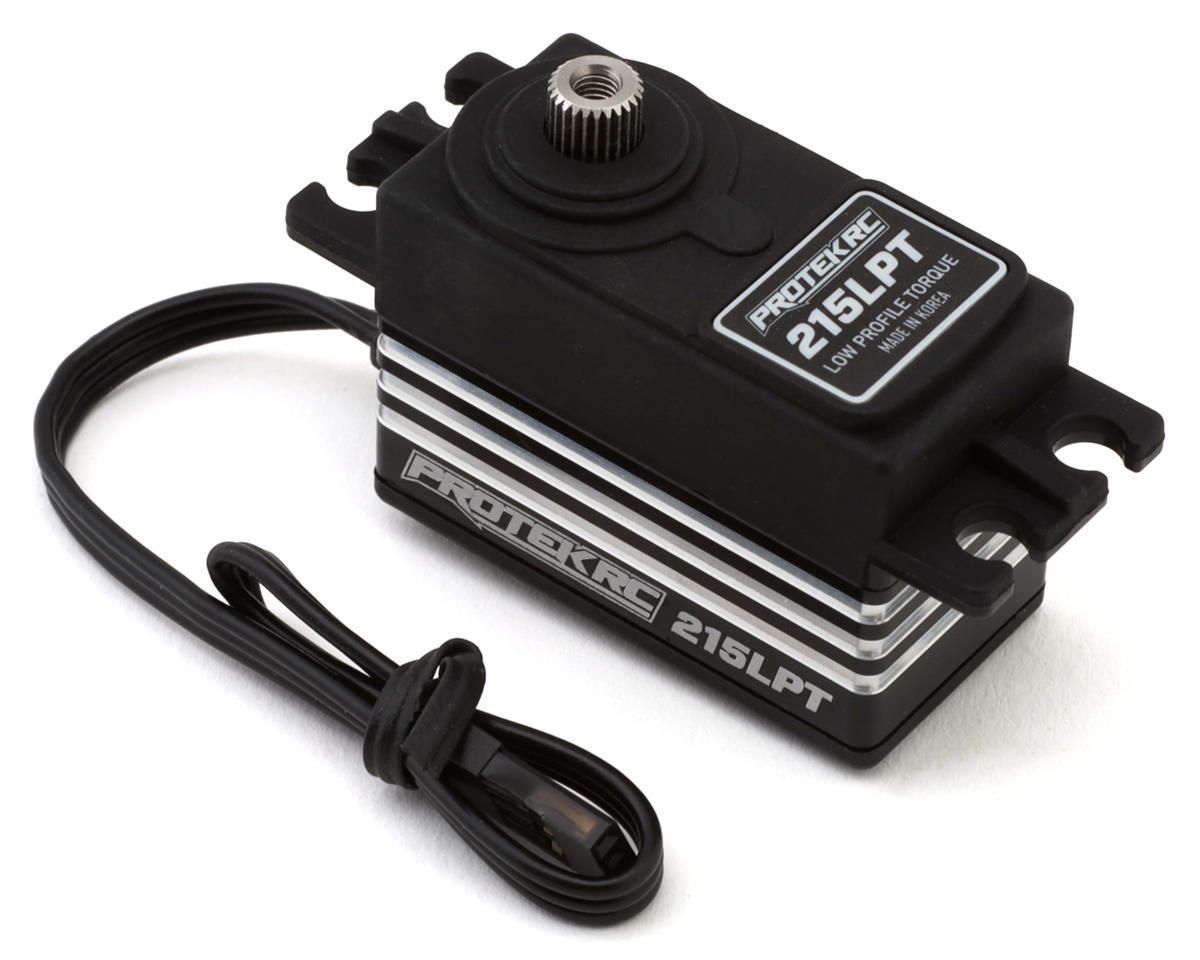

ProTek RC 215LPT Low Profile High Torque Metal Gear Servo (High Voltage)

A low-profile metal-gear steering servo, high-voltage capable for more torque and speed on a 7.4–8.4 V BEC. Recommended for R/C cars and trucks. Torque: 185oz-in (13.3 kg-cm) @ 6.0V, 215 oz-in (15.5 kg-cm) @ 7.4V, 230oz-in (16.6 kg-cm) @ 8.4V. Speed: 0.010/60° sec @ 6.0V, 0.08/60° sec @ 7.4V, 0.07/60° sec @ 8.4V.

Specifications

• Brand: ProTek RC
• Part number: PTK-215LPT
• Application: 1:10 & 1:8 Off-Road
• Operating Voltage: 6.0V - 7.4V
• Operating Temperature: 14° to 140° F (-10 to +60° C)
• Operating Speed @ 6.0V: 0.010/60° sec
• Operating Speed @ 7.4V: 0.08/60° sec
• Operating Speed @ 8.4V: 0.07/60° sec
• Dynamic Torque @ 6.0V: 185oz-in (13.3 kg-cm)
• Dynamic Torque @ 7.4V: 215 oz-in (15.5 kg-cm)
• Dynamic Torque @ 8.4V: 230oz-in (16.6 kg-cm)
• Motor Type: Coreless Motor
• Output Shaft: 25T
• Gears: Metal
• Weight: 1.75oz (49.8g)
• Pulse/Frequency: 1520s / 333hz

Features

• Low-profile design saves space and reduces weight
• Up to 230 oz-in of torque at 8.4V for strong steering power
• Ultra-fast 0.07-second transit speed for quick response
• Full metal gear train provides lasting durability
• Dual ball bearings deliver smooth and precise operation
• Aluminum center case helps improve heat dissipation
• High-voltage circuitry supports increased performance output
• Perfect choice for 1/10 off-road and on-road racing
• Coreless motor delivers efficient and reliable performance
• Servo Hardware and Grommets

Includes

• (1) 215LPT Low Profile Metal Gear Servo
