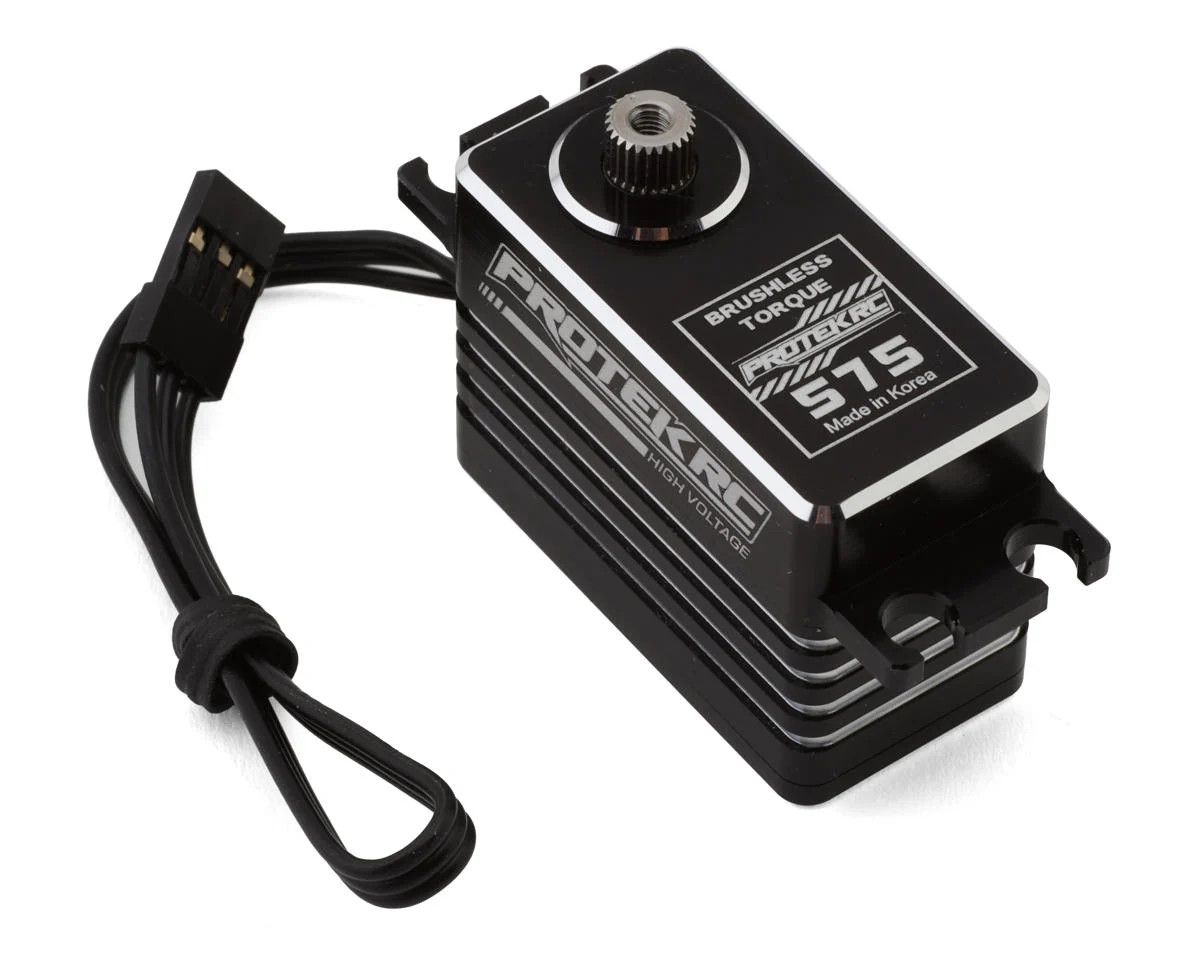

PTK-575 ProTek RC 575 Low Profile High Torque Brushless Servo (High Volt / Metal Case)

ProTek RC PTK-575LP High-Performance Brushless Low Profile Racing Servo

Speed. Precision. Endurance.

The ProTek RC PTK-575LP is a low-profile, brushless racing servo engineered for serious 1/10-scale competition. Designed for high-speed on-road and off-road applications, it combines the speed and responsiveness of premium coreless servos with the efficiency, torque, and reliability of brushless motor technology. Housed in a full black anodized aluminum case with integrated heat sink, this servo offers rugged durability, reduced weight, and clean aesthetics—all while delivering over 575 oz-in of torque at 8.4V.

Key Features:

• Brushless digital motor for superior power, longer lifespan, and higher efficiency
• Low profile form factor ideal for 1/10 touring cars and off-road buggies
• Full steel gear train for extreme durability under racing stress
• Black anodized aluminum case with integrated heat sink for optimal thermal management
• High-voltage capable (6.0V–8.4V) for performance builds
• Includes aluminum clamping servo horn and mounting hardware

Performance Specs:

• Operating Voltage: 6.0V – 8.4V
• Speed @ 7.4V: 0.06 sec/60°
• Speed @ 8.4V: 0.055 sec/60°
• Torque @ 7.4V: 511 oz-in (36.7 kg-cm)
• Torque @ 8.4V: 575 oz-in (41.4 kg-cm)
• Motor Type: Brushless Digital
• Output Shaft: 25T
• Pulse/Frequency: 1520µs / 333Hz

Dimensions:

• Size: 39.5 x 20 x 30.4 mm
• Bottom to Mounting Tabs: 19 mm
• Weight: 63g

Applications:

• 1/10 Scale Touring Cars
• 1/10 Scale 2WD & 4WD Off-Road Buggies
• Builds requiring precise weight distribution and fast servo response

What’s Included:

• (1) ProTek 575LP High-Speed Brushless Low Profile Servo
• (1) Aluminum clamping single-arm servo horn
• Mounting hardware and grommets

Built for racers who demand speed, strength, and reliability.
