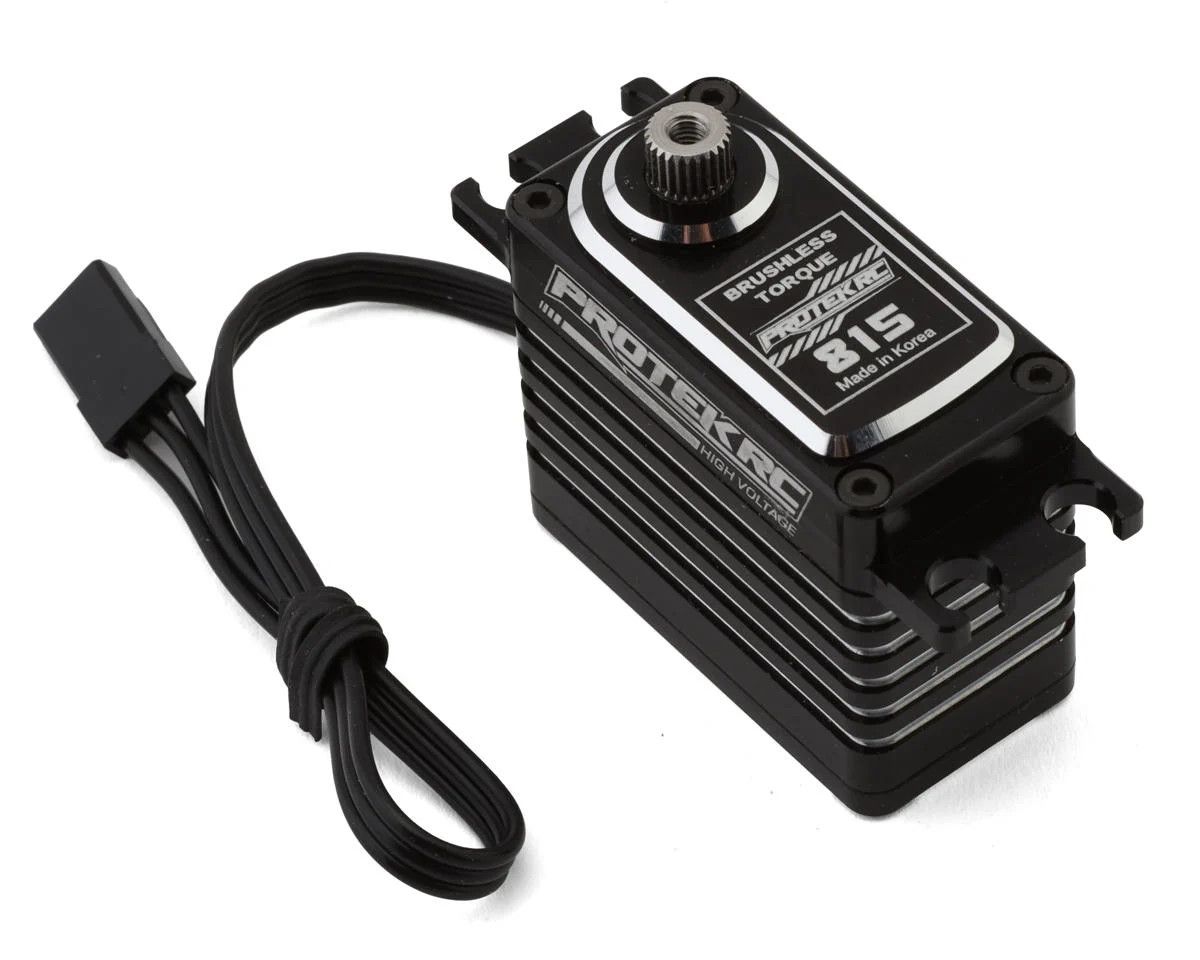

PTK-815 ProTek RC 815 Mid Profile High Torque Brushless Servo (High Volt / Metal Case)

ProTek RC 815MP Mid Profile High Performance Brushless Racing Servo

Mid Profile. Maximum Torque. Pro-Level Control.

The ProTek RC PTK-815MP delivers cutting-edge brushless power in a mid-profile design, offering exceptional performance for 1/10 off-road buggies. Built for racers who demand high torque, fast response, and precise control, this servo delivers it all—713 oz-in at 7.4V and 815 oz-in at 8.4V, with blazing fast transit speeds and pro-grade durability.

Its mid-profile size allows better electronics placement and weight distribution compared to standard full-size servos, helping you unlock superior handling and balance.

🔧 Key Features

• Mid-profile design for optimized chassis layout and better ESC placement
• Brushless digital motor for extreme torque, fast response, and longer lifespan
• Black anodized full aluminum case with heat sink center section for thermal control
• Steel gears and dual ball bearings for maximum durability
• High-voltage compatible (up to 8.4V)
• Includes aluminum clamping single-arm servo horn + mounting washers and hardware
• Ideal for 1/10 scale off-road racing platforms

⚙️ Performance Specifications

• Operating Voltage: 6.0V – 8.4V
• Speed @ 7.4V: 0.055 sec/60°
• Speed @ 8.4V: 0.050 sec/60°
• Torque @ 7.4V: 713 oz-in (51.3 kg-cm)
• Torque @ 8.4V: 815 oz-in (58.7 kg-cm)
• Motor Type: Brushless Digital
• Gear Type: Steel
• Output Shaft: 25T spline
• Pulse/Frequency: 1520µs / 333Hz

📐 Dimensions

• Size: 39.5 x 20 x 35.75 mm
• Bottom to Mounting Tabs: 24.3 mm
• Weight: 64g

Application Advantage

The mid-profile format is ideal for 1/10 off-road buggies, offering more room for electronics and improved balance—translating to better cornering, consistency, and agility on demanding tracks.

Now available at Goat Hobbies – power, precision, and control in a perfectly balanced mid-profile design.

Built for champions. Engineered for race day.

Product Details

• Brand: ProTek RC
• Part #: PTK-815
• UPC: 694485083025
