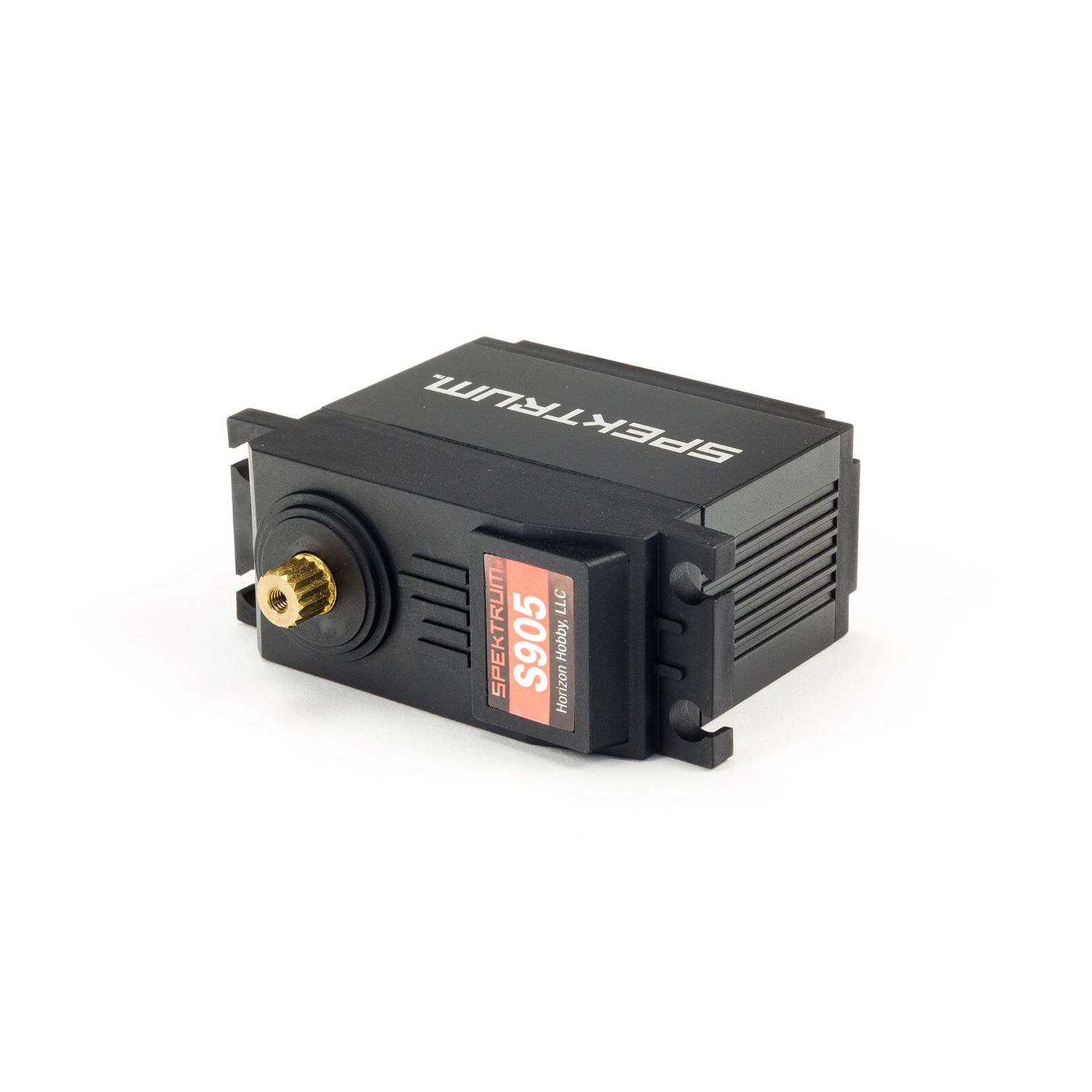

S905 Large Scale WP Servo 15T

Spektrum S905 40KG Waterproof Metal Gear Large Scale Surface Servo – 15T

Part Number: SPMS905
Brand: Spektrum
Spline: 15-Tooth
Application: 1/5 & 1/6 Scale Surface RC
Gear Type: Metal Gear
Waterproof: Yes

The Spektrum S905 40KG Waterproof Metal Gear Surface Servo is a high-torque steering servo designed for demanding large-scale 1/5 and 1/6 RC cars and trucks.

With over 537 oz-in of torque at 6V and up to 555.5 oz-in at 7.2V, the S905 provides the steering power needed for large, heavy vehicles operating on rough terrain. Its metal gear drivetrain, waterproof construction, and 15-tooth output spline make it an excellent replacement servo for compatible ARRMA, Axial and Losi large-scale vehicles.

Application / Compatibility

Factory replacement or compatible application for select:

• ARRMA Kraton 8S
• ARRMA Kraton 8S EXB
• ARRMA Outcast 8S
• ARRMA Outcast 8S EXB
• Axial SCX6 Jeep JLU Wrangler
• Axial SCX6 Trail Honcho
• Losi Super Rock Rey
• Select other compatible 1/5 & 1/6 scale surface vehicles

Compatibility varies by model and generation. Always verify SPMS905, servo dimensions and the 15T spline before purchasing.

Features

• High-Torque Large-Scale Surface Servo
• 40KG Class Servo
• Waterproof Construction
• Heavy-Duty Metal Gears
• 15-Tooth Output Spline
• Designed for 1/5 & 1/6 Scale Vehicles
• Over 537 oz-in Torque at 6V
• Up to 555.5 oz-in Torque at 7.2V
• Strong Steering Performance for Heavy RC Vehicles
• Genuine Spektrum Replacement Servo

Performance Specifications

At 6.0V

• Torque: 537.72 oz-in
• Speed: 0.20 sec

At 7.2V

• Torque: 555.50 oz-in
• Speed: 0.18 sec

Dimensions

• Length: 2.34 in / 59.5mm
• Width: 1.14 in / 29mm
• Height: 2.17 in / 55.2mm
• Spline: 15T

Includes

• (1) Spektrum S905 40KG Waterproof Metal Gear Surface Servo

⚠️ IMPORTANT – 15T SPLINE / LARGE SCALE SERVO

THIS SERVO USES A 15-TOOTH OUTPUT SPLINE.

Do not assume that a standard 23T, 24T or 25T servo horn will fit.

Also note that this is a large-scale servo. Verify the servo dimensions, mounting dimensions, spline type, operating voltage and compatibility with your vehicle before purchasing.

Important

THIS LISTING IS FOR ONE SPEKTRUM SPMS905 S905 SERVO ONLY.

Servo horn, vehicle, receiver, BEC, mounting hardware and other accessories are NOT included unless specifically supplied in the package.

Pictures are for reference only.
