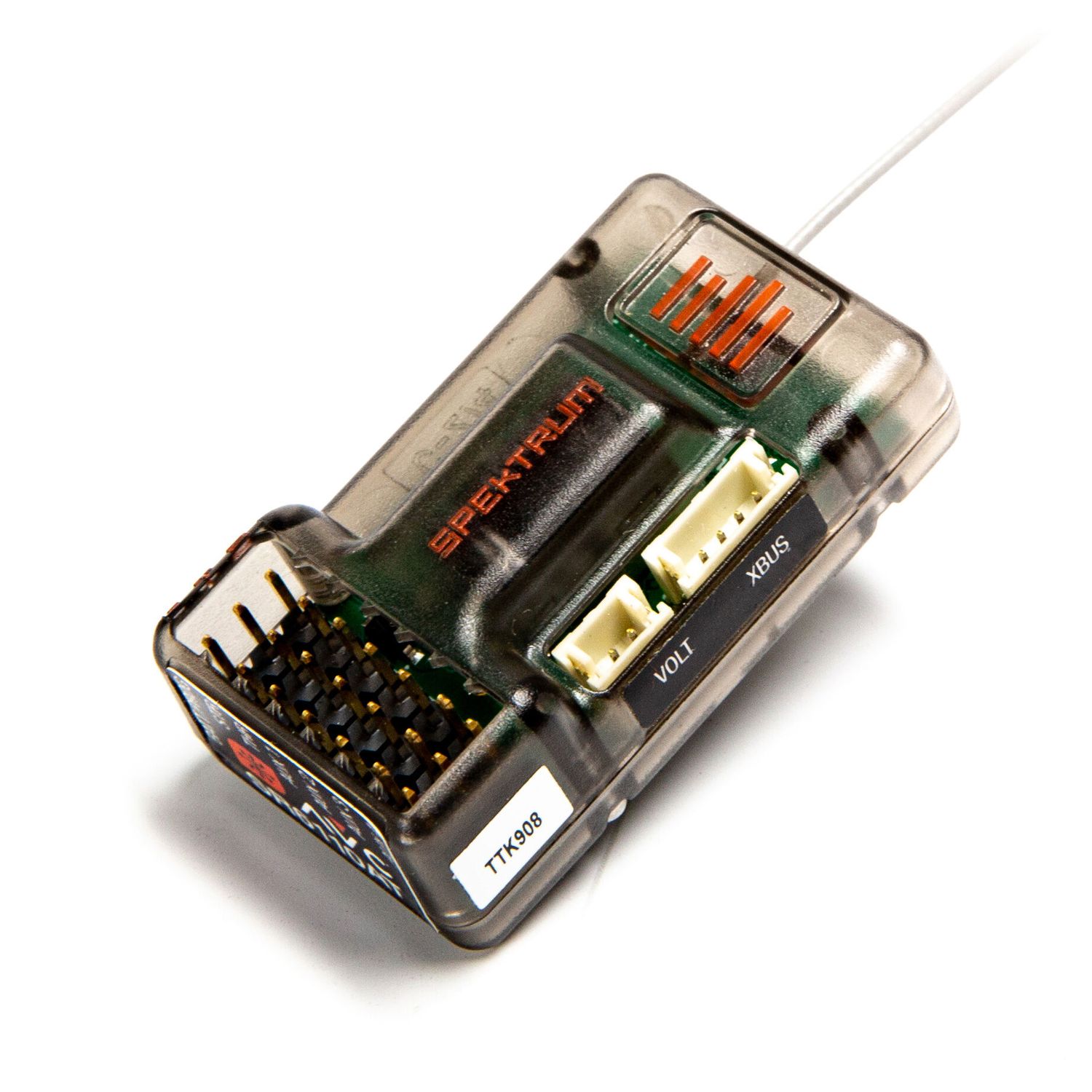

Spektrum SPMSR6110AT SR6110AT 6-Channel DSMR AVC Smart Telemetry Surface Receiver

Spektrum SR6110AT DSMR 6-Channel AVC Telemetry Surface Receiver

Part Number: SPMSR6110AT
Model: SR6110AT
Brand: Spektrum
Channels: 6
Modulation: DSMR / DSM2
Type: Surface Receiver

The Spektrum SR6110AT 6-Channel AVC Telemetry Surface Receiver is a full-range receiver designed for RC cars, trucks, speed-run vehicles, bashers, and compatible marine applications.

With 6 channels, AVC stability control, Smart Throttle support, and full-range telemetry capabilities, the SR6110AT is an excellent choice for vehicles that need additional channels for accessories such as lights, shift servos, and other auxiliary functions.

Its AVC algorithm is specifically tuned for stunt driving, speed runs, and bashing, helping drivers manage slides, drifts, and vehicle stability while maintaining steering control.

Features

• 6-Channel DSMR / DSM2 Surface Receiver
• Spektrum AVC Active Vehicle Control
• Full-Range Operation
• Full-Range Telemetry Capability
• Smart Throttle Compatible
• Automatically Detects Compatible Spektrum Smart ESCs
• Two Integrated Telemetry Ports
• Adjustable AVC Stability
• AVC Can Be Turned Off
• Steering Priority
• AVC Auto Calibration
• 9" Extra-Long Antenna
• Bind Button
• Voltage Sensor Data Port
• Voltage Sensor Included
• Water-Resistant Realkote Protective Coating
• Designed for RC Cars, Trucks & Compatible Marine Applications
• Compatible with DSMR / DSM2 Surface Transmitters

Smart Throttle & Telemetry

When connected to a compatible Spektrum Firma Smart ESC, the SR6110AT Smart Throttle port can receive telemetry information through the normal throttle connection.

With compatible Spektrum Smart electronics, battery and transmitter, telemetry information such as battery voltage and ESC temperature can be transmitted back to a telemetry-capable Spektrum DSMR transmitter.

A standard ESC can also be connected to the throttle port, in which case it operates as a conventional receiver channel.

AVC Technology

Spektrum AVC (Active Vehicle Control) helps manage vehicle stability by making automatic steering and throttle corrections.

The SR6110AT features AVC tuning specifically designed for:

• High-Speed Driving
• Speed Runs
• Bashing
• Stunt Driving
• Managing Drifts & Slides
• More Predictable Forward/Reverse Transitions

AVC assistance is adjustable and can also be disabled when desired.

Specifications

Channels: 6
Modulation: DSMR / DSM2
Frequency: 2404–2476MHz
Input Voltage: 3.5–9.6V
Range: Full Range
Telemetry: Yes
Data Port: Yes
Bind Method: Bind Button
Water Resistance: Yes
Antenna Length: 9" / 229mm

Dimensions:
1.70 × 0.94 × 0.59 in
42.4 × 23.9 × 15.1mm

Weight:
0.35 oz / 10g

⚠️ IMPORTANT – TRANSMITTER COMPATIBILITY

The receiver is compatible with Spektrum DSMR surface transmitters. To use AVC functionality, an AVC-compatible transmitter is required.

Telemetry functions require a compatible telemetry-capable Spektrum DSMR transmitter and appropriate telemetry-compatible electronics.

⚠️ DIGITAL SERVOS REQUIRED FOR AVC

When using AVC, Spektrum specifies that digital servos are required.

Using analog servos with AVC can reduce system performance and may cause the servos to overheat.

⚠️ MARINE APPLICATIONS

The SR6110AT can be used in compatible marine applications; however, Spektrum recommends disabling AVC when used in boats or marine vehicles.

Includes

• (1) Spektrum SR6110AT 6-Channel AVC Telemetry Receiver
• (1) Voltage Sensor
• Documentation

Important

THIS LISTING IS FOR ONE SPEKTRUM SPMSR6110AT RECEIVER WITH INCLUDED VOLTAGE SENSOR ONLY.

Transmitter, servos, ESC, battery, vehicle, telemetry accessories, and other electronics are NOT included unless specifically stated otherwise.

Please verify radio-system compatibility and required features before purchasing.

Pictures are for reference only.
