SPM-1055 SPMSR1015T 10ch DSMR+ Receiver
SKU SPM-1055
$79.99
In stock
Have questions?
SPM-1055 SPMSR1015T 10ch DSMR+ Receiver
Product Details
Spektrum SR1015T 10-Channel DSMR+ Receiver Introduction
The Spektrum SR1015T surface receiver is compatible with DSMR and DSMR+ that expands surface channel use to 10 channels. DSMR+ makes more channels available than ever before for Spektrum surface enthusiasts. When matched with a DSMR+ capable transmitter, driver can unlock more options than ever before for your crawler, or basher vehicle. The SR1015T is Smart technology ready providing real-time telemetry data when used with Smart ESCs and Smart batteries. In addition to Smart technology, the SR1015T features other integrated telemetry ports that are compatible with Spektrum transmitters.
Spektrum SR1015T 10-Channel DSMR+ Receiver Features
- 10-Channel DSMR / DSMR+ Surface Receiver
- Water-Resistant
- Full-range telemetry capabilities with Spektrum Firma Smart ESC
- Long antenna suited for low to the ground vehicles and other applications
- Compatible with all DSMR and DSMR+ Surface transmitters
- Bind-button eliminates the need for a bind plug
- Lightweight hard case

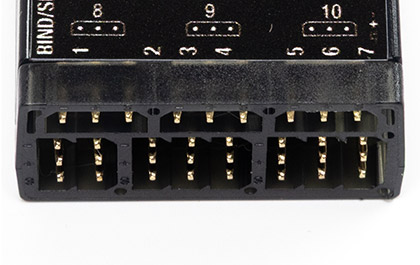

- End pin output pins for easy and compact installation

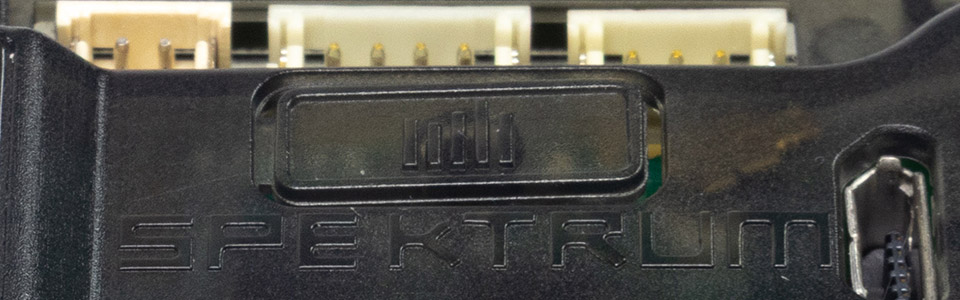

- Micro USB port for firmware updates utilizing the Spektrum PC programmer application
Smart Telemetry
The SR1015T receiver throttle port includes Smart Throttle. This port will automatically detect when a Smart throttle electronic speed control is plugged in and the throttle port will begin to operate in Smart throttle mode. When combined with Spektrum Smart LiPo batteries with IC series connectors can pass along battery data from compatible Spektrum Smart batteries. If a standard ESC or servo is plugged into the throttle port on the SR1015T receiver, the throttle port will operate normally like any conventional receiver.
10-Channels
10 channels allow for more flexibility and versatile control for auxiliary systems such as winches, lights, overdrive, ESC auxiliary, dig, etc.
Bind Button
The SR1015T top-located button makes binding more convenient than ever while two bind-sequence options make the process simpler by allowing you to bind while powering up or after receiver power is connected.
Specifications
- Antenna Length
- 6.75" (171 mm)
- Application
- Surface
- Band
- 2.4GHz
- Bind Method
- Bind Button, Bind Plug
- Channels
- 10
- Failsafe
- Yes
- Forward Programming
- Yes
- Input Voltage
- 3.5–9V
- Modulation
- DSMR+ / DSMR
- Product Height
- 1.93" (49 mm)
- Product Length
- 1.18" (30 mm)
- Product Weight
- 0.63 oz (18 g)
- Product Width
- 0.59" (15 mm)
- Range
- Full
- Resolution
- 2048
- Technology
- DSMR Protocol, DSMR+
- Telemetry
- Yes
- Water-Resistant
- Yes
