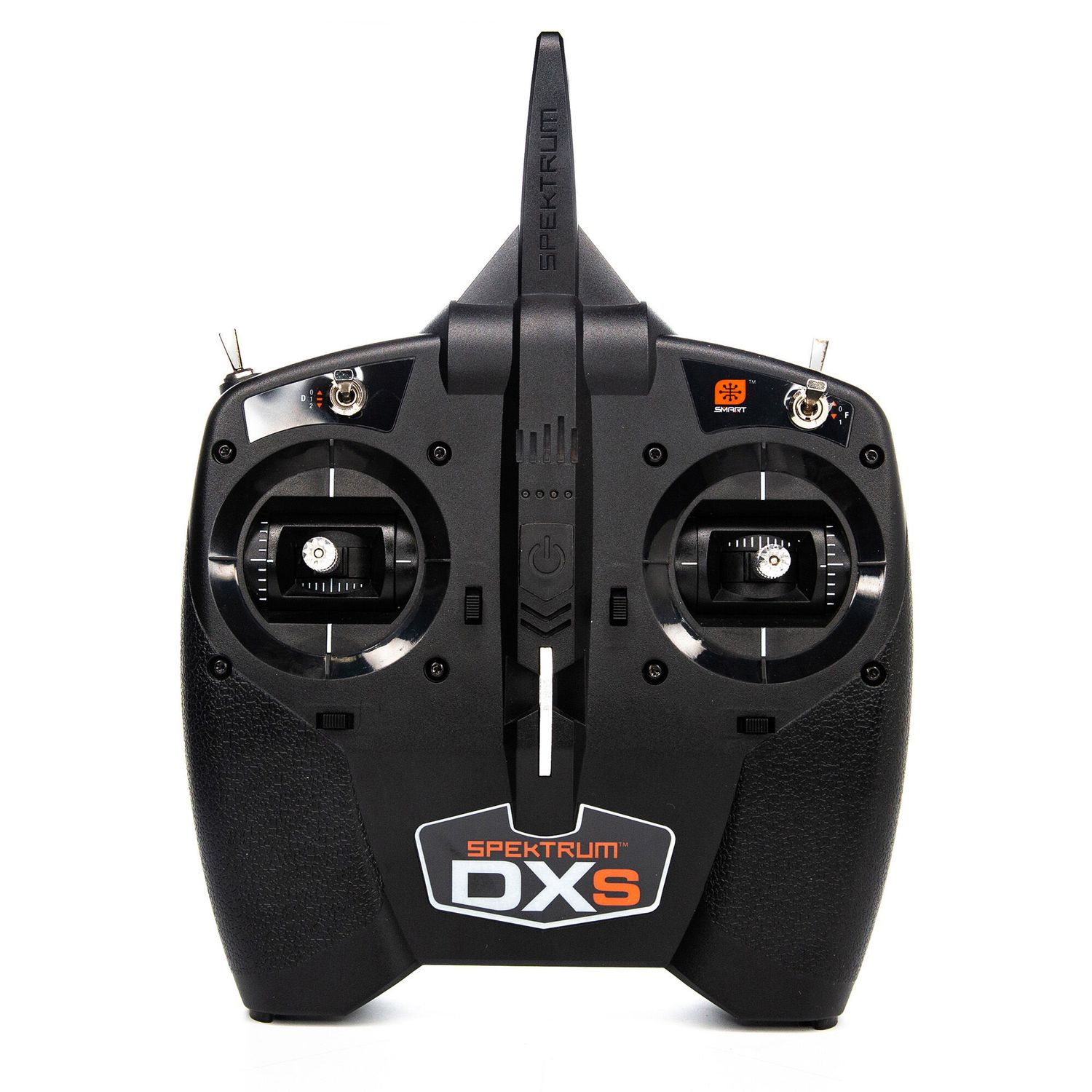

SPMR1010 DXS Transmitter Only

In The Box

• (1) Spektrum™ DXS 7-channel DSMX® Radio Transmitter
• (1) USB Serial Adapter (Spektrum USB Programmer not included)
• (1) Product Manual

Needed to Complete

• (4) AA Alkaline Transmitter Batteries
• (1) Compatible 4+ Channel DSMX Receiver

Features

• Supports Spektrum™ Smart Technology for Smart ESC and Smart LiPo battery telemetry
• Transmitter LEDs display Smart LiPo flight battery status for easy voltage monitoring — an industry first!
• Proven ergonomic design is optimized for comfort and precise, fatigue-free control
• Offers wireless trainer system capability with optional SRXL2™ DSMX® Remote Receiver (available separately)

• Registration and updates are possible through a PC with optional USB Programming Cable (available separately)
• Transmitter comes configured to provide the benefits of SAFE® technology with compatible SAFE-equipped receivers
• DXS is fully compatible with other Spektrum™ DSMX® systems
• The DXS is also available as a transmitter and receiver combo, with an AR410 4-Channel Receiver

Overview

For any RC flight enthusiast looking to strike the perfect balance between economy and innovative, high-end features the 7-channel Spektrum™ DXS radio can combine with a DMSX receiver of your choice to create the ideal system. It offers full range control, secure DSMX® interference resistance, advanced telemetry capabilities, and proven transmitter ergonomics for fatigue-free flying. The simplified setup of the DXS also gets you into the air faster, with less time needed for preparation and programming.

DSMX® TECHNOLOGY

The DXS transmitter is built around proven Spektrum™ DSMX® 2.4GHz frequency-agile technology — the most advanced spread spectrum RC technology to date. By adding the agility of unique frequency shifts to the superior interference resistance of a wideband signal, and by limiting those shifts to a smaller portion of the 2.4GHz band, DSMX transmitters provide on-channel interference protection that's second to none.

ERGONOMIC DESIGN

Weight distribution, switch placement and trim switch positions have been optimized for comfort and fatigue-free control. An integrated handle and neck strap hook are included for easy carrying. Ports are provided in the rear battery compartment for using optional wireless trainer and data port. The SRXL2™ DSMX® Remote Receiver (available separately) is required for wireless trainer support. Registration and firmware updating are possible from your PC by downloading the software from the DXS product page at SpektrumRC.com and using the USB Programming Cable (available separately).

FLIGHT PACK VOLTAGE MONITOR

Get essential flight battery status information at a glance from the DXS transmitter when using it with Smart Avian™ ESCs and Smart LiPo batteries (sold separately). Four green LEDs on the front of the transmitter communicate the flight battery voltage level. In normal operation with a Smart ESC and Smart battery, only one of the LEDs will glow if the battery is low. Two illuminate to indicate a half-charged battery, three light if the battery is between half and full charge, and all four shine when the flight battery is fully charged.

Application

Aircraft

Audio

None

Band

2.4GHz

Bind Method

Bind Button

Channels

7

Color Screen

No

Completion Level

Transmitter Only

Frame Rate

22ms, 11ms

Gimbal Type

Potentionometer with bushing

Left / Right Hand Operation

No

Modes

Mode 2

Modulation

DSMX

Operating System

Not Applicable

Programmable

No

Range

Full

Receiver

Sold Separately

Serial Port

No

Technology

SAFE

Telemetry

Yes

Touchscreen

No

Transmitter (Tx) Battery Type

4 AA alkaline

Type

Aircraft radio

Water-Resistant

No

WiFi

No
