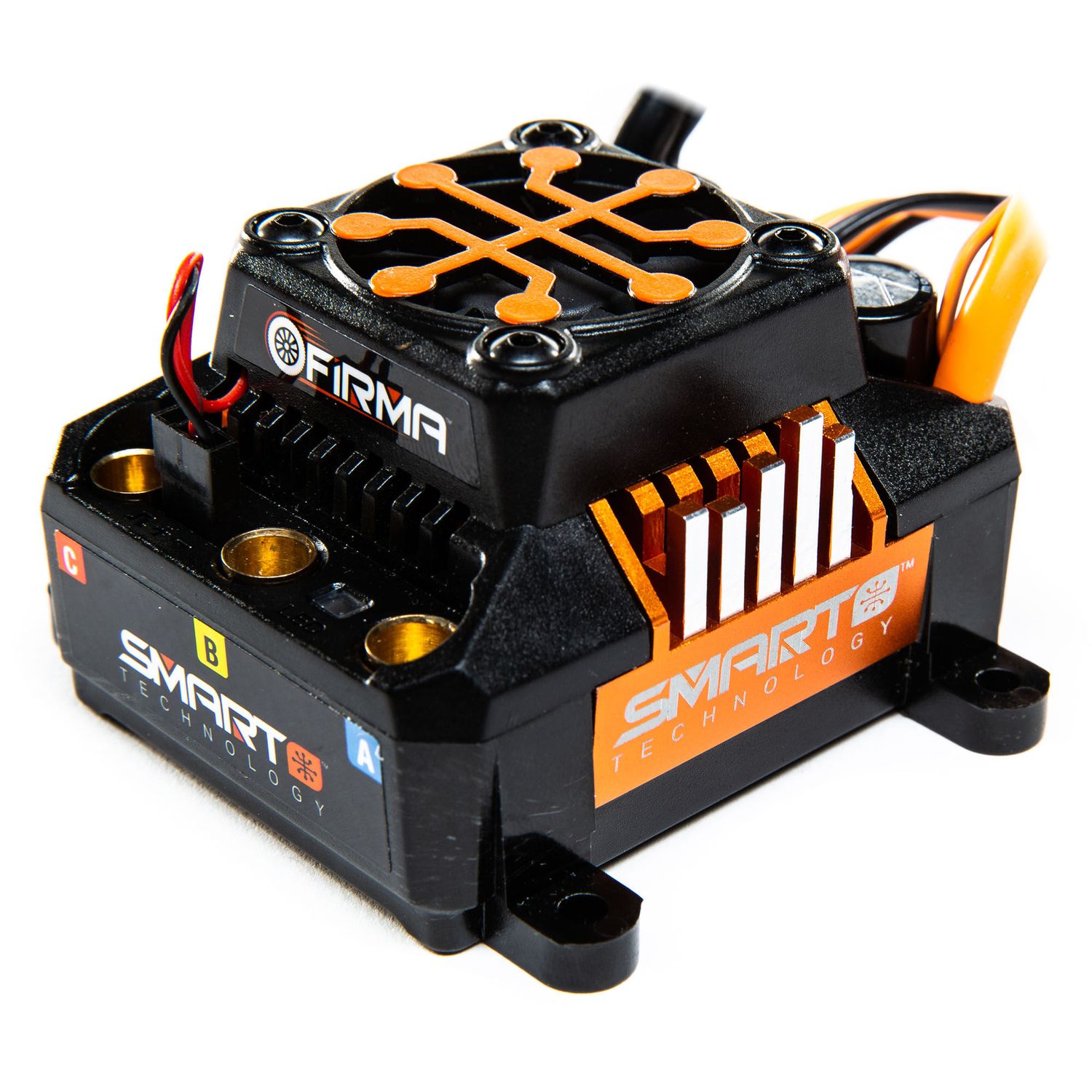

SPMXSE1160 Firma 160 Amp Smart ESC 3S - 8S

Spektrum Firma 160A Brushless Smart ESC 3S–8S – Dual IC5

Part Number: SPMXSE1160

The Spektrum Firma 160A Smart Brushless ESC is a high-power 3S–8S LiPo electronic speed control designed for large-scale and high-performance RC surface applications. With 160A continuous current, 1050A maximum burst current, Smart telemetry, dual IC5 battery connectors, and waterproof construction, it delivers the power and monitoring capabilities required for demanding brushless setups.

Spektrum Smart technology provides real-time telemetry data including RPM, ESC temperature, battery voltage, and battery capacity when used with compatible Spektrum Smart equipment.

Features

• 160A Continuous Current
• 1050A Maximum Burst Current
• 3S–8S LiPo Compatible
• Sensorless Brushless Motor Support
• Spektrum Smart Technology
• Real-Time Smart Telemetry
• Fast 32-Bit ARM M4 Processor
• IP67 Waterproof Rated
• Dual IC5 Battery Connectors
• EC5 Battery Compatible
• 6.5mm Female Motor Bullet Connectors
• 10AWG Battery Leads
• Adjustable 6V / 8.4V BEC
• Multiple Programming Options
• Low-Voltage Cutoff
• Thermal & Overload Protection
• Forward / Brake / Reverse

Smart Telemetry

• Motor RPM
• ESC Temperature
• Battery Voltage
• Battery Capacity

When paired with compatible Spektrum Smart equipment, the Firma 160A ESC can provide real-time telemetry without requiring multiple additional sensors or modules.

Available telemetry can include:

Full Smart functionality requires compatible Spektrum Smart components.

Includes

• (1) Spektrum Firma 160A Smart Brushless ESC
• (1) Spektrum Smart Sticker Sheet
• (1) Product Manual
• Motor, batteries, receiver, transmitter, and other electronics are NOT included.

Specifications

• Application: RC Surface
• Motor Type: Sensorless Brushless
• Input Voltage: 3S–8S LiPo / 9–24 Cell NiMH
• Continuous Current: 160A
• Maximum Burst Current: 1050A
• Battery Connectors: Dual IC5
• EC5 Compatible: Yes
• Motor Connectors: 6.5mm Female Bullets
• BEC Voltage: 6V / 8.4V Selectable
• BEC Continuous Current: 5A
• BEC Maximum Current: 8A
• Waterproof: IP67 Rated
• Length: 70mm / 2.75"
• Width: 77mm / 3.03"
• Height: 44mm / 1.73"
• Weight: 280g / 9.87 oz

⚠️ Important

• THIS LISTING IS FOR THE ESC ONLY. MOTOR IS NOT INCLUDED.

This is a sensorless brushless ESC. Always verify motor Kv, battery voltage, gearing, connector compatibility, drivetrain capability, and available installation space before use.

The ESC comes factory-equipped with dual IC5 battery connectors, so no battery connector soldering is required when using compatible IC5 or EC5-equipped batteries.

Warranty / Service

Any warranty-related issues or claims must be handled according to Spektrum / Horizon Hobby manufacturer warranty and service policies.

Please retain your original proof of purchase, as it may be required for manufacturer service.

Product Details

• Brand: Spektrum
• UPC: 605482429174
