SPMXSE1160CP Firma 160 Amp Smart ESC with Capacitor 3S - 8S

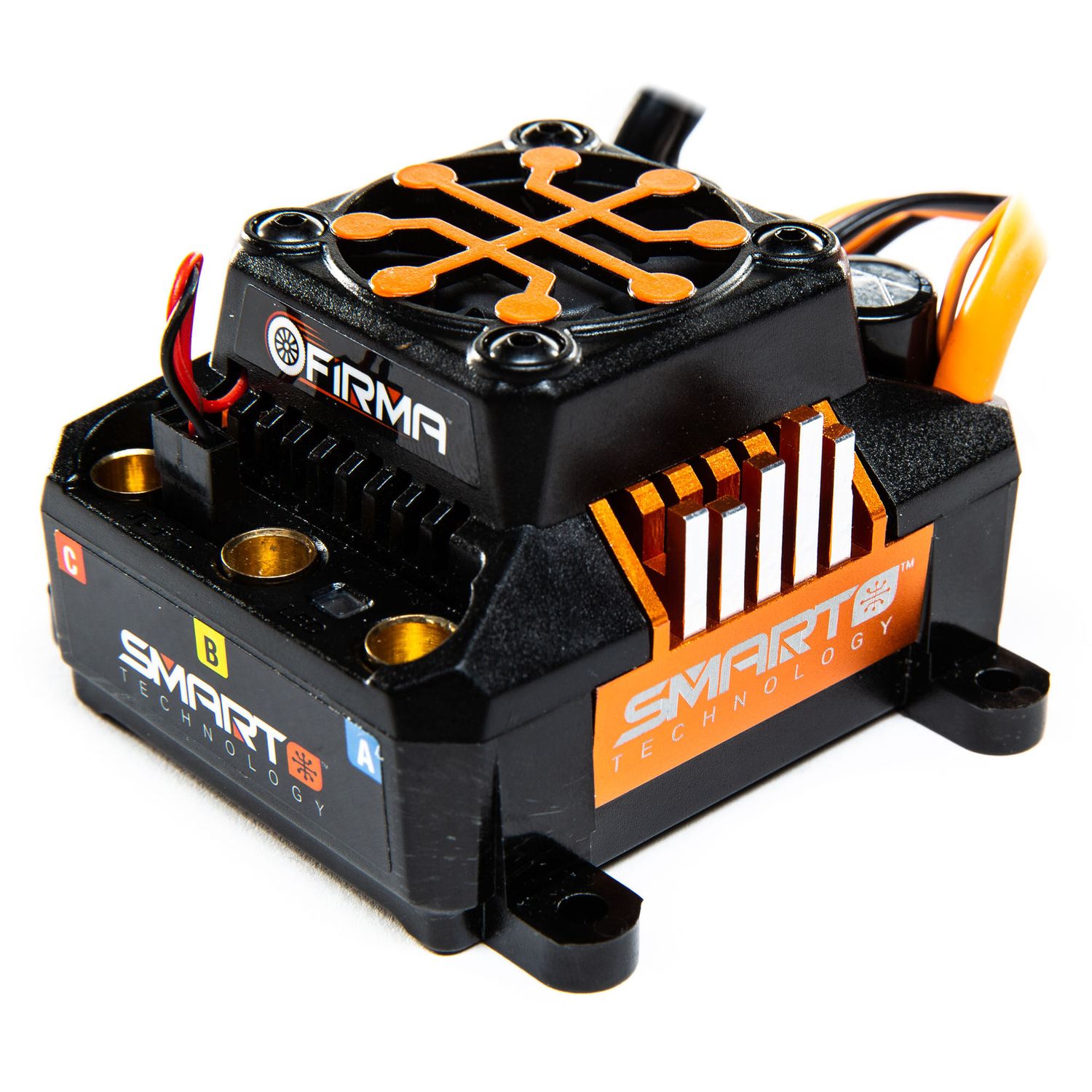

Spektrum Firma 160A Smart ESC with Capacitor 3S–8S

Part Number: SPMXSE1160CP

The Spektrum Firma 160A Smart ESC with Capacitor is a high-power 3S–8S LiPo brushless electronic speed control designed for demanding RC surface applications, including large-scale bashers and high-speed setups.

This CP version includes an additional inline capacitor pack that helps smooth voltage and current spikes, providing additional ESC protection in high-output applications. Spektrum specifically highlights it for 8S speed-run and basher vehicles.

Features

• 160A Continuous Current
• 1050A Maximum Burst Current
• 3S–8S LiPo Compatible
• Sensorless Brushless Motor Support
• Spektrum Smart Technology
• Real-Time Smart Telemetry
• Additional Inline Capacitor Pack
• 32-Bit ARM M4 Processor
• IP67 Waterproof Rated
• Dual IC5 Battery Connectors
• EC5 Battery Compatible
• 6.5mm Female Motor Bullet Connectors
• 10AWG Battery Leads
• Adjustable 6V / 8.4V BEC
• Cooling Fan
• Multiple Programming Options
• Firmware Upgradeable
• Low-Voltage Cutoff
• Over-Current Protection
• Thermal Protection
• Failsafe Protection
• Ready to Install – No Soldering Required

Smart Telemetry

• When used with compatible Spektrum Smart equipment, the Firma 160A provides real-time telemetry through a single-wire connection, including:
• Motor RPM
• ESC Temperature
• Battery Voltage
• Battery Capacity
• Full Smart telemetry functionality requires compatible Spektrum Smart components.

Includes

• (1) Spektrum Firma 160A Smart ESC
• (1) Inline Capacitor Pack
• Factory-Installed Dual IC5 Battery Connectors
• Factory-Installed 6.5mm Motor Connectors
• Motor, batteries, transmitter, receiver, and other electronics are NOT included.

Specifications

• Application: RC Surface
• ESC Type: Sensorless Brushless
• Input Voltage: 3S–8S LiPo
• Continuous Current: 160A
• Maximum Burst Current: 1050A
• Battery Connectors: Dual IC5
• EC5 Compatible: Yes
• Battery Wire: 10AWG
• Motor Connectors: 6.5mm Female Bullets
• BEC: 6V / 8.4V Selectable
• BEC Continuous Current: 5A
• BEC Maximum Output: 8A
• Waterproof: IP67 Rated
• Length: 70mm / 2.75"
• Width: 77mm / 3.03"
• Height: 44mm / 1.73"
• ESC Weight: 280g / 9.87 oz

⚠️ IMPORTANT – ESC ONLY

• THIS LISTING IS FOR THE ESC WITH INLINE CAPACITOR PACK. MOTOR IS NOT INCLUDED.

The ESC comes equipped with Dual IC5 battery connectors and 6.5mm motor connectors, making it ready for installation with compatible equipment without soldering.

Always verify motor Kv, battery voltage, gearing, connectors, drivetrain capabilities, and available installation space before use.

Product Details

• Brand: Spektrum
• UPC: 605482495353
