Ultra Power UPTUP7 UP7 Dual Port AC 200W DC 400W 10A 1-6S LiPo Smart Charger

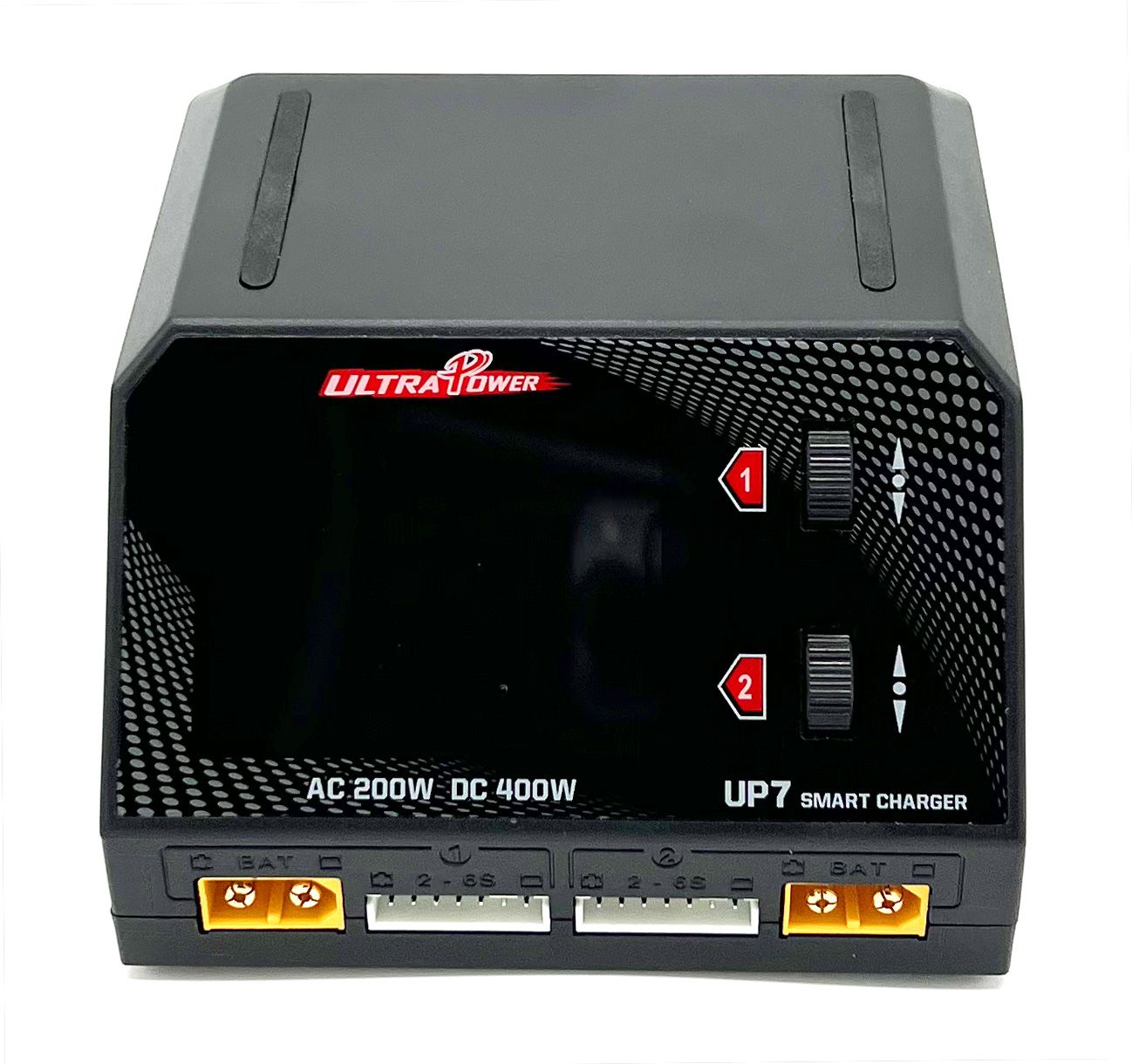

Ultra Power UP7 Dual Port 400W 10A Multi-Chemistry AC/DC Smart Charger

Part Number: UPTUP7
Model: UP7
Brand: Ultra Power
Type: Dual Port AC/DC Smart Charger / Discharger / Balancer

The Ultra Power UP7 Smart Dual Channel AC/DC Charger is a powerful and versatile charger designed for RC and hobby enthusiasts. Its two independent charging channels allow you to charge two battery packs simultaneously, with up to 10A charging current per channel.

The built-in AC power supply provides up to 200W total charging power, while an external DC power source can unlock up to 400W total output — 200W per channel.

Independent channels with power distribution allow the available charging power to be allocated between channels for efficient charging of different battery packs.

Key Features

• Dual Independent Charging Channels
• Charge Two Batteries Simultaneously
• Up to 10A Charging Current Per Channel
• 200W Maximum Total Output on Built-In AC Power
• 400W Maximum Total Output on External DC Power
• Up to 200W Per Channel on DC
• Supports Power Distribution Between Channels
• Integrated Balance Ports
• Up to 1000mA/Cell Balance Current
• Multi-Chemistry Battery Support
• Large 2.4" 320 × 240 IPS Color Display
• AC 100–240V Worldwide Input
• DC 9–32V Input
• Internal Battery Discharge Capability
• Supports Optional External High-Power Discharging
• Compatible with Ultra Power UP-D200 External Battery Discharger
• Compact Desktop Design

Supported Battery Types

• LiPo: 1–6S
• LiHV: 1–6S
• LiFe: 1–6S
• Li-Ion: 1–6S
• NiMH: 1–16 Cells
• NiCd: 1–16 Cells
• Lead Acid / Pb: 2–24V

Specifications

Input Voltage:
AC 100–240V
DC 9.0–32.0V

Output Voltage:
0.1–30.0V

Charging Current:
0.1–10.0A × 2

Charge Power:
AC Input: 200W Maximum Total (CH1 + CH2)
DC Input: 200W × 2 / 400W Maximum Total

Discharge Current:
CH1: 0.1–2.0A
CH1 External Discharge Mode: 0.1–15.0A
CH2: 0.1–2.0A

Discharge Power:
CH1: 6W Internal / Up to 200W External
CH2: 6W Internal

Balance Current:
Maximum 1000mA per cell

Display:
2.4" 320 × 240 IPS LCD

Dimensions:
100 × 99 × 64mm
3.94 × 3.90 × 2.52 in

Weight:
450g / 15.87 oz / 0.99 lb

⚠️ IMPORTANT – AC 200W / DC 400W

PLEASE NOTE THAT 400W OUTPUT IS NOT AVAILABLE USING THE BUILT-IN AC POWER SUPPLY.

When plugged directly into a standard AC wall outlet:

Maximum total charging power is 200W shared between CH1 and CH2.

To achieve up to:

400W total / 200W per channel

a suitable external DC power source is required and sold separately.

External Discharger Compatibility

The UP7 is compatible with the Ultra Power UP-D200 External Battery Discharger, allowing up to 200W external discharge capability on Channel 1 for users who need to rapidly discharge or cycle battery packs.

UP-D200 is sold separately and is NOT included.

Important

Always verify the correct:

• Battery Chemistry
• Cell Count
• Charge Current
• Charge Voltage
• Balance Connection
• Connector / Charging Lead

before beginning a charge or discharge cycle.

THIS LISTING IS FOR ONE ULTRA POWER UP7 AC/DC SMART CHARGER ONLY.

Batteries, external DC power supply, UP-D200 external discharger, and optional accessories shown in pictures are NOT included unless specifically stated otherwise.

Pictures are for reference only.
