VXS9282X02 STEEL HELICAL SPIRAL GEAR SET W/ ALUMINUM COVER PLATE - TRA 1/16
SKU VXS9282X02
$59.88
If the product you need is not available at the pickup location, you can choose another delivery method at checkout. Note that in-store prices may differ from online prices.
Show 1 more location
In stock
Save this product for later
VXS9282X02 STEEL HELICAL SPIRAL GEAR SET W/ ALUMINUM COVER PLATE - TRA 1/16
Product Details
Hot Racing steel helical spiral differential gear set for TRA 1/16 4X4 vehicles, including the 1/16 E-Revo, 1/16 Slash 4X4, and 1/16 Summit. This set is compatible with the front or rear differentials.
FEATURES:
- CNC machined aluminum and hardened high carbon steel construction
- Aluminum carrier cover plate is anodized red
- Precision machined helical spiral cut gears offer inherently greater
strength and smooth operation than the factory bevel cut gears

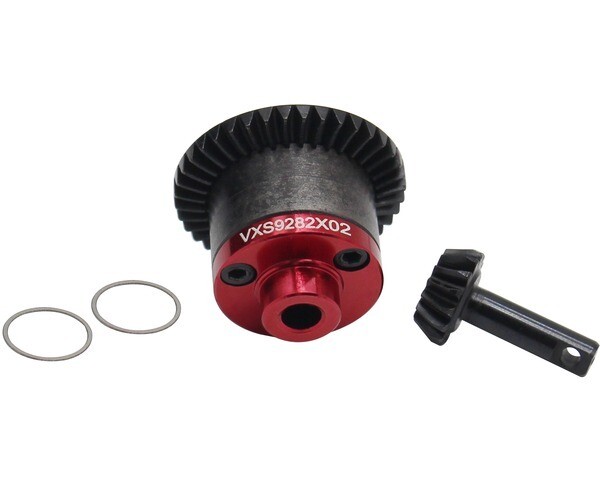

YOU WILL RECEIVE:
- One (1) steel 39T ring gear
- One (1) steel 15T pinion gear
- One (1) aluminum carrier
- One (1) aluminum carrier cover plate
REQUIREMENTS:
- Two sets per vehicle
- Reuses TRA 7082 internal spider and carrier gears, as well as the output shaft seal and outdrives from the original differential
- Installation may require shimming for proper gear mesh. The gears should run freely without too much play and without binding. (If shimming are needed use Hot Racing W4X Shim)
- Use removable thread lock (blue threadlocking compound) on carrier screws
- Differential grease (Spl10G02)
SPECIFICATIONS:
- Carrier width: ~23mm
- Carrier bearing boss diameter: 8mm
- Pinion length: ~19.5mm
COMMENTS:
- Does not include inner differential gears.
- Replaces TRA 7079 ring and pinion and 7080 carrier cover plates (except for the output shaft seal)
- Shimming the differential correctly is an important step in building the perfect differential. If needed more shims may be purchased via Hot Racing part number W8X.
